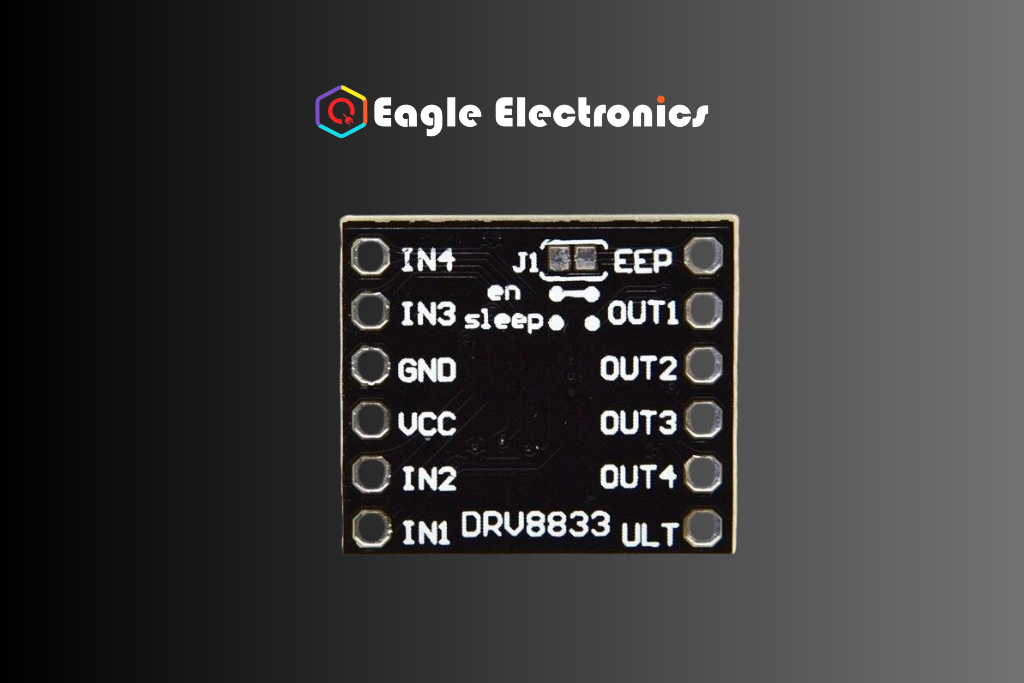

DRV8833 2 Channel DC Motor Driver

DRV8833 is a motor driver integrated circuit that can control two brushed DC motors in both directions. It operates within a voltage range of 2.7 V to 10.8 V. The device can provide a maximum of around 1.2 A per channel continuously and can handle peak currents of up to 2 A per channel for a short period of time. This makes it a suitable driver for small motors that operate on relatively low voltages. The board comes with SMD components already installed, including the DRV8833, and also includes a FET for protection against reverse batteries.

The DRV8833 has a greater maximum current rating (2 A per channel compared to 1.5 A), the possibility for built-in current-limiting, and does not require an externally provided logic voltage.

Specifications

• Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor
• Operating voltage: 2.7‌‌ V to 10.8 V
• Output current: 1.2 A continuous (2 A peak) per motor
• Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor
• Inputs are 3V- and 5V-compatible
• Under-voltage lockout and protection against over-current and over-temperature
• Reverse-voltage protection circuit
• Current limiting can be enabled by adding sense resistors (not included)
• Dimensions (LxWxH MM): 18x2x8mm
• Weight: 5g.
