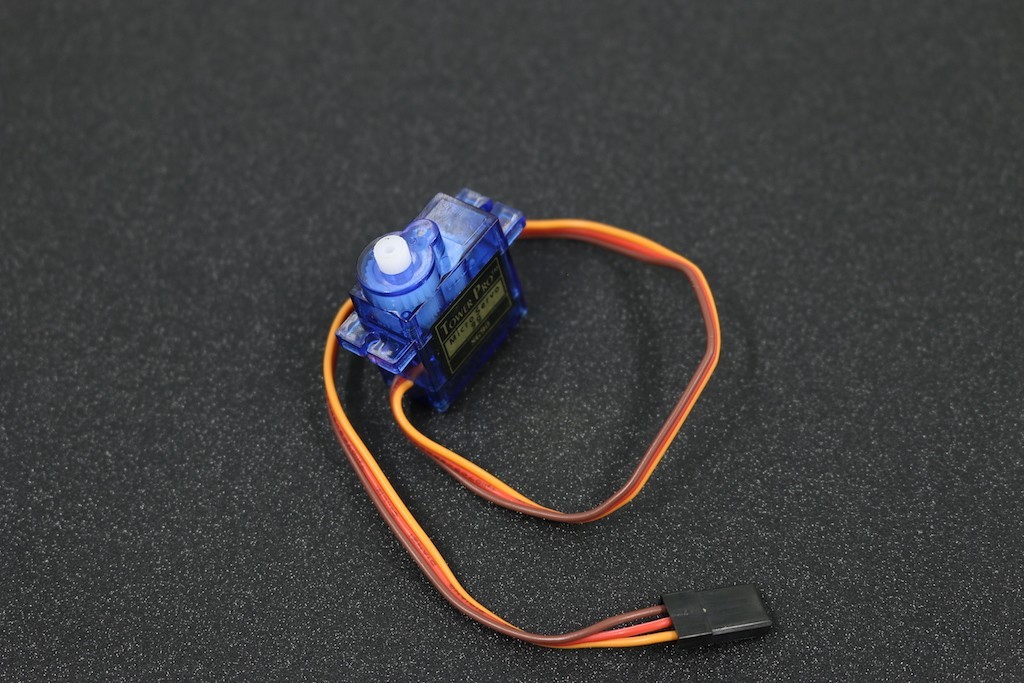

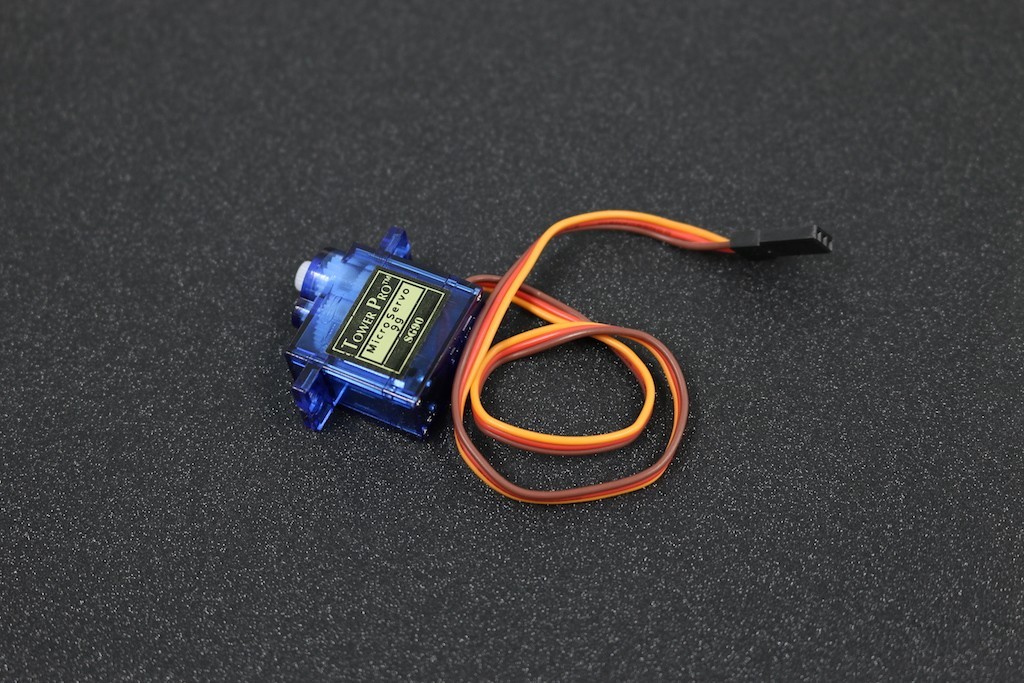

Servo Motor- SG90

The SG90 micro servo is lightweight, high-quality and fast. The servo is designed to work with almost all the radio control systems. It has an excellent performance; The SG90 micro servo with its accessories is perfect for R/C helicopter, plane, car, boat and truck use.

Specifications

• Coreless Motor, All Nylon Gears, Connector Wire Length 150mm, Universal plug for Futaba,Hitec,Spektrum,JR and other popular Radio Systems.
• Dimensions: 22 X 11.5 X 22mm.
• Operating Speed (4.8V no load): 0.12sec/60 degrees.
• Stall Torque (4.8V): 17.5oz/in (1 kg/cm).
• Temperature Range: -30 to +60.
• Degree / Dead Band Width: 7usec.
• Operating Voltage: 3.0-6.0 Volts.

Documents

SG90 Micro Servo Datasheet
