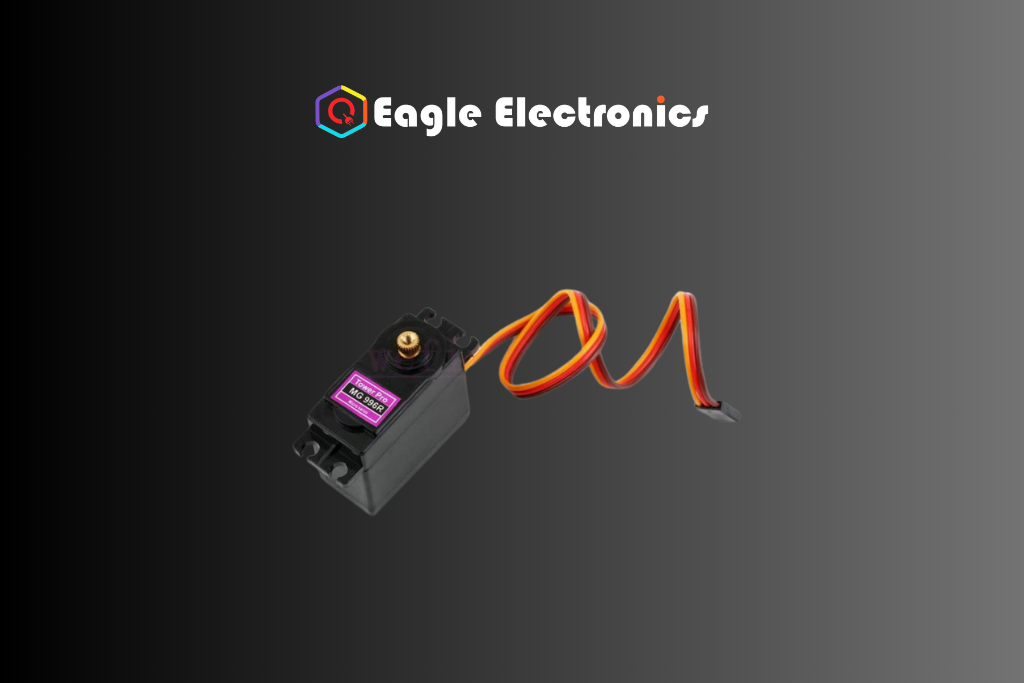

Tower Pro MG996 Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

A metal gearing design gives the Tower Pro MG996 Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) an extra-high 10kg stalling torque in a small package. The MG996 is essentially an improved version of the well-known MG995 servo. It has improved shock-roofing, a new PCB and IC control system, and other improvements that make it significantly more precise than its forerunner. To enhance centering and deadband, the gearing and motor have also been updated. The unit includes a 30 cm long cable and a 3 pin “S” type female header connector that is compatible with the majority of receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec.
Specifications
• Gear Type: Metal gear
• Operating voltage: 4.8 V – 7.2 V
• Running Current 500 mA – 900 mA (6V)
• Stall Current 2.5 A (6V)
• Temperature range: 0 ºC – 55 ºC
• Control System: Analog
• Operating Angle: 180degree
• Required Pulse: 900us-2100us
• Operating speed: 0.19 s/60º (4.8 V), 0.15 s/60º (6 V)
• Dead band width: 1 μs
• Wire length: 30cm
• Connector: 3 pin ‘S’ type female header
• Weight: 55 g
• Dimension: 40.7 x 19.7 x 42.9 mm approx.
• Stall torque: 9.8 kgf·cm (4.8 V ), 11 kgf·cm (6 V)
• Stable and shock proof double ball bearing design
• Dimension: 40.7mm X 19.7mm X 42.9mm
• Weight: 65g
