Name: L293D Motor driver Module
Brand: Eagle Electronics
SKU: EE1209N-C43R1
Availability: InStock

L293D Motor driver Module

Rated 0 out of 5

0 Reviews

In stock

₹180.00

Free shipping on orders above ₹1000.
GST INVOICE is available on all orders.
3D Printing Service Available.
Support: 8124400777

SKU: EE1209N-C43R1

Brand: Eagle Electronics

Product details

L293D Motor driver ModulThis module is a medium power motor driver perfect for driving DC motors and Stepper motors. It uses the popular L293D H-bridge motor driver IC. It can drive 4 DC motors in one direction, or drive 2 DC motors in both the directions with speed control. The driver greatly simplifies and increases the ease with which you may control motors, relays, etc from microcontrollers. It can drive motors up to 12 V with a total DC current of up to 600mA. This board have a feature of onboard 5V regulator 7805.

Specifications

Operating Voltage: 7 V to 12V DC.
4 channel output (can drive 2 DC motors bidirectional).
600mA output current capability per channel.
PTR connectors for easy connections.

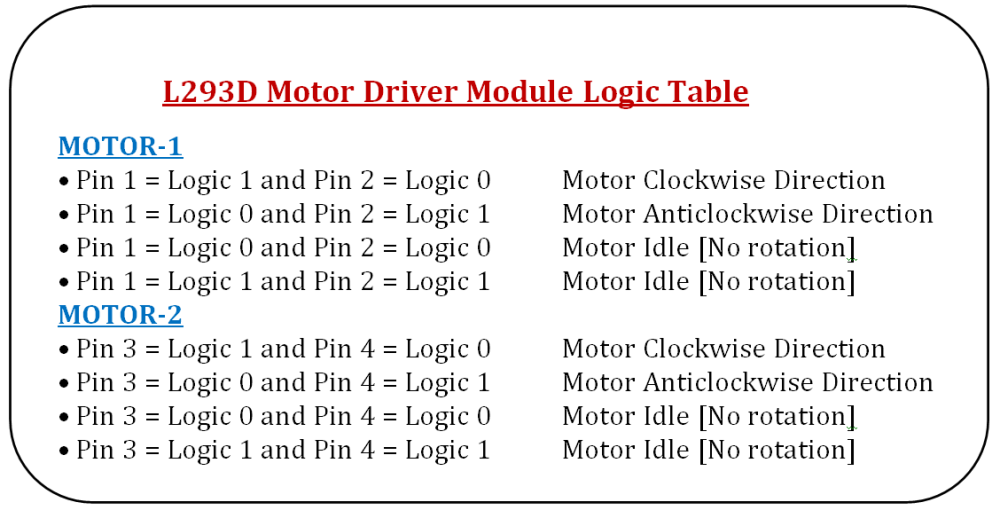

L293D Logic Table

MOTOR-1

Pin 1 = Logic 1 and Pin 2 = Logic 0 – Motor Clockwise Direction
• Pin 1 = Logic 0 and Pin 2 = Logic 1 – Motor Anticlockwise Direction
• Pin 1 = Logic 0 and Pin 2 = Logic 0 – Motor Idle [No rotation]
• Pin 1 = Logic 1 and Pin 2 = Logic 1 – Motor Idle [No rotation]

MOTOR-2

Pin 3 = Logic 1 and Pin 4 = Logic 0 –   Motor Clockwise Direction
• Pin 3 = Logic 0 and Pin 4 = Logic 1   –   Motor Anticlockwise Direction
• Pin 3 = Logic 0 and Pin 4 = Logic 0 –   Motor Idle [No rotation]
• Pin 3 = Logic 1 and Pin 4 = Logic 1 –   Motor Idle [No rotation]

Documents

Download L293D Datasheet

Links:

http://www.st.com/content/ccc/resource/technical/document/datasheet/04/ac/22/f9/20/5d/43/a1/CD00000059.pdf/files/CD00000059.pdf/jcr:content/translations/en.CD00000059.pdf

http://www.st.com/resource/en/datasheet/l
