ATTINY85-USB-Development Board- EE7003-DC6R2

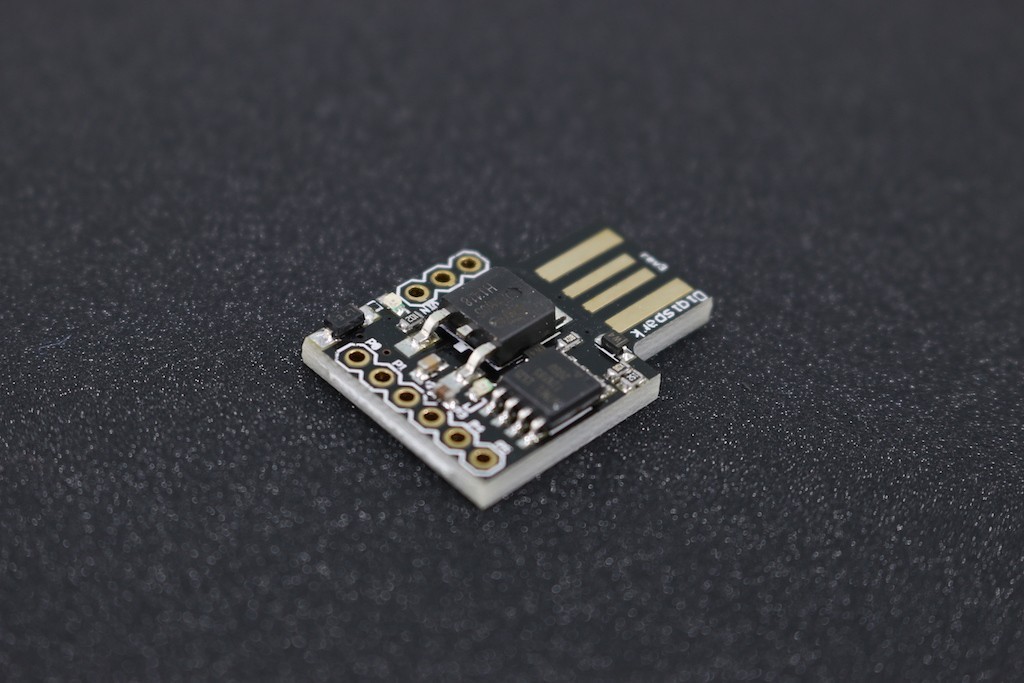

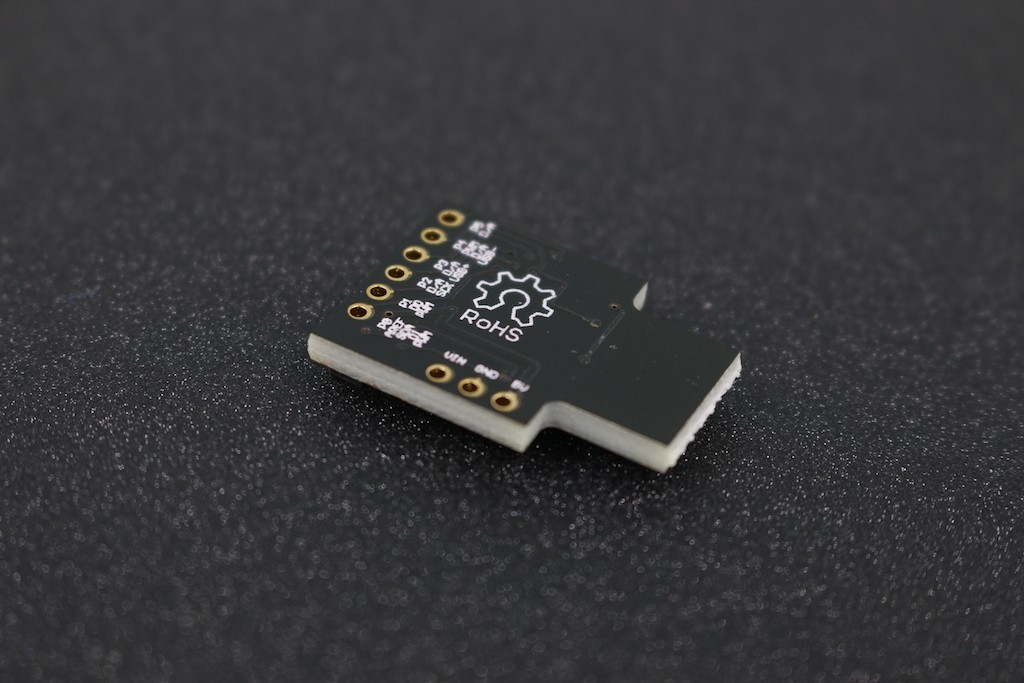

The ATtiny85-based mini development board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this ATTINY85 USB Development Board is a great way to jump into microcontroller electronics.

ATtiny85-based microcontroller development board comes with a USB interface. Coding is similar to Arduino, and it uses the familiar Arduino IDE for development. This is a digispark clone.

It has 6 ports with several functions. Depending on the programming (with Arduino IDE) can it have 6 digital I/O, 4 analog inputs, or 3 PWM outputs. It can be powered by a USB port or an external power supply of 6-35V DC.

Specifications

•      Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).
•       Power via USB or External Source or 7-16 v to 5 v (automatic selection).
•       The Onboard, 150 ma 5 v Regulator.
•        Built-in USB and serial were debugging).
•       6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
•        8 k Flash Memory (about 6 k after bootloader).
•       The I2C and SPI (vis USI).
•       PWM on 3 pins (more possible with Software PWM).
•        The ADC is on 4 pins.
•        The Power LED and the Test/Status LEDs.
•      Module Dimension: 19mmx26.6mmx2mm
•        Module Weight: 3g.
