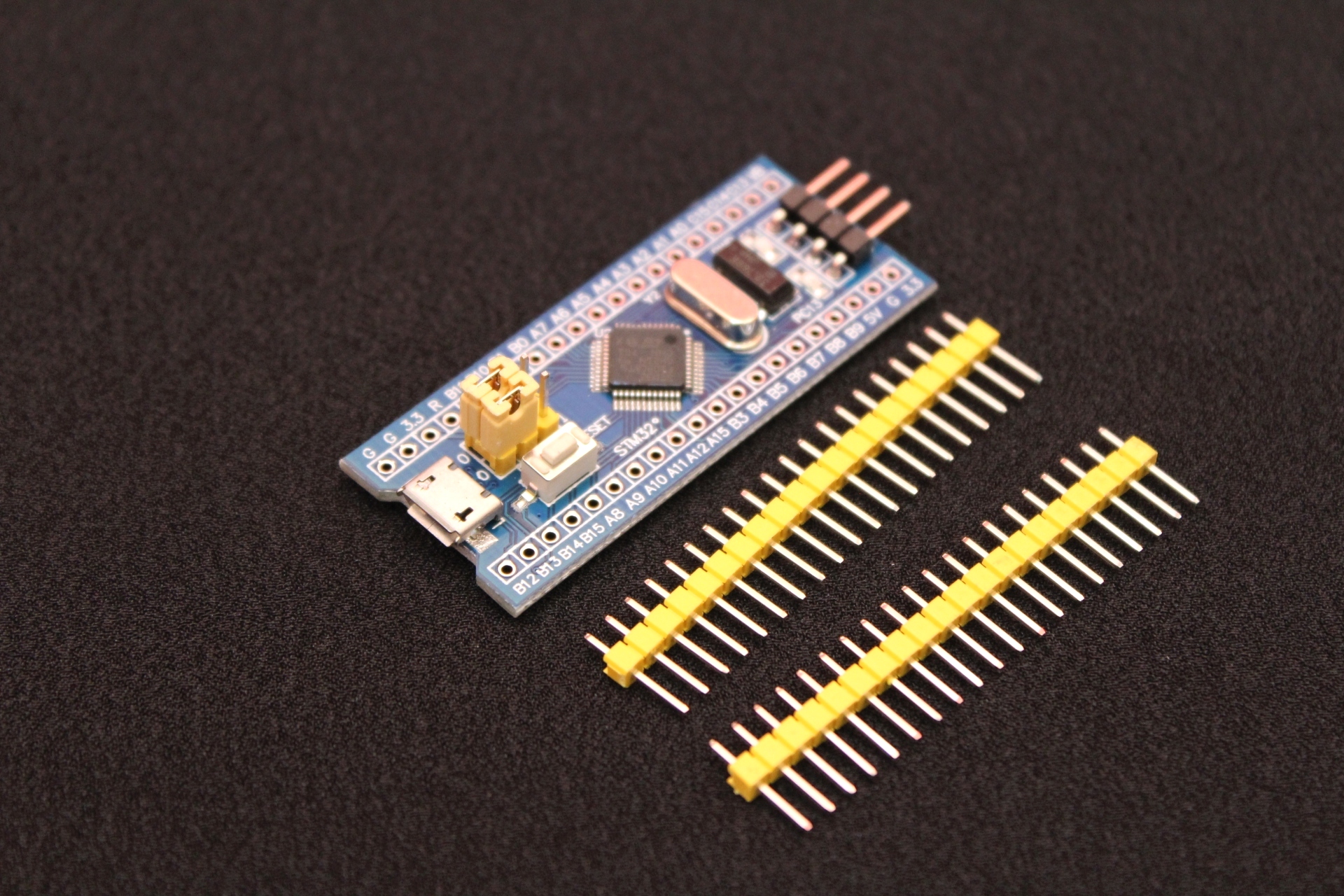

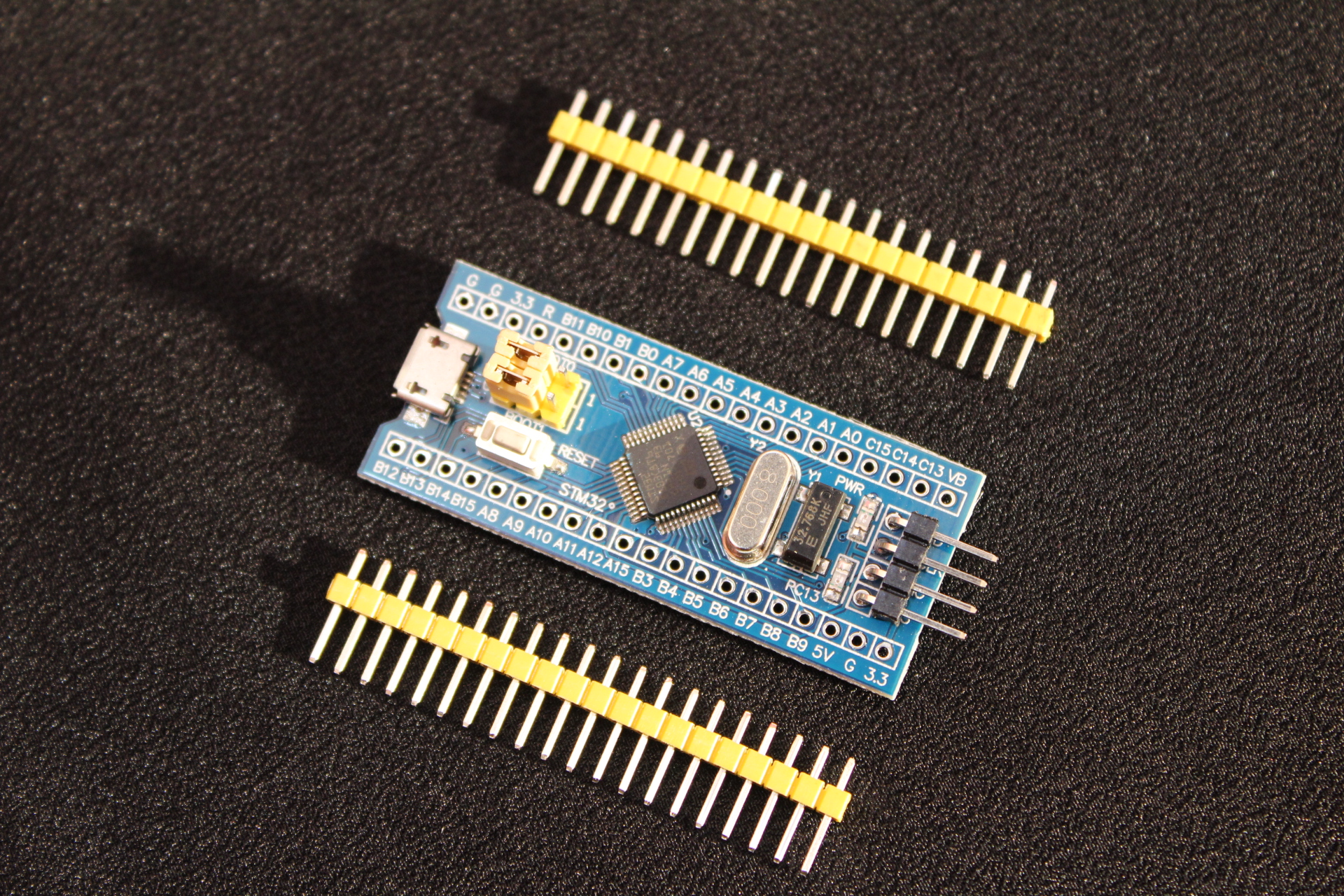

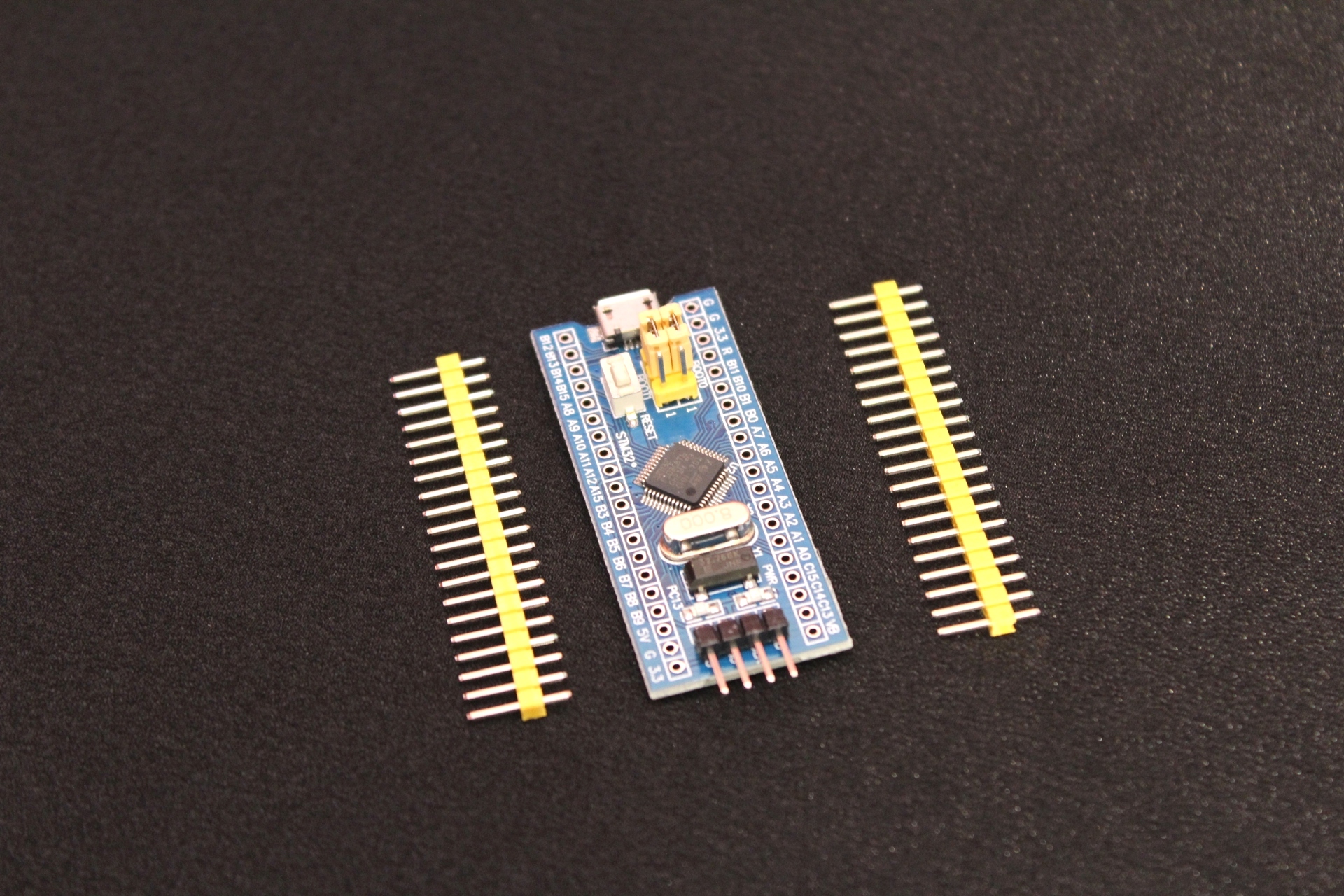

STM32F103C8T6-Minimum System Development Board for ARM Microcontroller – EE8001 -DC6R3

This board is low cost Minimum System Development Board for ARM Microcontroller – STM32F103C8T6. Board is suitable for learners that want to learn STM32 microcontroller with ARM Coretex-M3 32-bit core.

Specifications

• Model : STM32F103C8T6 in LQFP48 package
• Core : ARM®32bit Cortex®-M3 CPU Core
• Debug Mode : SWD
• 73Mhz max CPU frequency
• 64K Flash Memory
• 20K SRAM
• 0 V – 3.6 V Application supply and IO’s
• POR, PDR and programmable voltage detector (PVD)
• GPIO (32) With external interrupt capability
• 12-bit ADC  (2) with 10 Channels
• RTC
• Timers (4)
• I2C (2)
• USART (3)
• SPI (2)
• USB 2.0 full-speed
• CAN
• PCB Size: 53 mm X 22 mm
• Weight: 10g.

Package Includes

• 1x STM32 ARM Minimum System Development Board – STM32F103C8T6
• 2x 20 Pin header array
