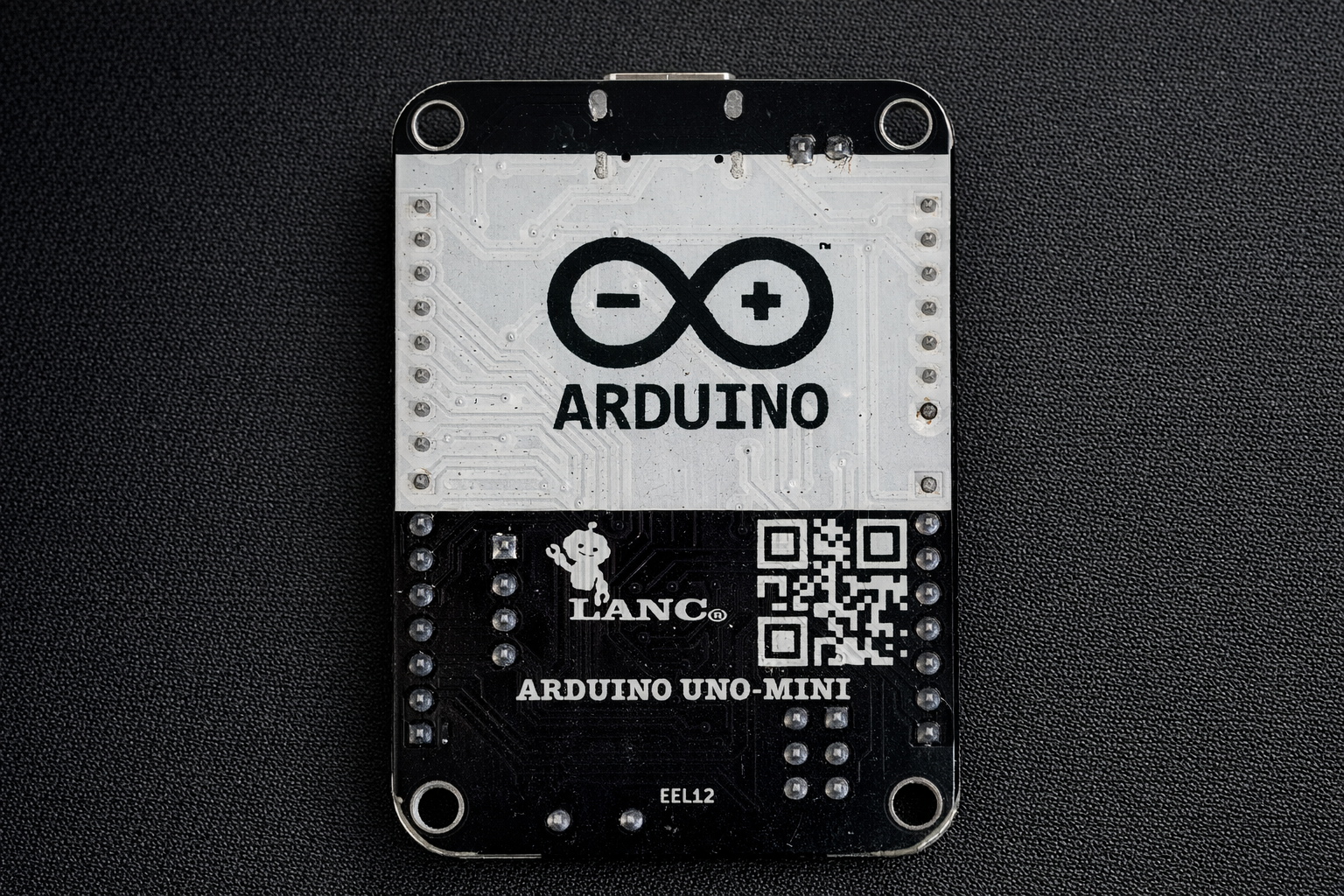

Arduino UNO Mini

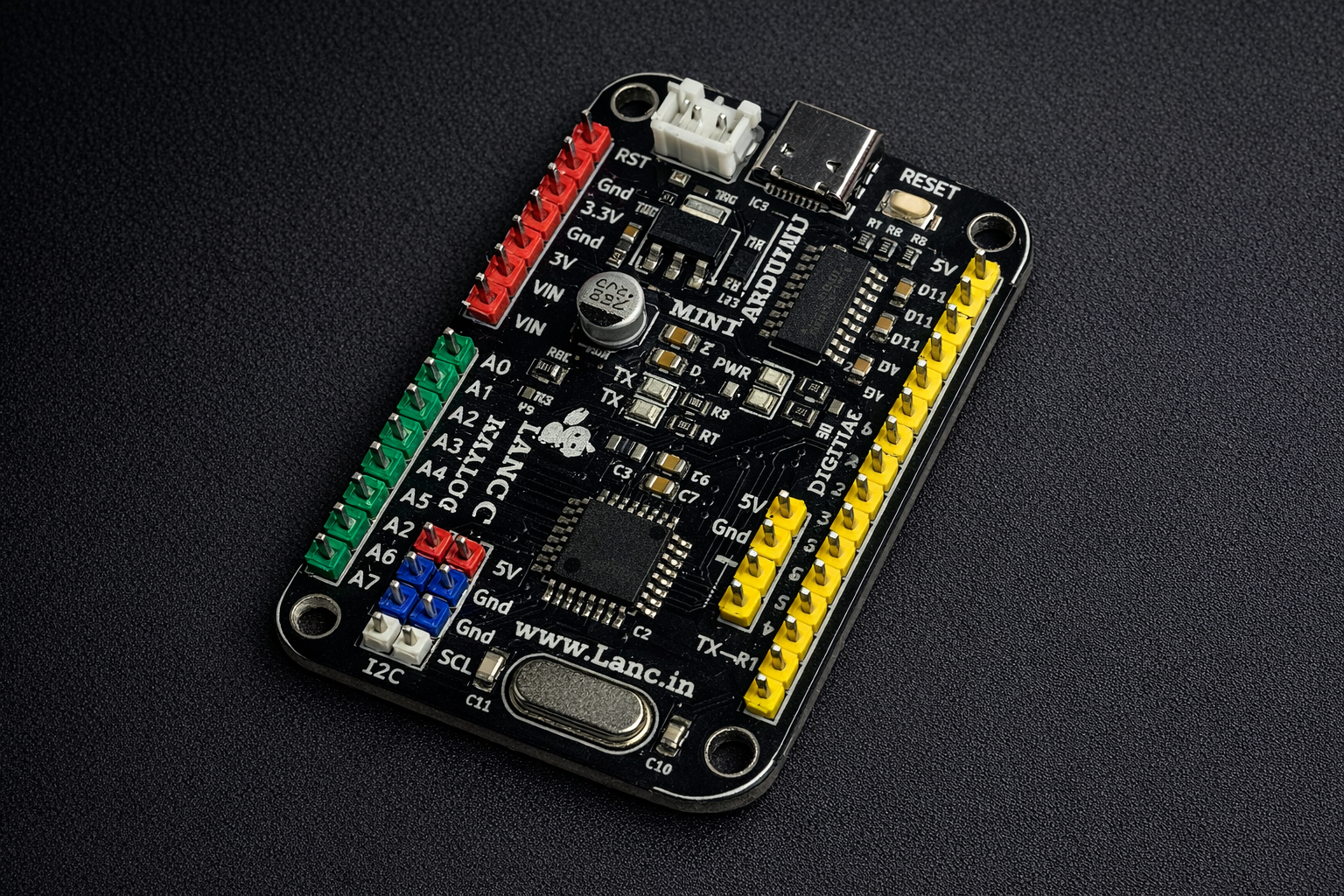

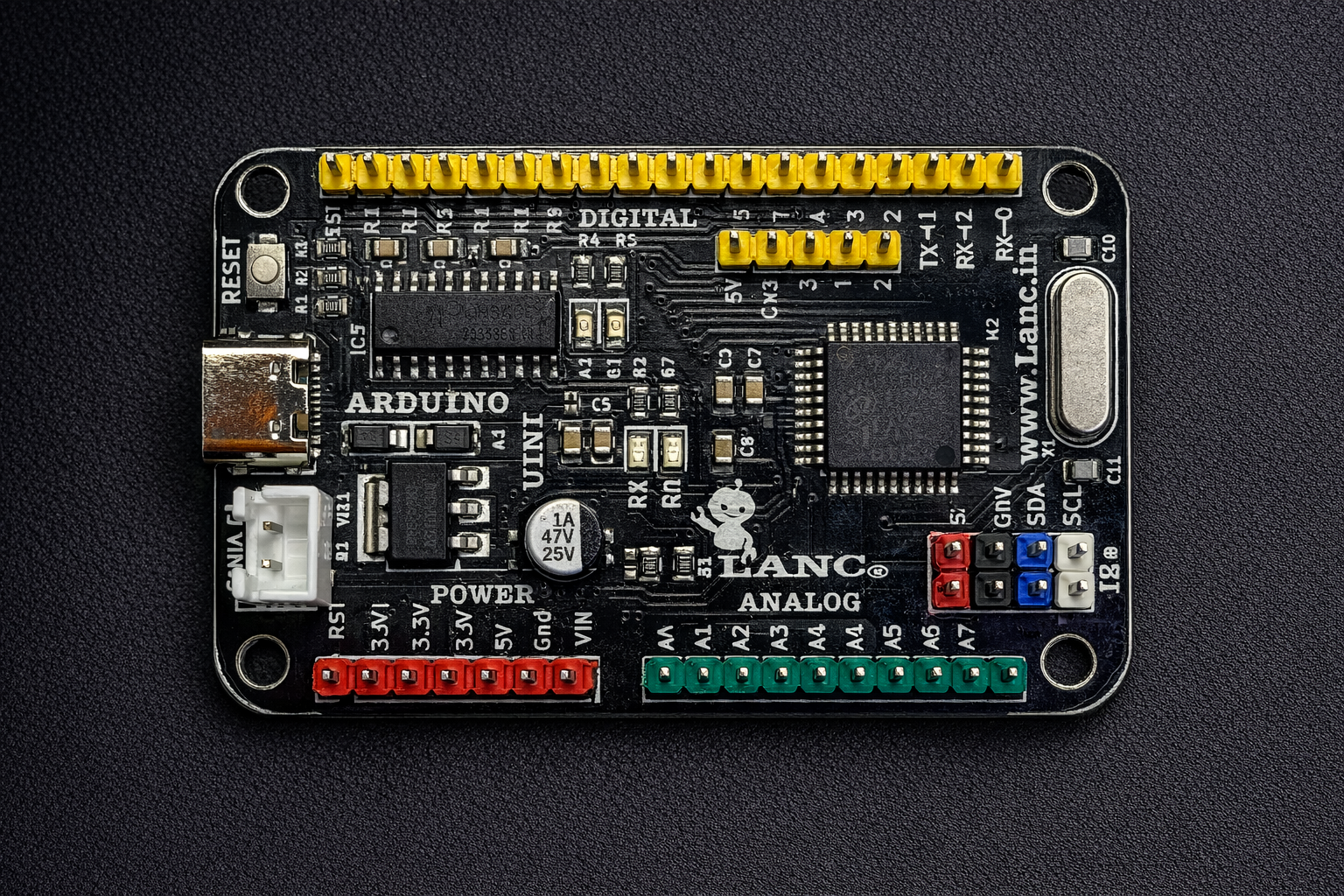

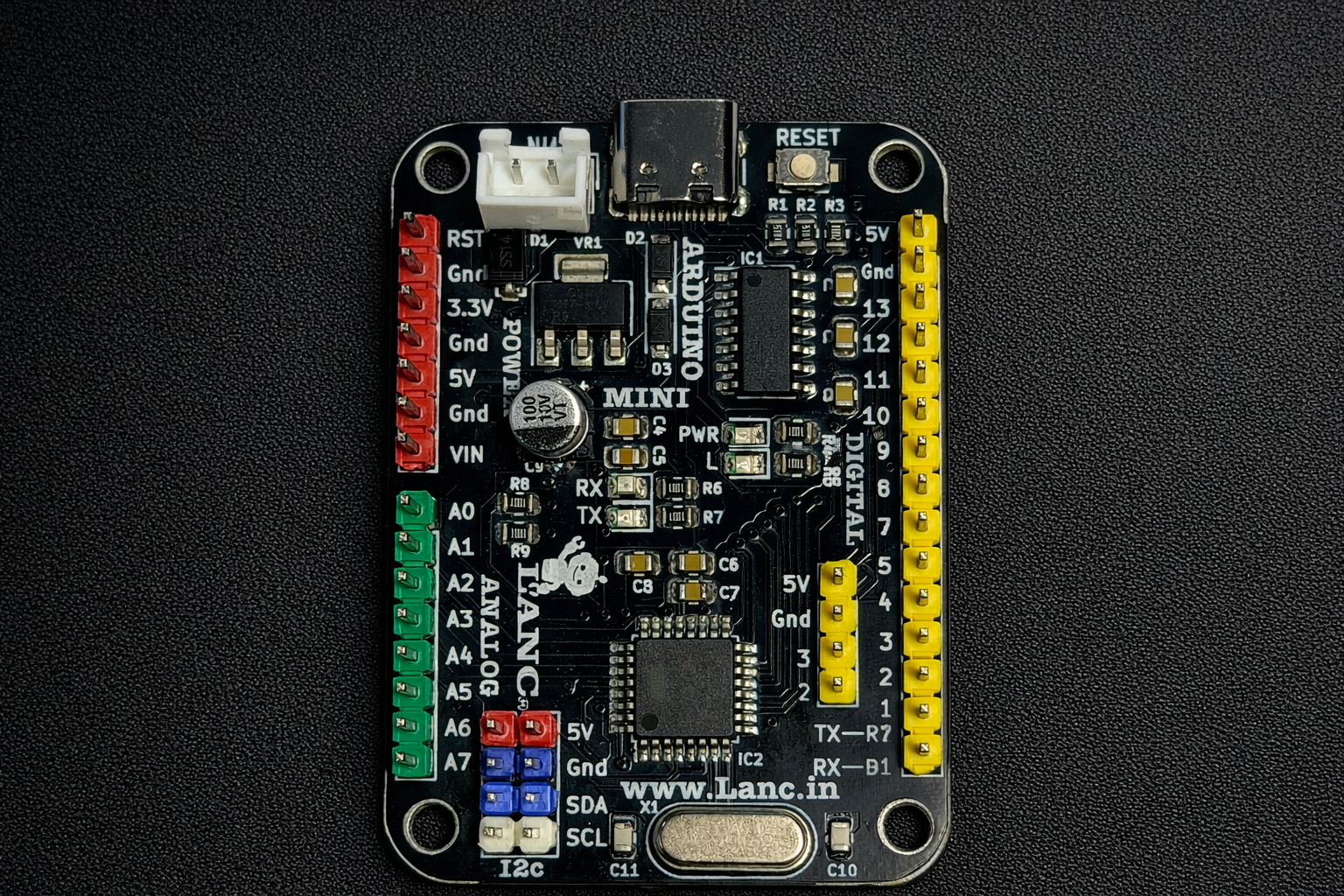

The Arduino Mini Advanced Development Board is a professionally redesigned microcontroller board built for structured, reliable, and expandable electronics projects. Unlike standard compact boards with mixed pin layouts, this board features clearly separated functional ports for power, analog, digital I/O, I2C communication, and hardware serial.

Each port section is equipped with individual color-coded Berg strip connectors, allowing quick visual identification of connections. This reduces wiring errors, improves development speed, and gives the board a clean, professional appearance.

Designed for students, developers, and product prototyping, this board includes an advanced USB Type-C interface, improved power regulation for stable performance, and an organized multi-port layout that simplifies hardware integration.

Whether you’re building IoT devices, automation systems, robotics projects, or embedded prototypes, this board provides a structured and product-ready hardware foundation.

Specification:

• Microcontroller: ATmega328P
• Operating Voltage: 5V
• Input Voltage (Recommended): 7V – 12V
• USB Interface: USB Type-C
• Digital I/O Pins: 14 (6 PWM supported)
• Analog Input Pins: 6
• I2C Communication: Dedicated SDA & SCL Port
• Hardware Serial: Dedicated TX & RX Port
• Port Identification: Individual Color-Coded Berg Strip Connectors
• Clock Speed: 16 MHz
• Power Regulation: Improved onboard stable voltage regulator
• PCB Material: High-quality FR4
• Board Layout: Clearly separated functional port sections
• Board Dimensions: 33mm x 6 mm x 51 mm (L x W x H)
• Weight: 12 grams

Key Features

•  Advanced USB Type-C Interface
•  Separate Dedicated Power Supply Port
•  Separate Analog Input Port Section
•  Dedicated I2C Communication Port
•  Organized Digital I/O Port Block
•  Dedicated Hardware Serial Port
•  Individual Color-Coded Berg Strips for Each Port Section
•  Improved & Stable Power Regulation Circuit
•  Compact, Professional PCB Layout
•  Designed for Learning & Product Development
