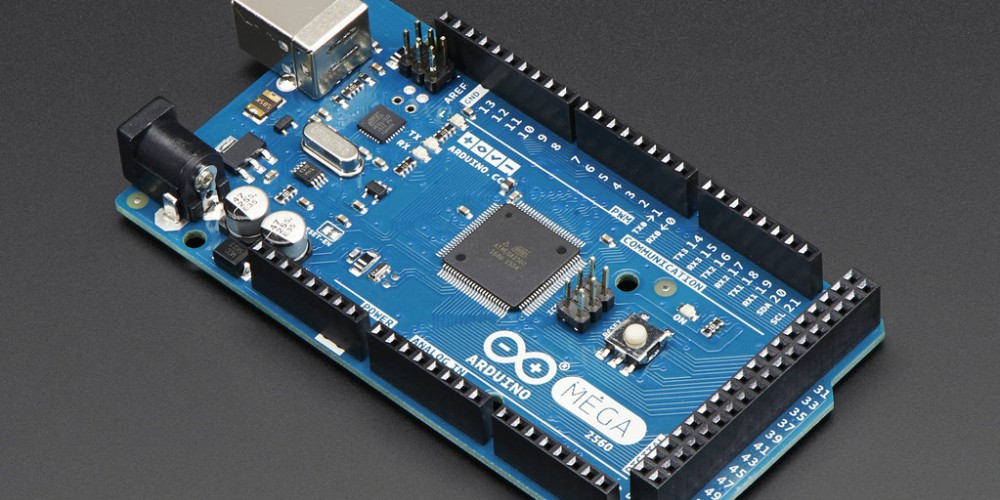

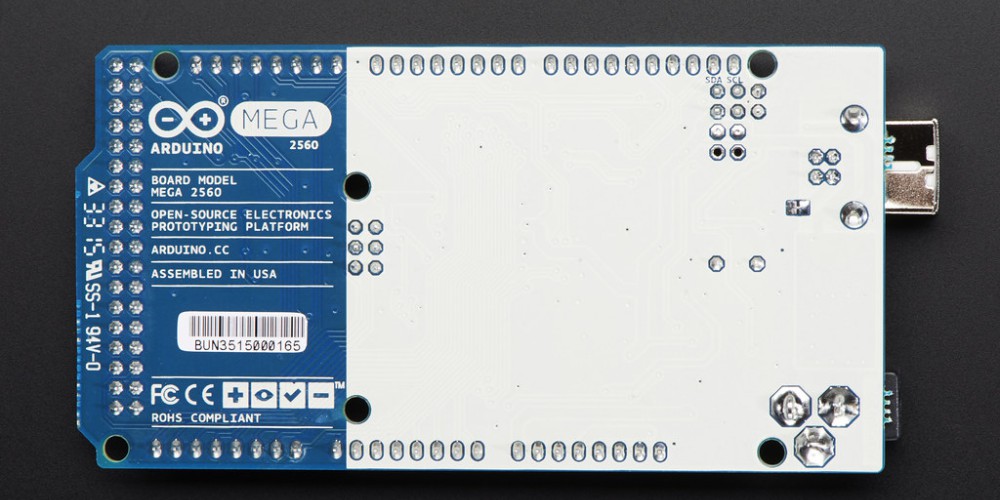

Arduino Mega 2560 – R3

The Arduino Mega 2560 R3 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. The Mega 2560 R3 board is compatible with most shields designed for Arduino/Genuino Uno and the former boards Duemilanove or Diecimila.

Specifications

•         Microcontroller: ATmega2560
•        Operating Voltage: 5V
•         Input Voltage (recommended): 7-12V
•         Input Voltage (limits): 6-20V
•         Digital I/O Pins: 54 (of which 15 provide PWM output)
•        Analog Input Pins: 16
•         DC Current per I/O Pin: 40 mA
•         DC Current for 3.3V Pin: 50 mA
•         Flash Memory: 256 KB of which 8 KB used by the bootloader
•         SRAM: 8 KB
•         EEPROM: 4 KB
•        Clock Speed: 16 MHz
•        USB Host Chip: MAX3421E
