Product details

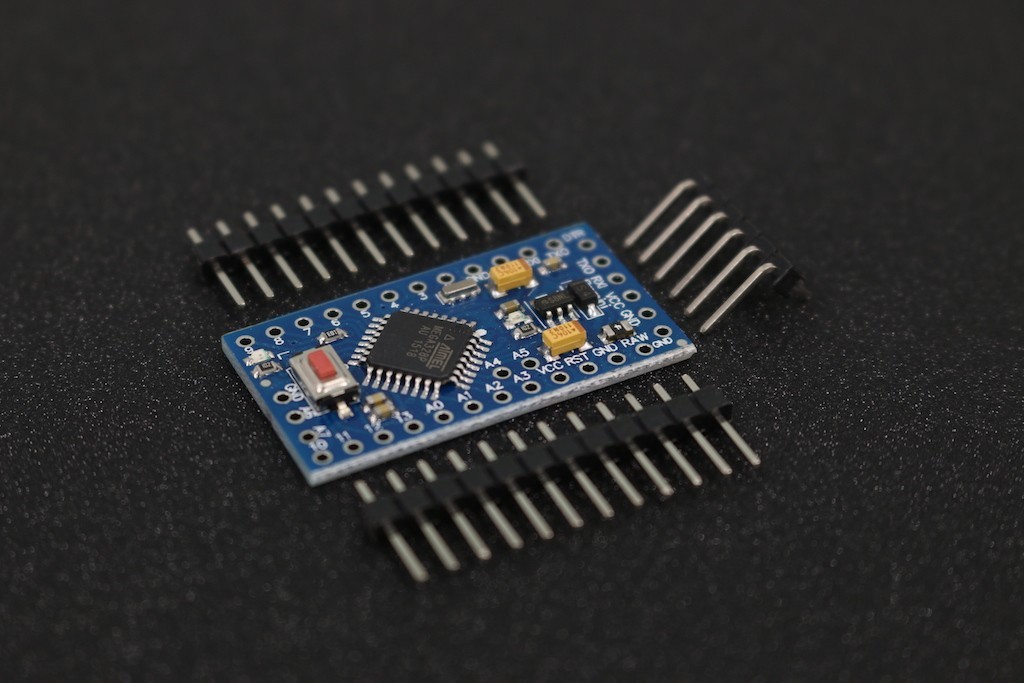

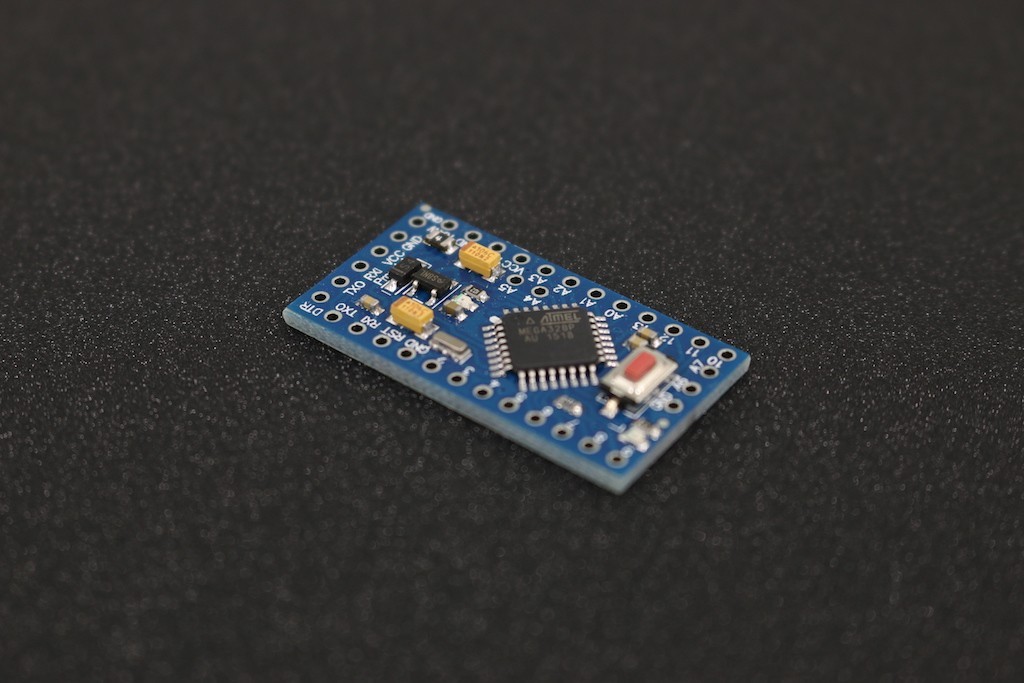

The Pro Mini is a microcontroller board base on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.
A six pin header can be connected to an FTDI cable to provide USB power and communication to the board. The Pro Mini Arduino is intended for semi-permanent installation in objects or exhibitions. The pin layout is compatible with the Mini Arduino.
Specifications
- ATmega328P running at 16MHz with external resonator (0.5% tolerance)
- Input Voltage (recommended) : 7-9 V
- Operating Voltage (logic level): 5 V
- Max 150mA output
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Analog Input Pins: 8
- DC Current per I/O Pin: 40 mA
- Dimensions:33mmx18mm
- Weight: 5g.
