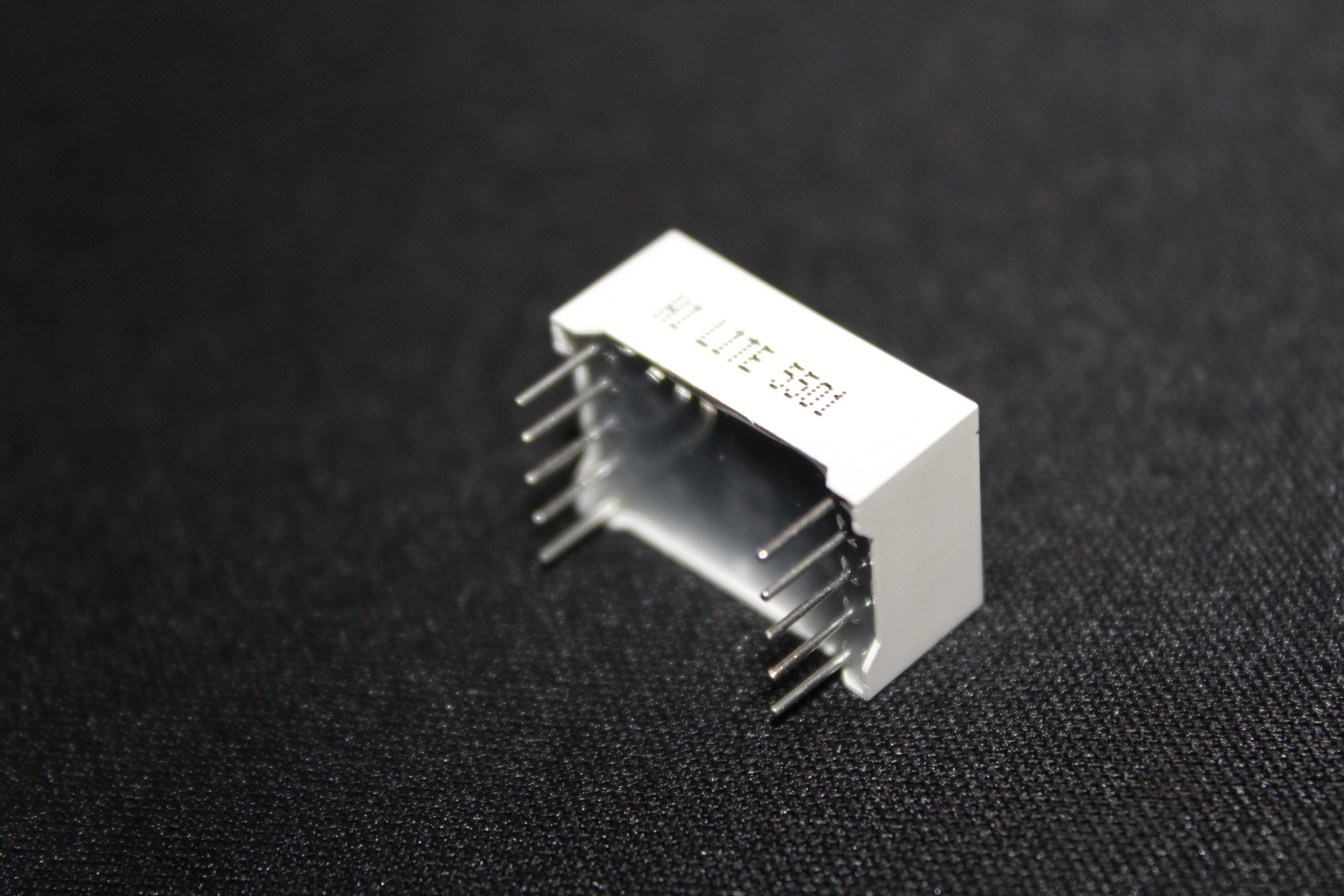

7-Segment Common Anode Display – RED-EE804A-H3R2

In the common anode display, all the anode connections of the LED segments are joined together to logic “1”. The individual segments are illuminated by applying a ground, logic “0” or “LOW” signal via a suitable current limiting resistor to the Cathode of the particular segment (a-g).

Specifications

• common anode display
• Supports 1 to 8 Digits
• Any combination of individual displays up to 8 total digits
• Displays both hex and integer values
• Supports decimal points built into 7-Segment display
• Display Dimensions(LxWxH in mm): 5×7.0x19.0mm
• Weight: 2g.
