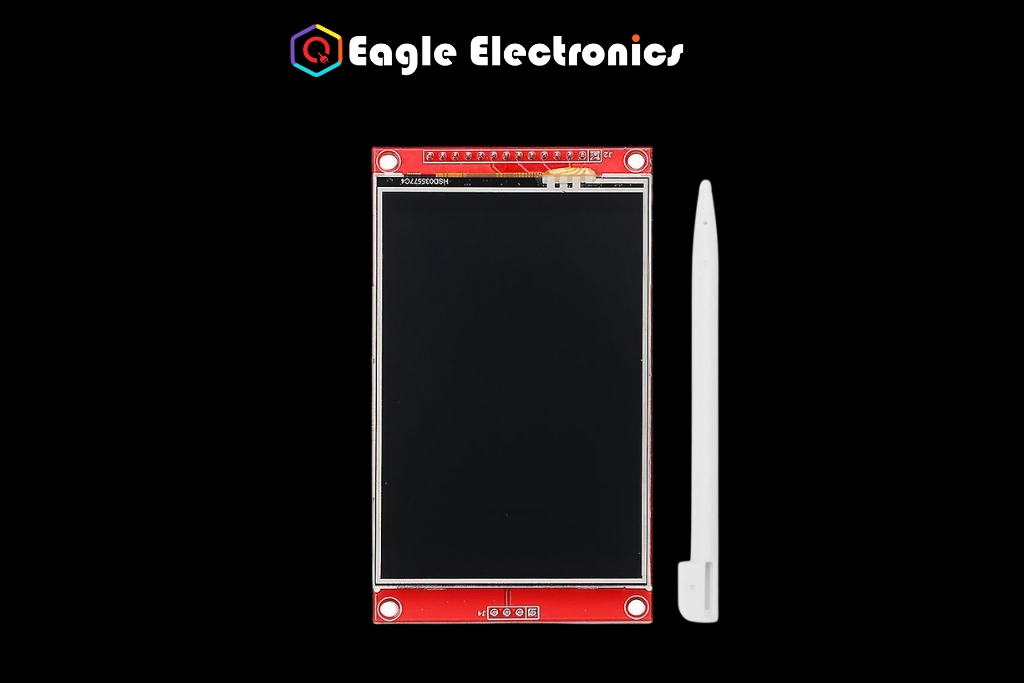

2.8-inch SPI Touch Screen Module TFT Interface 240*320

Large (2.8 diagonal), vibrant, and colourful TFT display! This has far better resolution than a black and white 12864 display at 240×320 pixels with individual RGB pixel control. With Arduino and other micro-controller boards, it functions wonderfully.
You can detect finger presses anywhere on the screen thanks to the resistive touchscreen that is already attached to this display. To ensure that the microcontroller doesn’t have to perform much work, this display includes a controller integrated into it that uses RAM buffering.

8-bit and SPI are the two operating modes for the display. You will require 12 lines total to read and write to the display in 8-bit mode, which consists of 8 digital data lines and 4 or 5 digital control lines. SPI mode is slower than 8-bit mode but only needs 5 total pins (SPI data in, data out, clock, select, and d/c). Additionally, the touchscreen requires 4 pins (2 digital and 2 analogue).

An easy-to-use breakout board with SPI connections on one end and 8-bit on the other houses this 2.8-inch SPI touch screen module. You can use either one with any microcontroller because both are high-speed level shifters that are 3-5V compliant. Images can also be displayed via the onboard Micro SD card connection if you choose SPI mode.

Specifications

• Input Voltage (V): 3.3 to 5
• Touch: Resistive
• Display Size: 2.8″
• Size: 8.5 x 4.8cm
• Input Voltage (V): 3.3 to 5
• Driver IC: ILI9341
• Color Depth: 262K/65K
• Resolution (dots): 240 x 320
• Dimensions:85x48mm
• Weight: 42g.

Package Includes

• 1 x 2.8-inch SPI Touch Screen Module TFT Interface 240 x 320
• 1 x Stylus Pen
