Product details

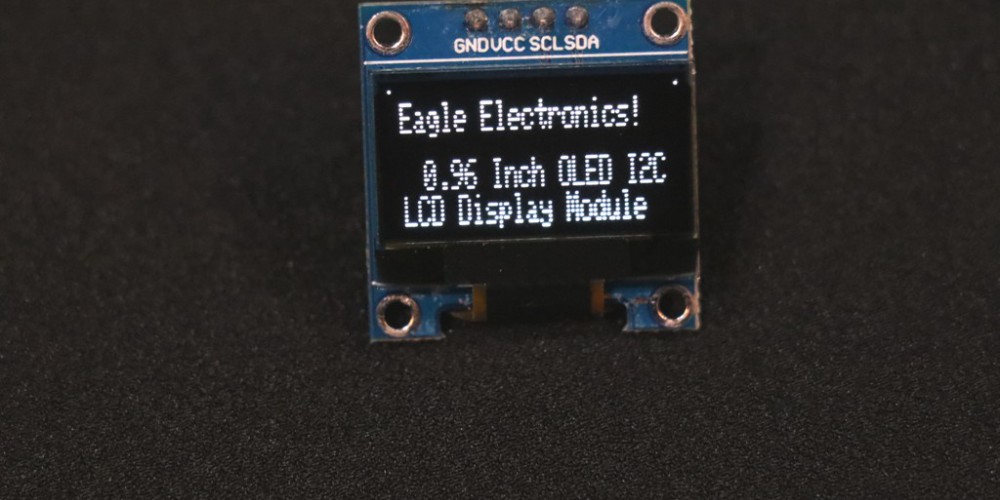

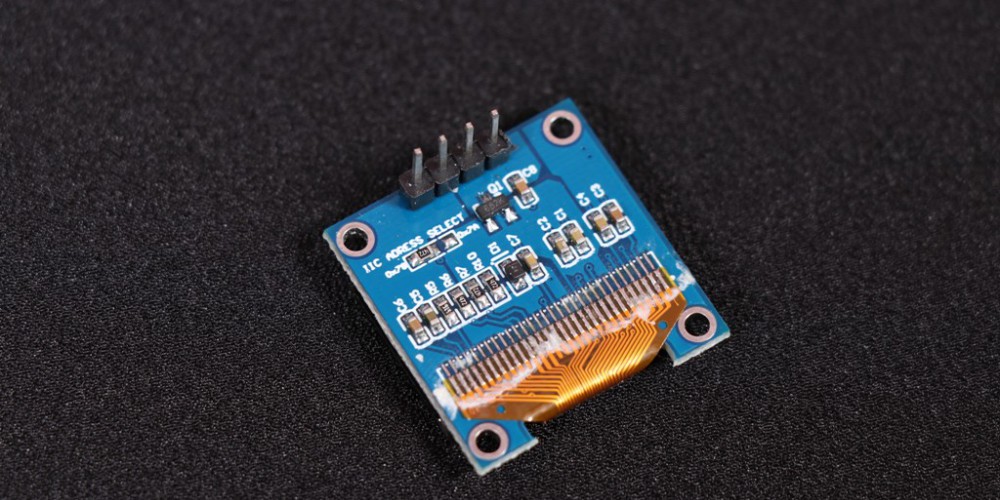

This module is a 0.96 inch White OLED display module. The display module can be interfaced with any microcontroller using IIC protocols. It is having a resolution of 128×64. OLED is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
Specifications
- Resolution: 128X64
- Size: 0.96
- Ultra low power: 0.08W
- Input voltage: 3-5VDC
- View Angle: > 160°
- Communication: IIC, only two I / O ports
- Compatible with a wide range of controlers (Arduino, ARM, STM32, MSP430)
- Working temperature: -30°C /70°C
- Serial interface: I2C/IIC (needs only 2IO)
- Driver: SSD1306
- Colour: White
- Backlight: OLED self light, no backlight
- I2C Address: 0x3C
- Dimension : 27MM * 27MM * 4.1MM
- Weight: 4g.
