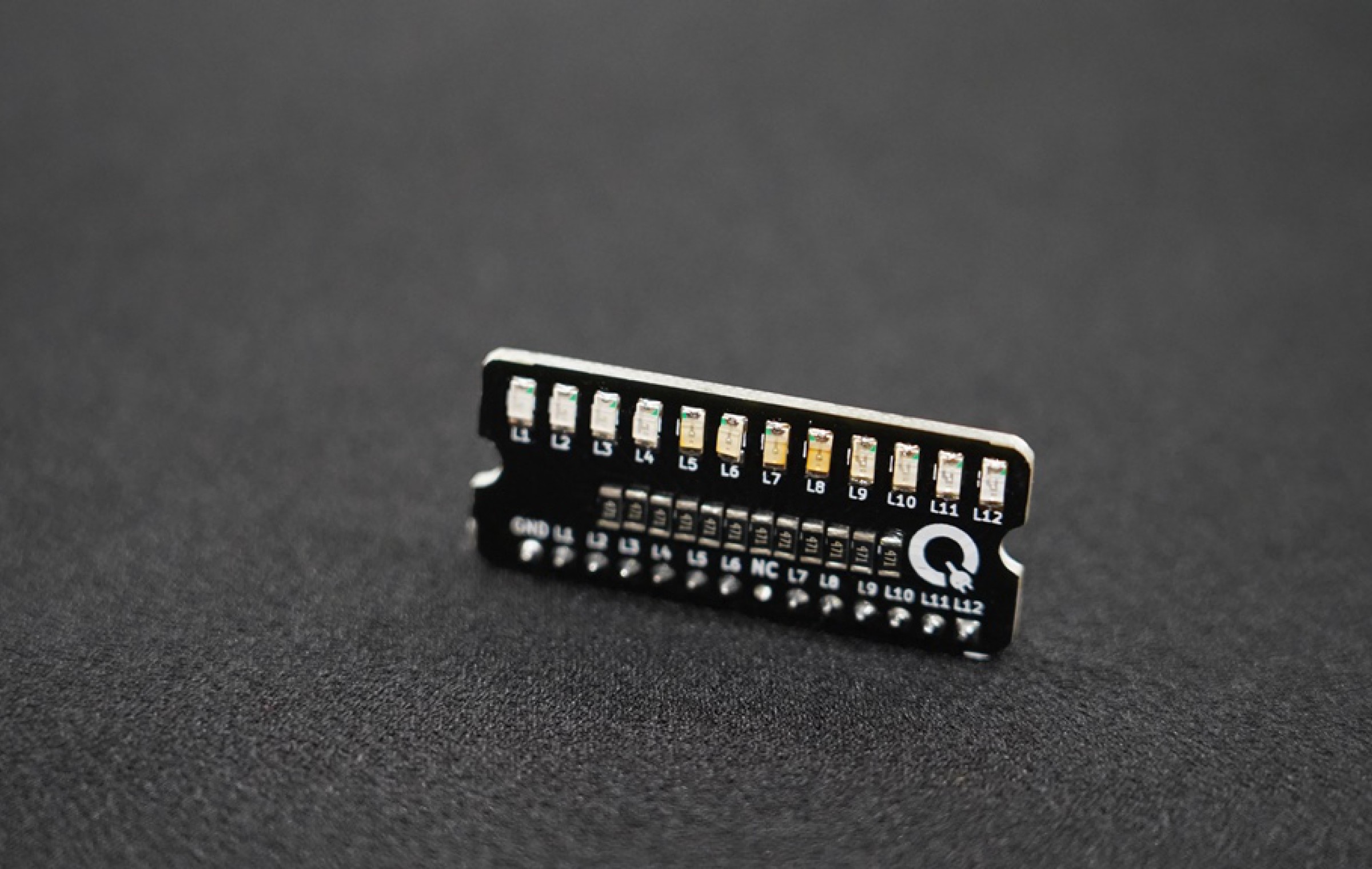

12 BIT LED SHIELD FOR ARDUINO UNO

This board is made in Arduino shield form and can be used with Arduino Uno or Mega. Each LED can be controlled individually connected to digital pins D2-D13 of Arduino. Circuit requires 3.3-5V supply, it can work with lower supply by changing current resistor across LEDs.

Specifications

 Supply 3.3-5V DC

Maximum Load on each channel 20mA (Total 240 mA)

LED 1-12 Connected to D2-D13, of Arduino

PCB dimensions: 18×1.5×41 mm
Weight:5g
