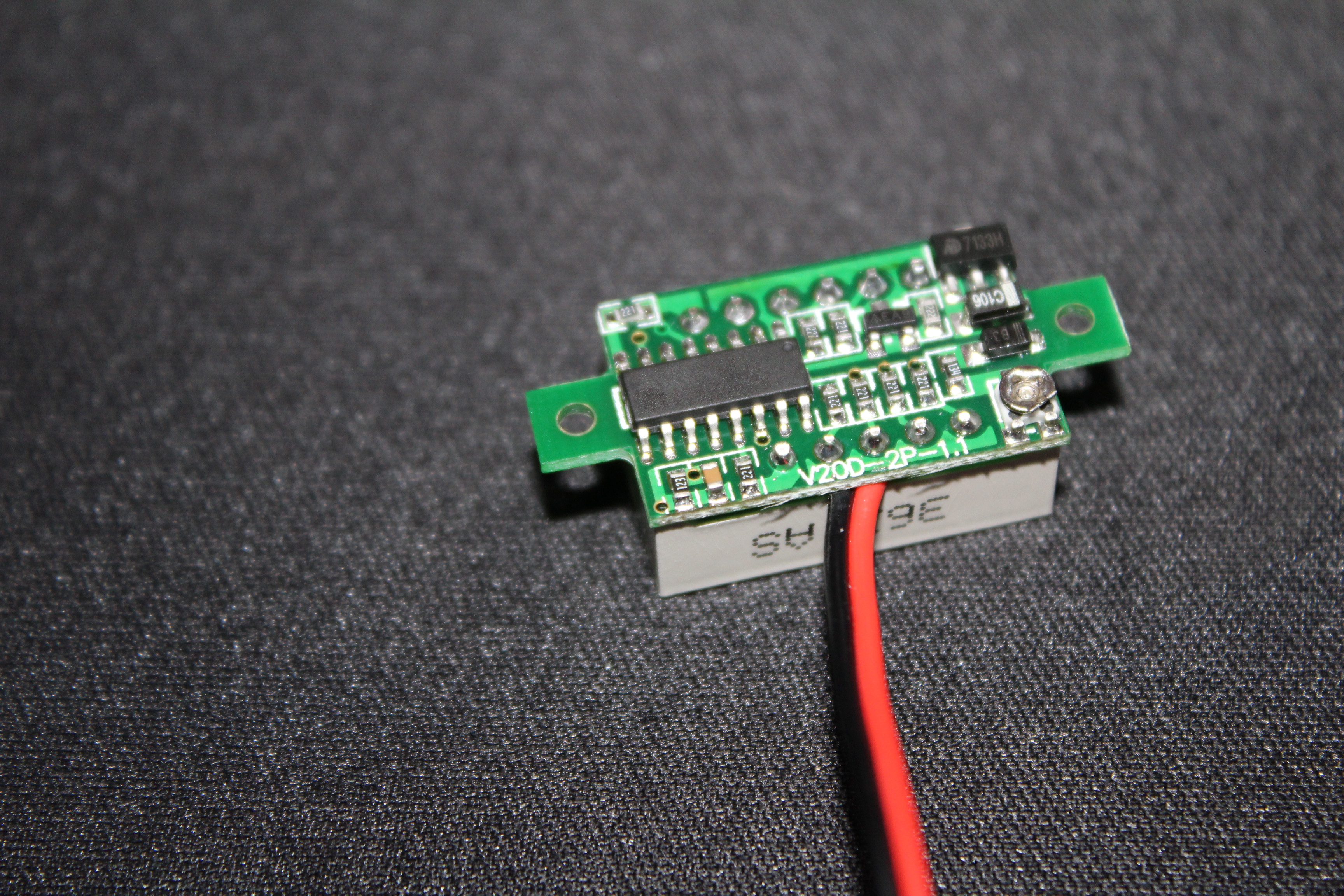

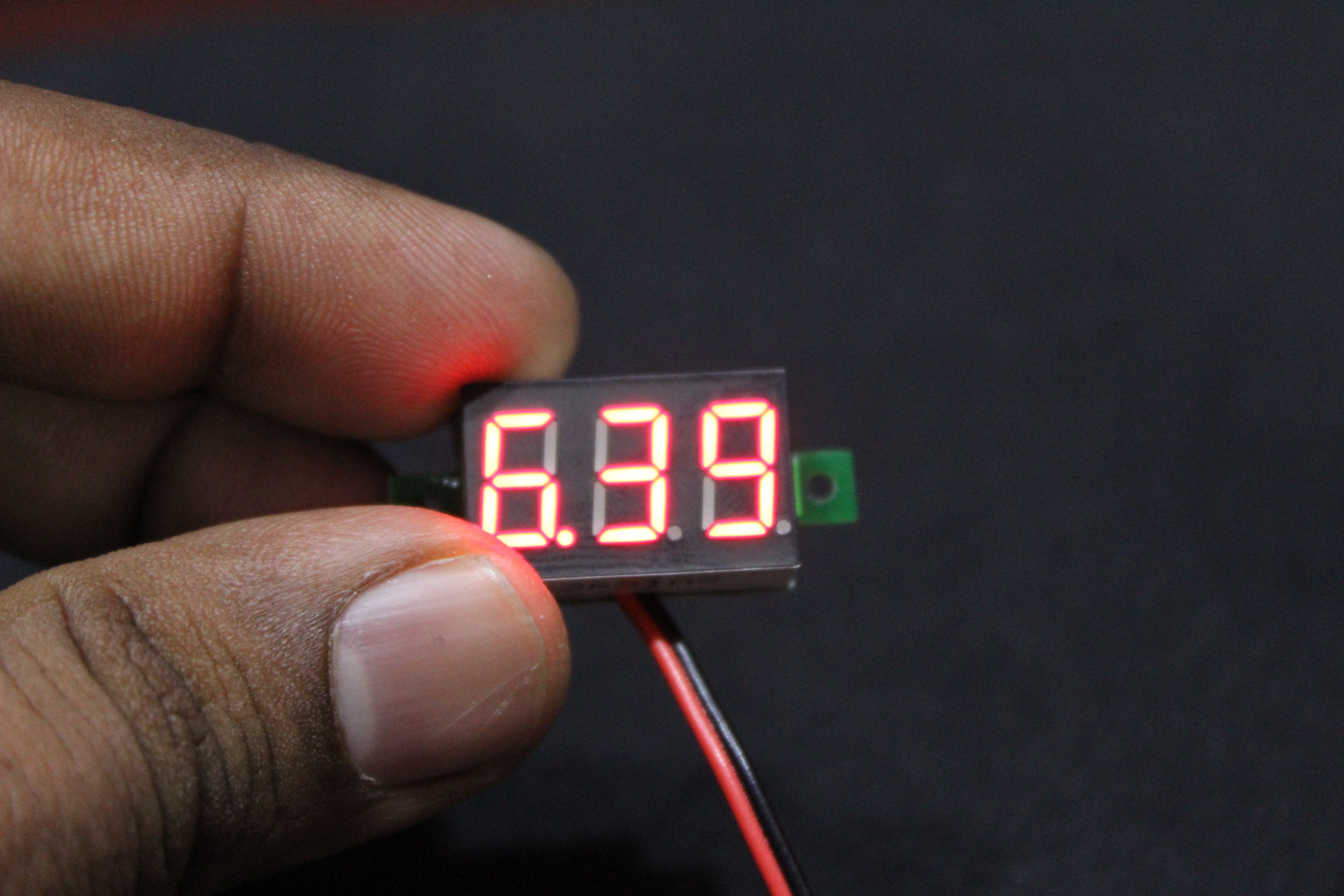

Mini Digital DC Voltmeter 3-30V

This is a 30V DC Voltmeter that operates over a wide voltage range of input voltage (from 3 to 30V). Only two wires are needed to interface this device with the target circuit and the same DC voltage is used for powering the meter from the target circuit.

Specifications

• Measuring Range: 3-30V DC
• Display : 0.36″
• Display Colour: RED LED Segment Display
• Refresh Rate: 500mS
• Operating Temperature: -10ºC to 65ºC
• Error: 1%
• Hole Size: 24x15mm
• Lead Length: 15cm
• Dimensions (LxWxH in mm): 14x10x22.5mm (without mounting tabs)
• Weight: 5g.
