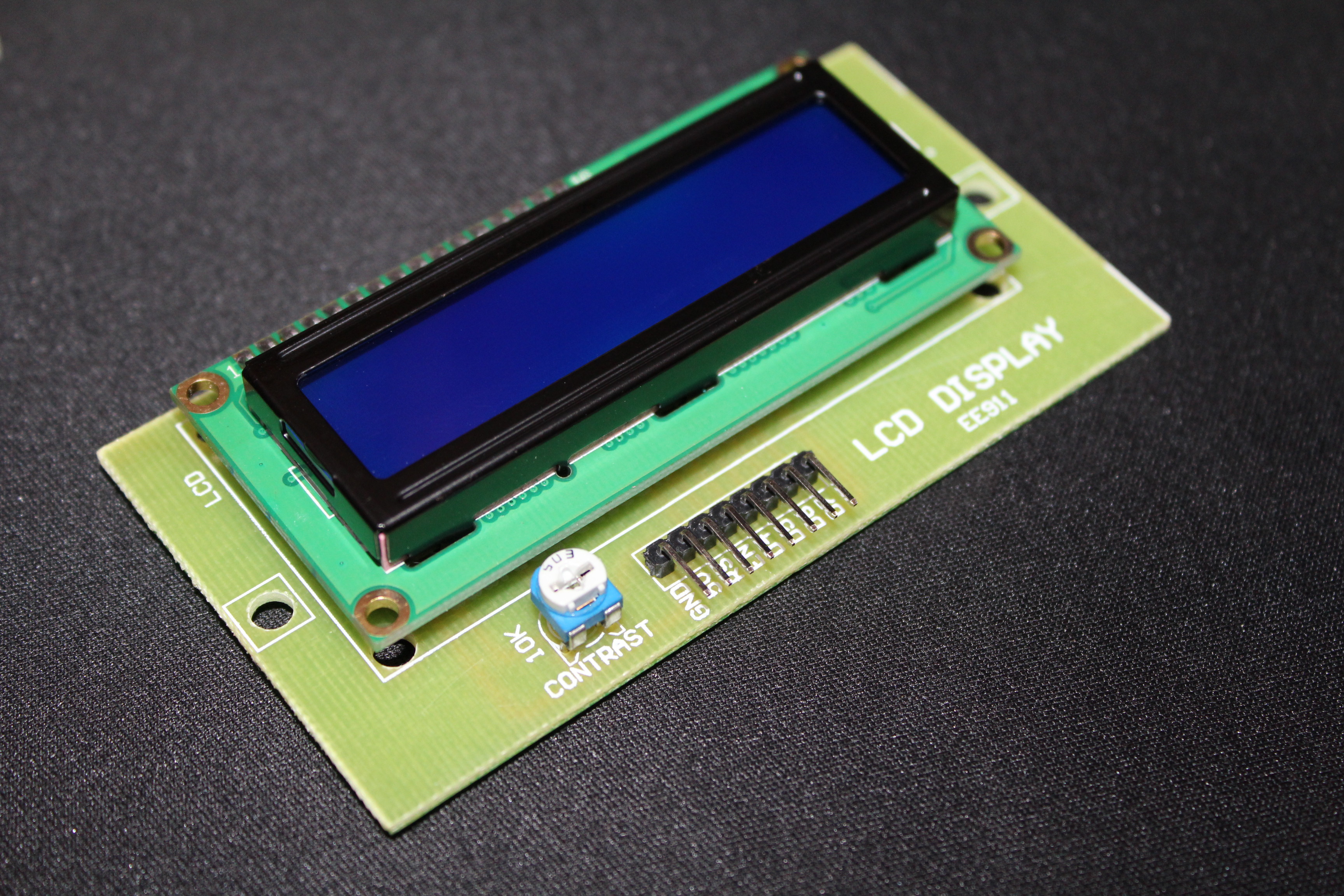

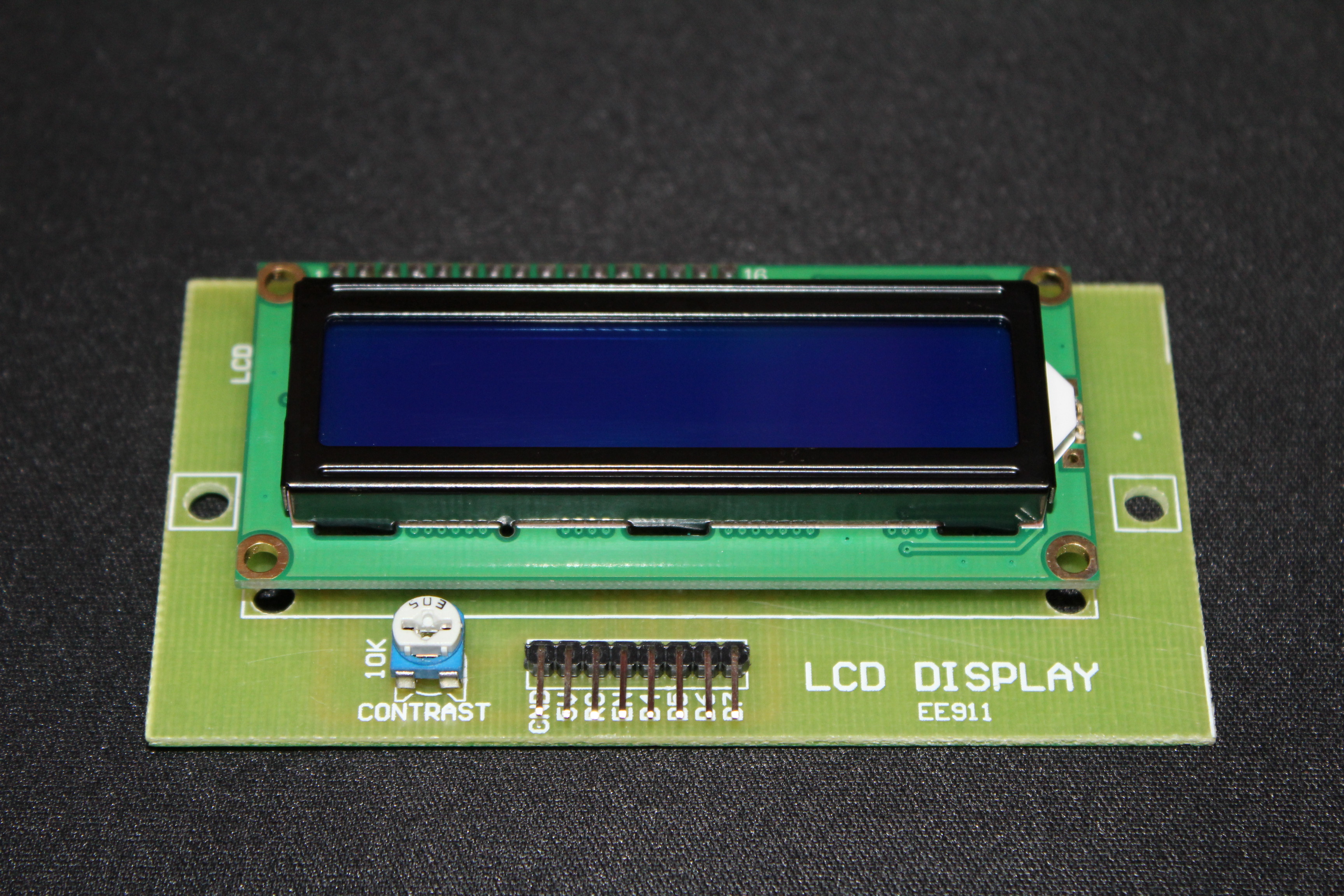

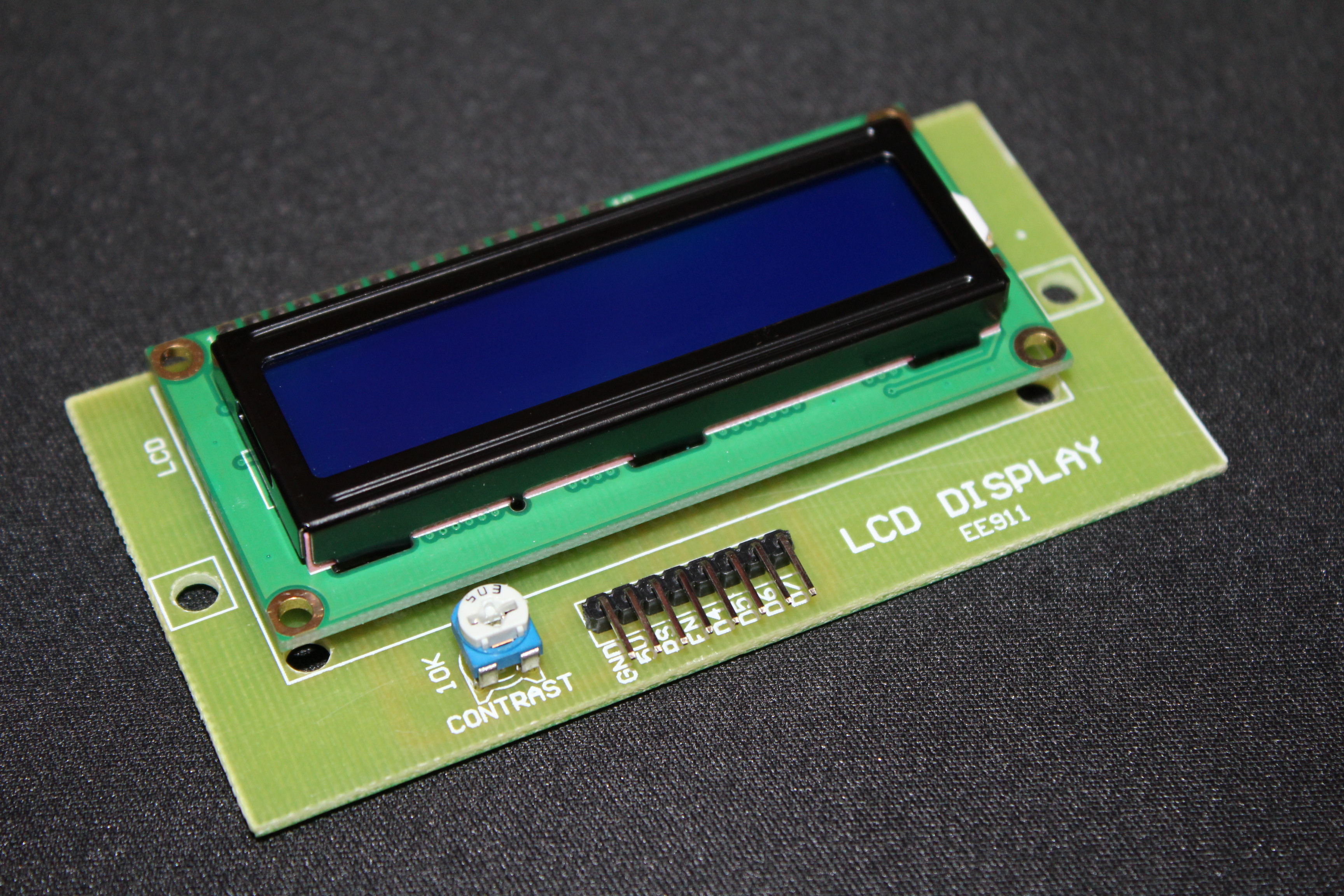

16×2 LCD Display Module (Green Backlight)

This 16X2 LCD Display Module is useful to interface with any kind of microcontroller target boards like 8051, AVR , aurduio and any other processors. The module comes with 4 bit data and 3 bit control pins. The LCD Contrast can be varied with the potentiometer provided on board.

Specifications

• Operate with 5V DC
• Can display 2-lines X 16-characters
• LCM type: Characters
• Blue backlight
• Viewing area size: 64.5mm x 16mm
• Interfacing 16X2 backlight alphanumeric LCD in 4 bit mode
• Preset to adjust the contrast level of the LCD
• 8 Pin Berg connector for easy connection of all pins to the microcontroller board
• PCB Dimensions(LxWxH in mm): 5×1.5×98.2mm
• Weight: 55g.
