MAX7219 8-Digit 7 Segment Display Module

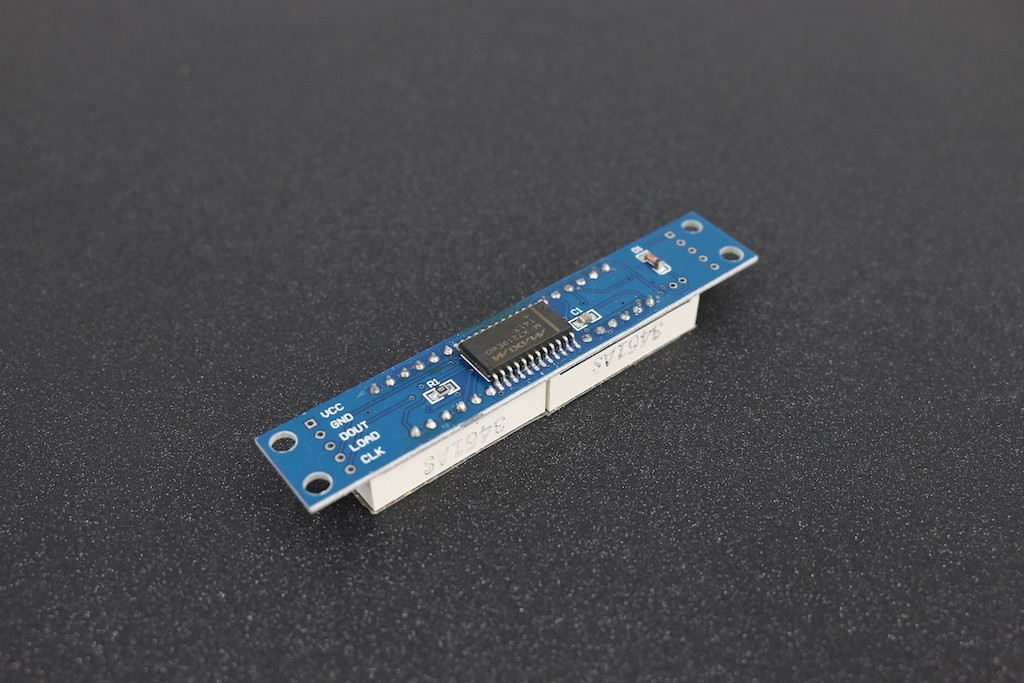

This 8 digit seven segment display module is based upon the Maxim MAX7219 LED display driver. The module uses two standard 4 digit seven segment displays to display a total of 8 digits in RED with decimal point. A convenient input and output header allows additional modules to be daisy-chained and controlled with just 3 digital IO pins.

The Maxim MAX7219 driver allows for each segment of up to 8 digits (with decimal point) to be controlled individually from a serial interface. An 8×8 static ram area stores each digit and multiplexing the display is handled automatically.

Specifications

• No of Digits: 8
• Digit LED Colour: Bright RED
• Voltage: 4.0 – 5.5V
• Max current: 180mA (all LEDs on)
• Min current: <0.5mA (shutdown mode)
• Interface Type: SPI, QSPI, MICROWIRE Serial Interface
• Maximum Clock : 10MHz
• Cascading Ability: Can be chained or cascaded to drive unlimited units
• Display Driver: Maxim MAX7219
• Dimensions:15×11.5×82.6mm
• Weight: 12g.
