Product details

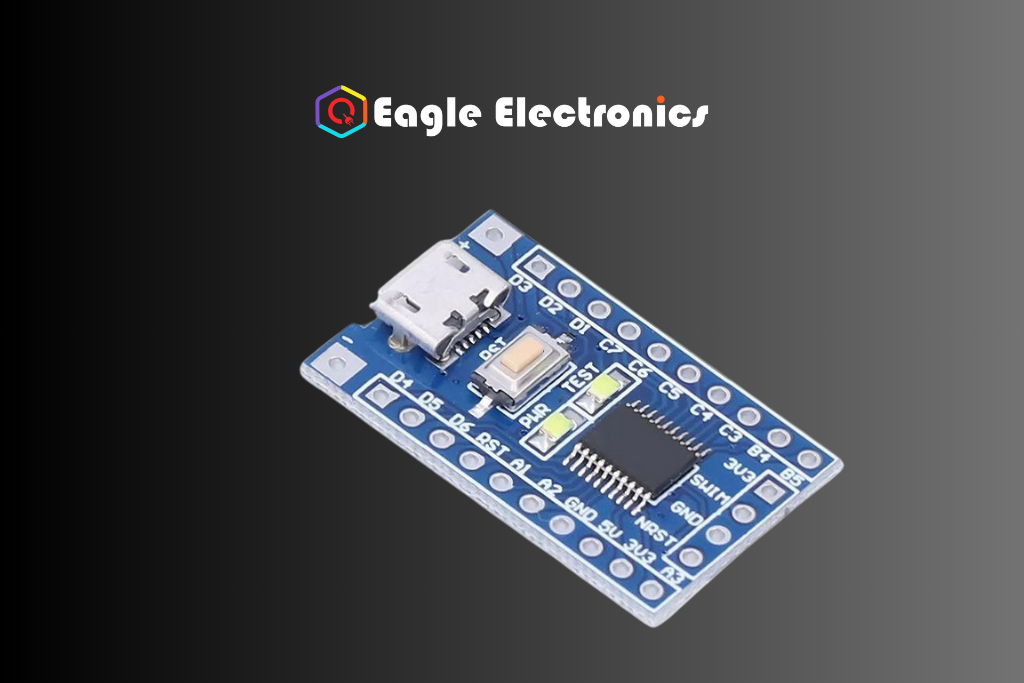

The Core Board STM8S103F3P6 STM8 Development Board Minimum System Board provides the benefit of utilizing the Micro USB for power connection. The Micro USB line works with smartphone cords, so we can simply get data. We do not use the USB MINI cable for power connections as it is no longer fashionable and challenging to acquire. This STM8S development board attracts our attention because of its affordable price, user-friendly design, and comprehensive information. You can utilise a 2.54 pin on the board or power supply pad, and while utilizing the power supply, the pad can transfer output outside through pin 3.3V!
Specifications
- On-board STM8S103F3P6 chip
- On-board SWIM connector for programming
- On-board reset switch
- Reserved external crystal oscillator soldering place
- Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V–15V.
- AMS1117-3.3 voltage regulator for converting 5 V power supply to 3.3 V
- Mini USB connector for powering the board
- Board Dimension (LxWxHMM): 30x20x5mm
- Weight: 4g.
