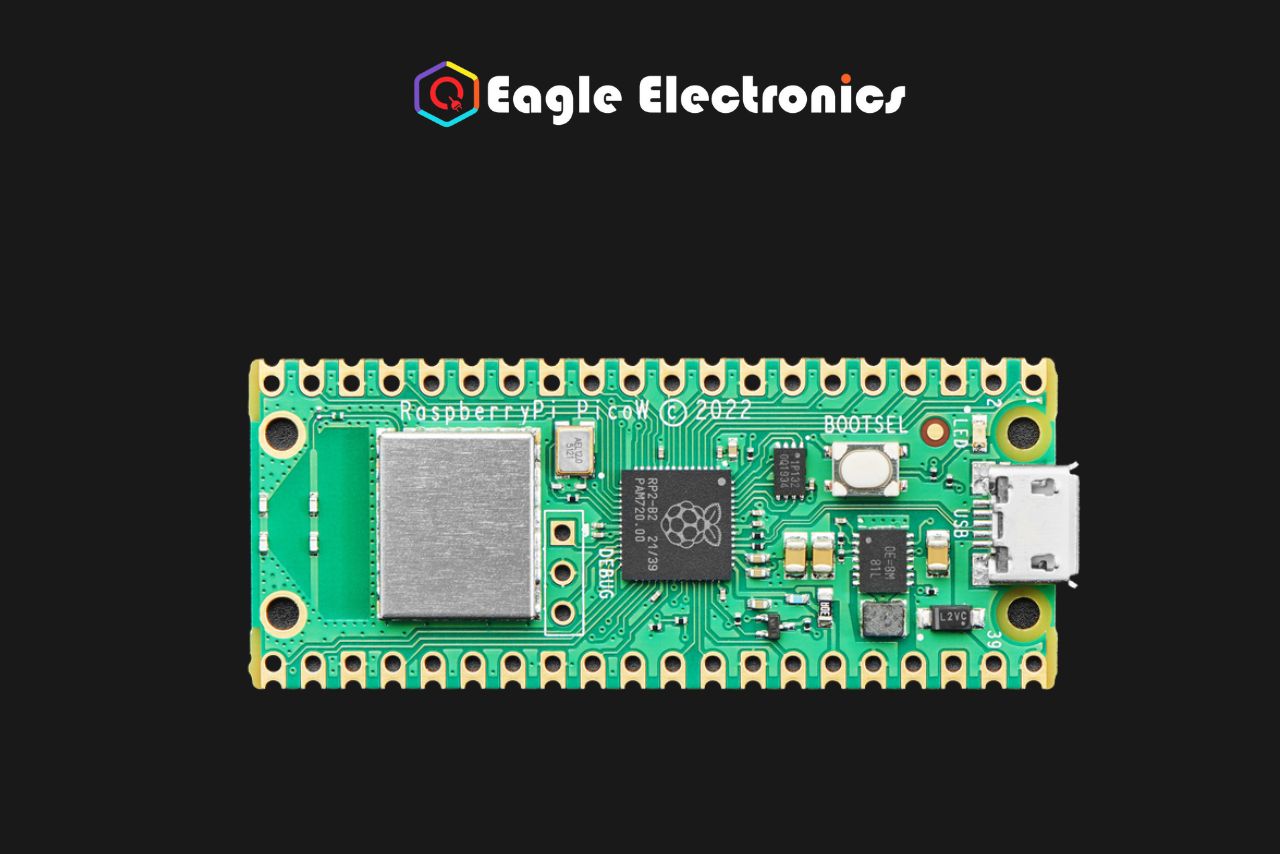

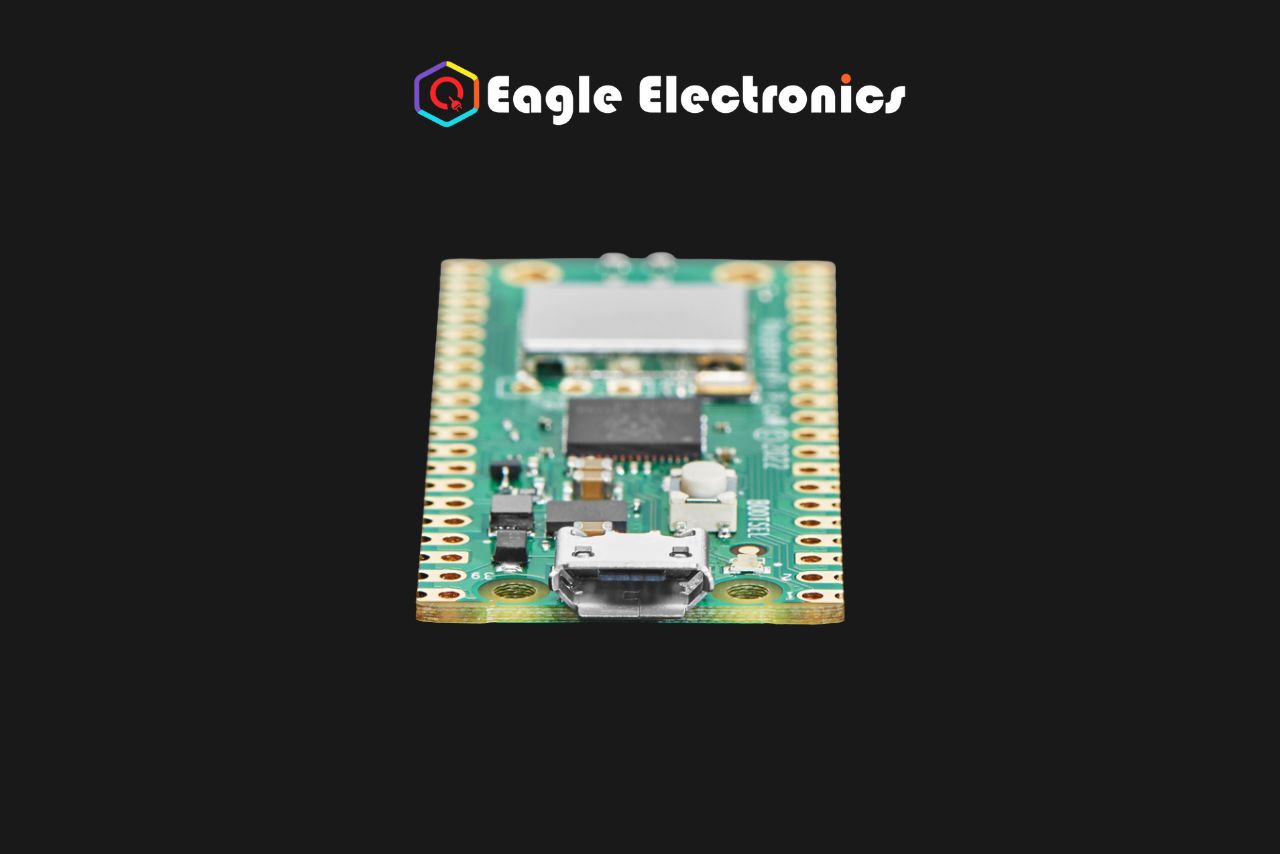

Raspberry Pi Pico-W

The Raspberry Pi Pico W is the ideal device for loT applications and projects requiring wireless connectivity because it has a fully certified module with 2.4GHz 802.11n wireless LAN on board.

Specifications

•        RP2040 microcontroller with 2MB of flash memory
•       On-board single-band 2.4GHz wireless interfaces (802.11n)
•        Micro USB B port for power and data (and for reprogramming the flash)
•       40 pin 21mmx51mm DIP style 1mm thick PCB with 0.1 through-hole pins also with edge castellations
•        Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
•        23 GPIO are digital-only, with three also being ADC-capable
•        Can be surface-mounted as a module
•       3-pin ARM serial wire debug (SWD) port
•        Simple yet highly flexible power supply architecture
•        Various options for easily powering the unit from micro USB, external supplies, or batteries
•       High quality, low cost, high availability
•       Comprehensive SDK, software examples, and documentation
•        Dual-core Cortex M0+ at up to 133MHz
•        On-chip PLL allows variable core frequency
•        264kByte multi-bank high-performance SRAM
•        Length (mm): 51
•        Width (mm):21
•        Height (mm):4
•        Weight: 6g.
