nRF24L01+PA+LNA Wireless 2.4GHz RF Transceiver Module with SMA Antenna

The nRF24L01 Wireless module with SMA Antenna is suitable for low-cost, ultra-long-distance applications. The module is based on Nordic Semiconductor’s nRF24L01 IC and operates in the 2.4GHz ISM band. The operational voltage ranges from 3V to 3.6V, and it can theoretically communicate across a distance of up to 1000 meters line of sight under ideal conditions. The module communicates utilizing the SPI protocol and is easily interfaced with controllers like as Arduino, Raspberry Pi, and PIC.

Because of its low cost and ease of use, the module is widely utilized in remote RC/Drone control, home automation, and even mesh networking projects.

Specifications

• Operating Voltage: 3.3V
• Current Consumption: 115mA
• Maximum output power: +20dBm.
• Power-down mode current: 4.2uA.
• Operating Frequency: 2.4GHz ISM Band
• Can support upto 6 channles
• Operating Range: 1km
• Antenna Gain: 2dbi (peak)
• 2MB rate (Open area): 520m.
• 1MB rate (Open area): 750m.
• 250Kb rate (Open area): 1100m.
• Receive Mode Current(peak): 45mA
• It uses 2.4GHz global open ISM band, with license free.

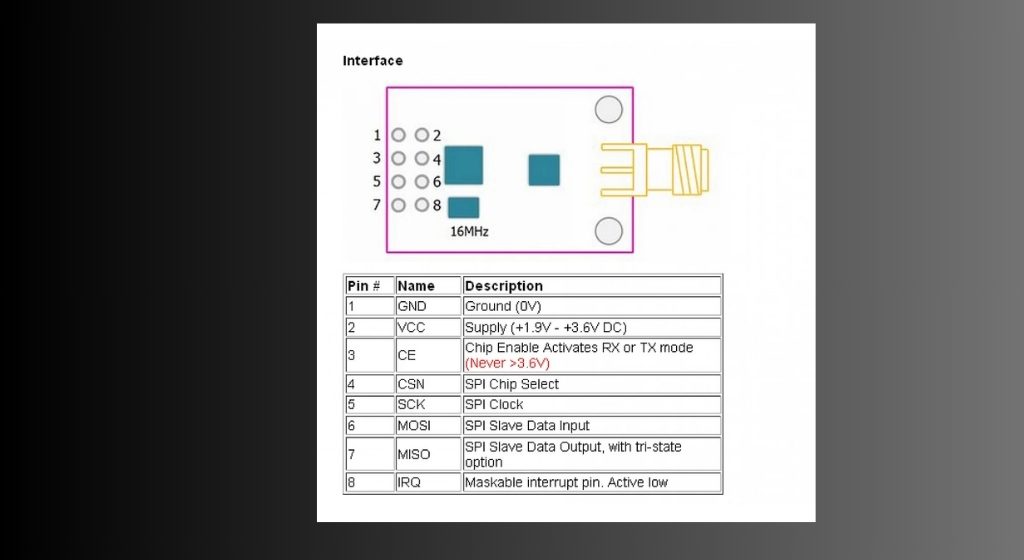

• SPI interface facilitates the communication with MCU I/O port
• Length of Antenna (cm):11cm
• Module Dimensions:49x16x13mm
• Module Weight:15g.

Package Includes:

• 1 x 2.4GHz NRF24L01 Transceiver module.
• 1 x SMA Antenna.
