13.56MHz RFID/NFC Sticker -EE1533-DC2R4

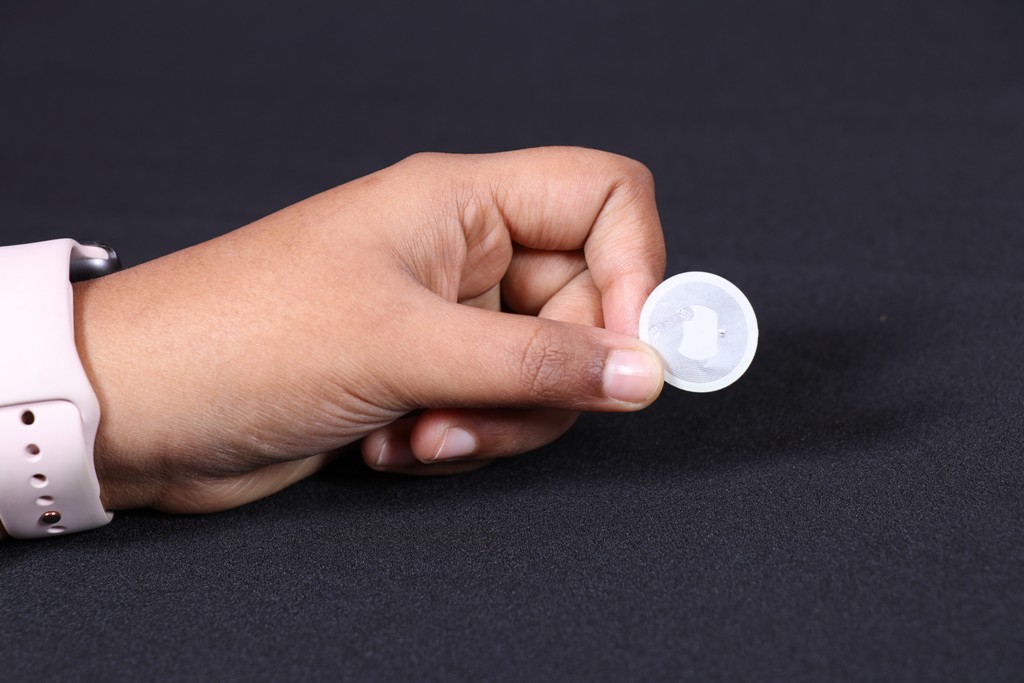

This is a blank 13.56MHz RFID/NFC tag. The tag contains a small RFID chip and an antenna, and is passively powered by the reader/writer when placed a couple inches away. These chips can be written to & store up to 144 Bytes of data in writable EEPROM divided into banks, and can handle over 100,000 re-writes.

Specification

• Working frequency: 13.56 MHZ
• Chip: Ntag213
• Physical capacity: 180 bytes
• Usable capacity: 144 bytes
• Protocol: ISO14443A
• Reading and writing distance: 1 to 5 cm
• Reading and writing time: 1 to 2 ms
• Working temperature: -20 to 55 degree, humidity of 90%
• Erase times : > 100000 times
• Data storage: > 10 years
• Reading time: 100000 times
• Diameter & Height: 25mmx0.2mm
• Weight:0.15g.
