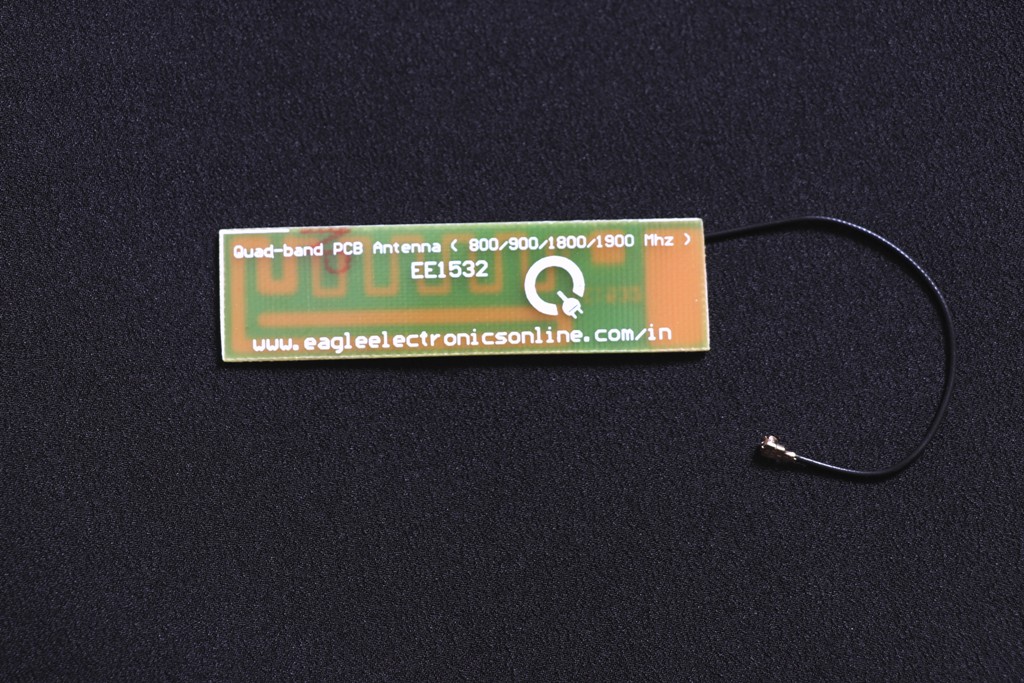

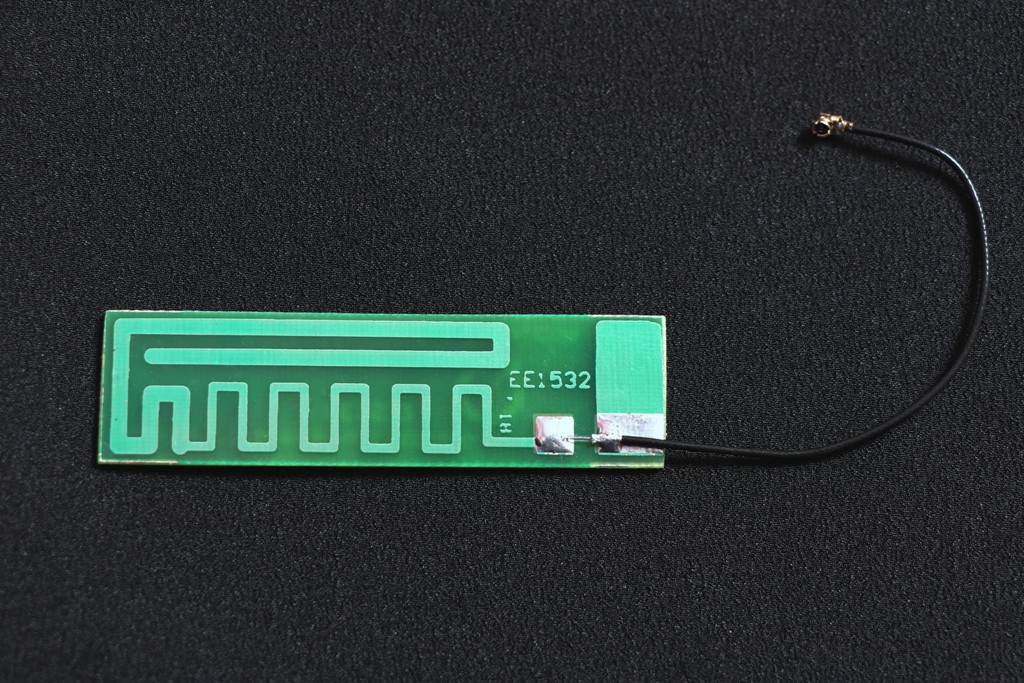

PCB 2.5dB Antenna with IPX Connector Cable

This is quad band GSM / GPRS, 3G / UMTS & ISM tuned antenna, designed to resonate to a high level at ISM 868MHz and 915MHz; GSM 800, 900, 1800, 1900 and 3G 2100MHz. This PCB antenna manages a peak gain of 2.5dBi at 2100MHz (3G) so is therefore a high performance, wide frequency band antenna, suitable for a host of wireless M2M applications that require an embedded solution. Its wide operating frequency band allows for worldwide cellular applications over the quad band GSM/GPRS networks and also high data transfer rates via 3G/UMTS.

Specifications

• Frequency Range: 800/900/1800/1900/2100MHz
• Antenna Gain 2.5dBi
• Impedance 50 Ohm
• Antenna Type: PCB Trace
• Operation Temperature – 30 °C ~ + 85 °C
• Storage Temperature – 30 °C ~ + 85 °C
• Cable Type O.D. 1.13 mm
• Polarization: Omni direction
• Connector: IPX connector (Use U.FL as mating connector)
• IPX Connector Cable length : 100mm
• Antenna PCB Dimensions: 20.7mm x 1.6mm x75mm
• Weight: 5g.
