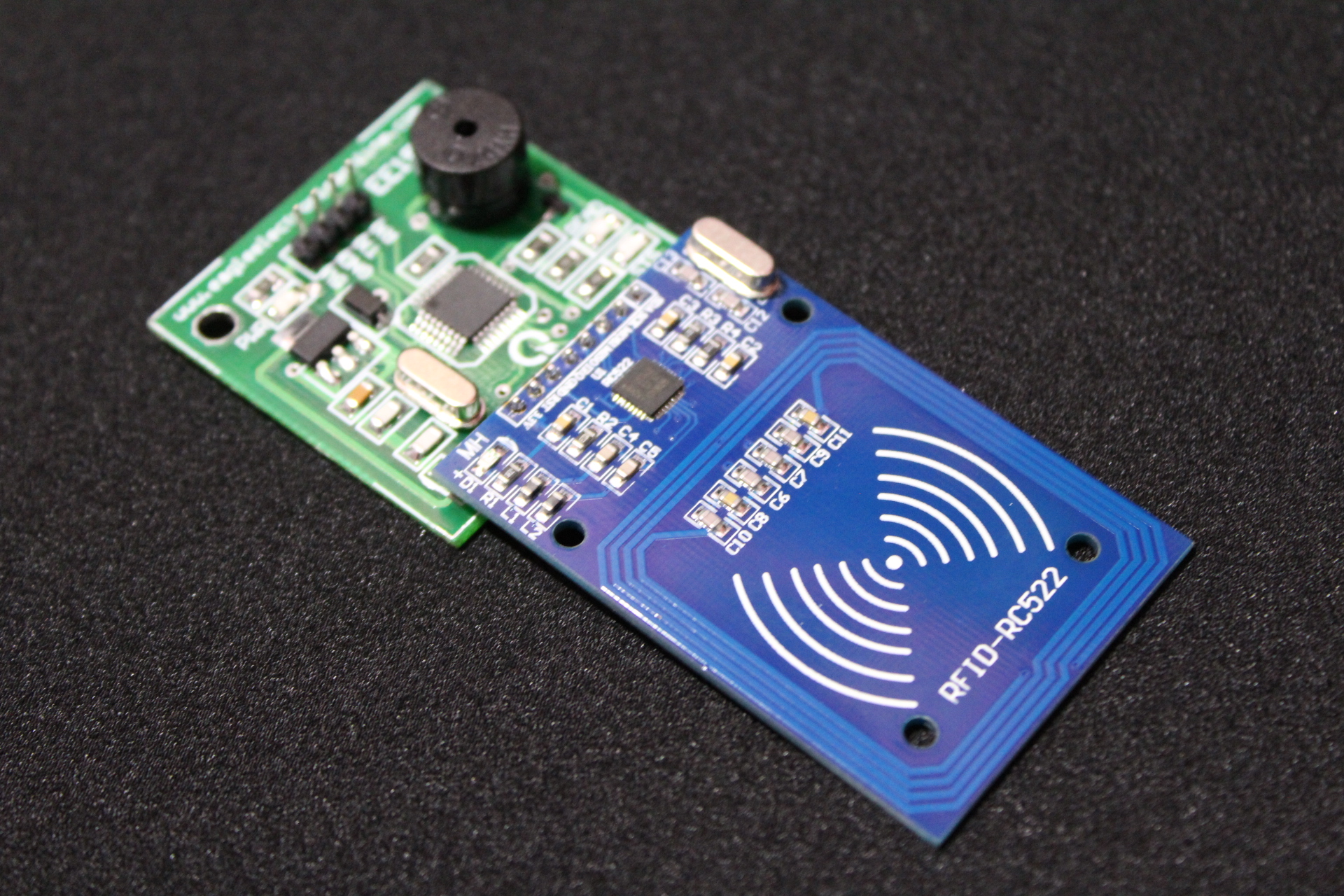

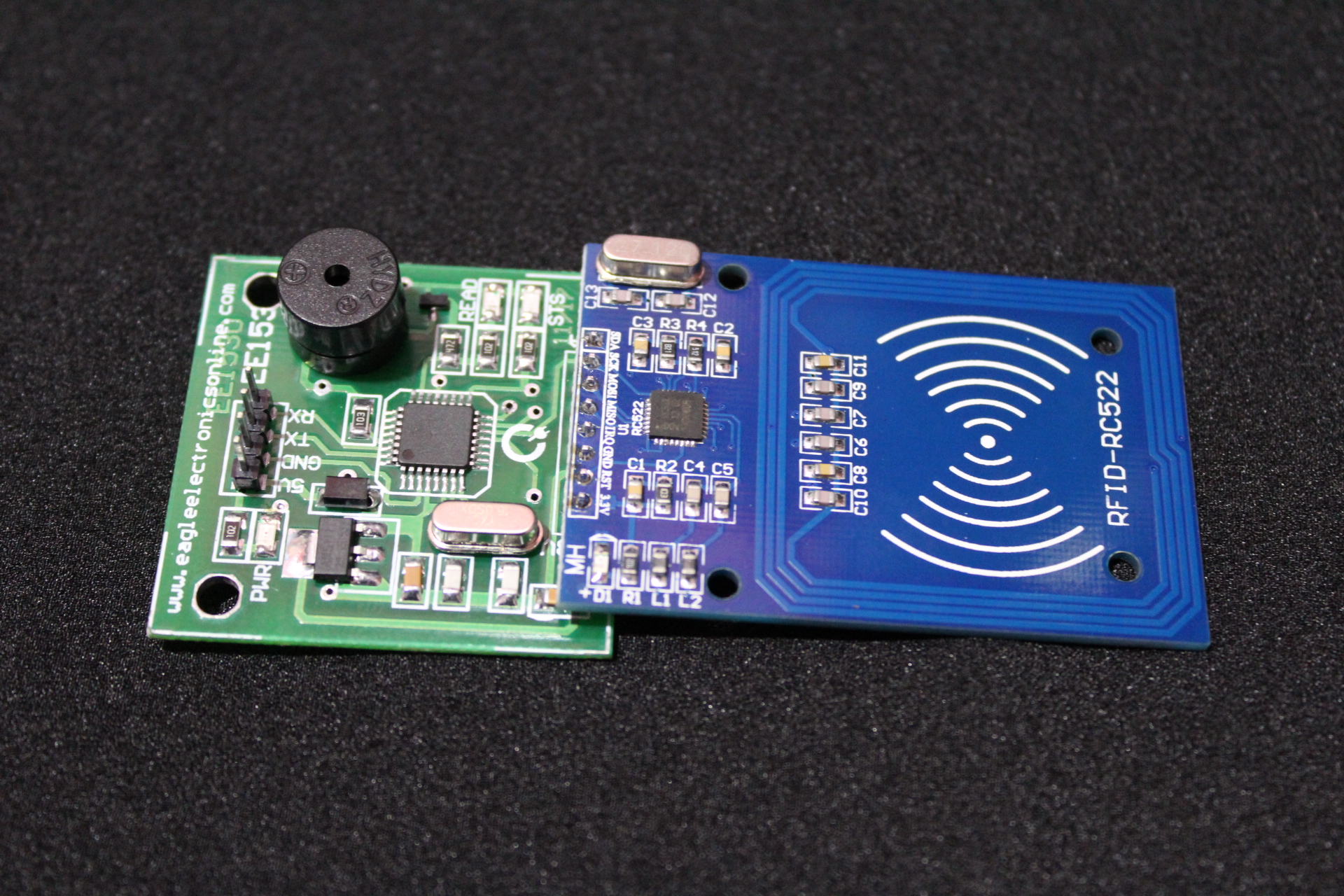

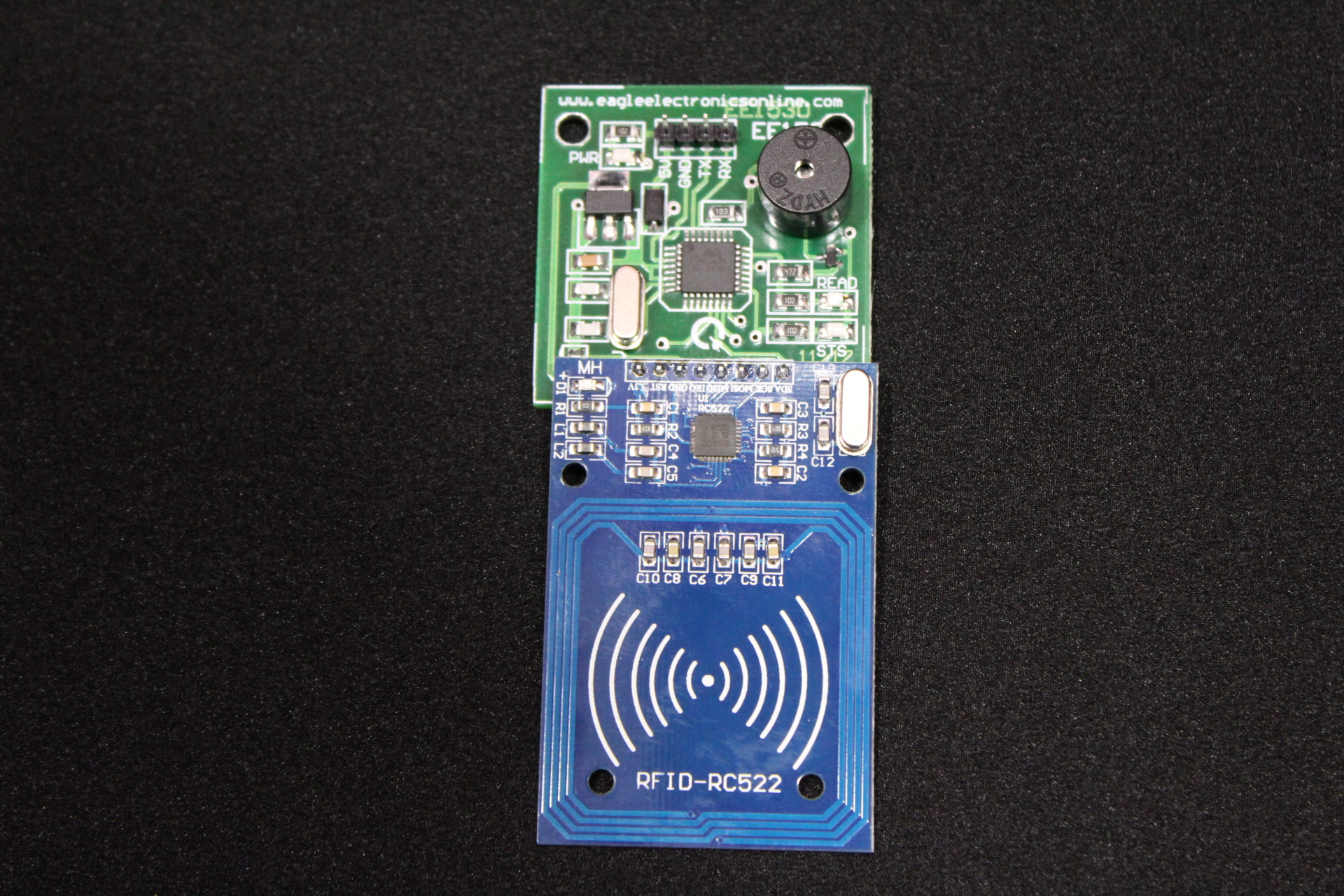

RC522 RFID Reader Mifare 13.56MHZ – Serial Output

Mifare RC522 is the high integrated RFID card reader which works on non-contact 13.56mhz communication, is designed by NXP as a low power consumption, low cost and compact size read and write chip, is the best choice in the development of smart meters and portable hand-held devices.

Specifications

• Voltage: 5VDC
• Serial Output
• UART baud rate: 9600 bps
• Onboard status LED
• Onboard Buzzer
• Card reading distance ：0～30mm （Mifare1 card）
• Operating Current :13-26mA
• Idle Current :10-20mA
• Sleep current: <80uA
• Peak current: <30mA
• Operating Frequency: 13.56MHz
• Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
• PCB Dimensions: 5x98mm
• Weight:17g

Package Includes

• 1x  A RFID-RC522 Module
• 1x The Standard S50 Blank Card
• 1x S50 special-shaped card (as shown by the key ring shape)

Downloads

MFRC522 Datasheet
