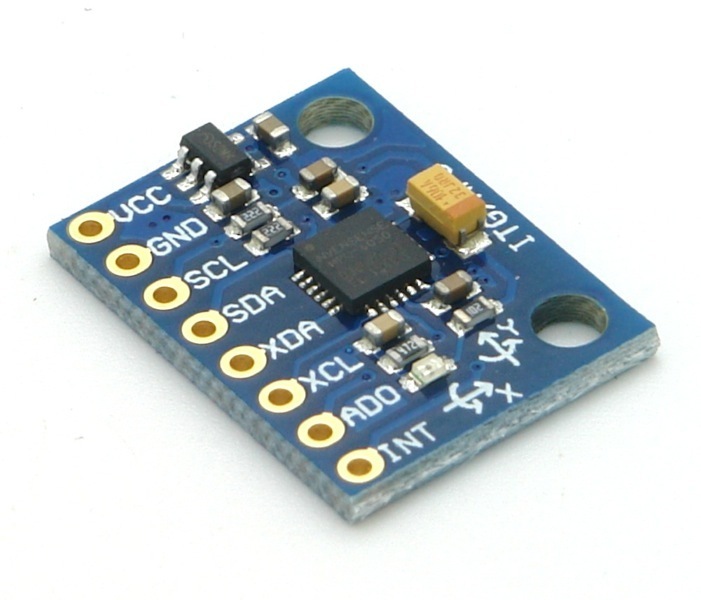

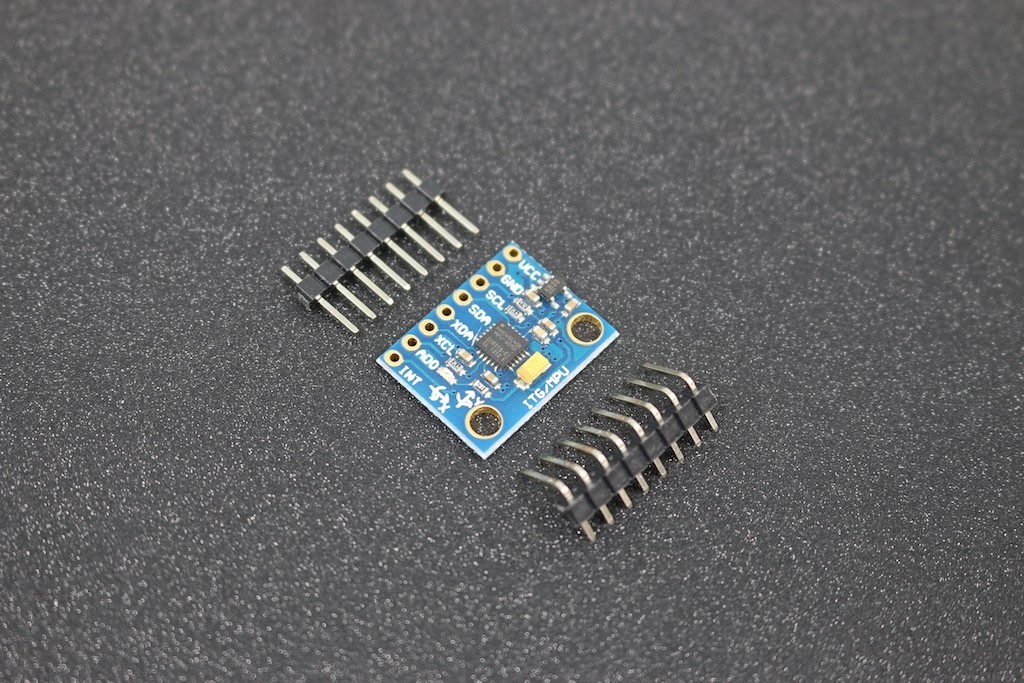

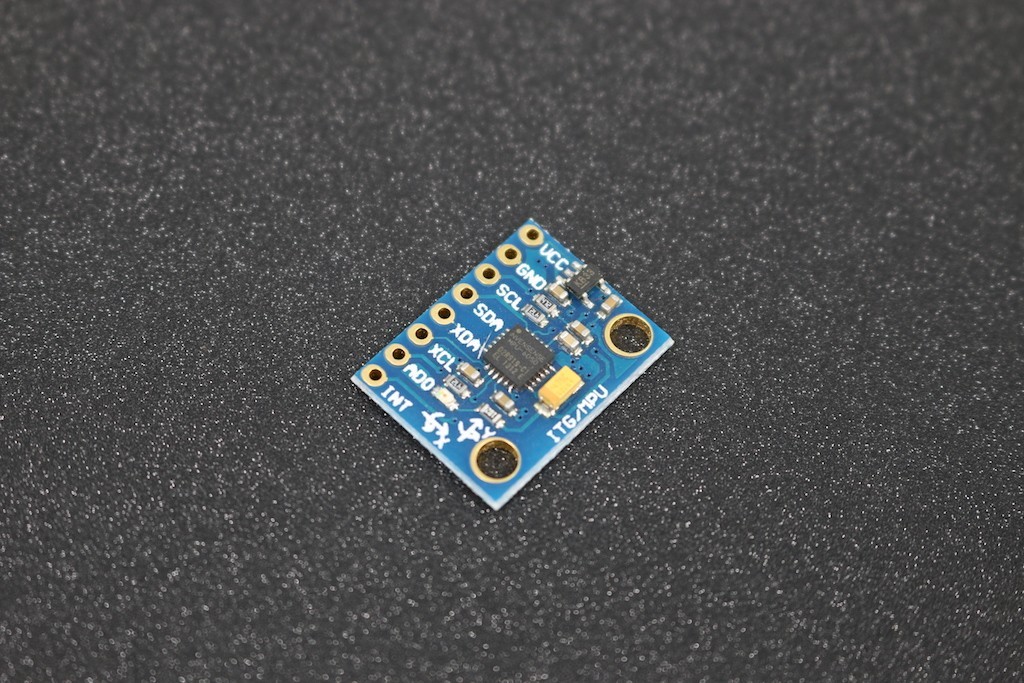

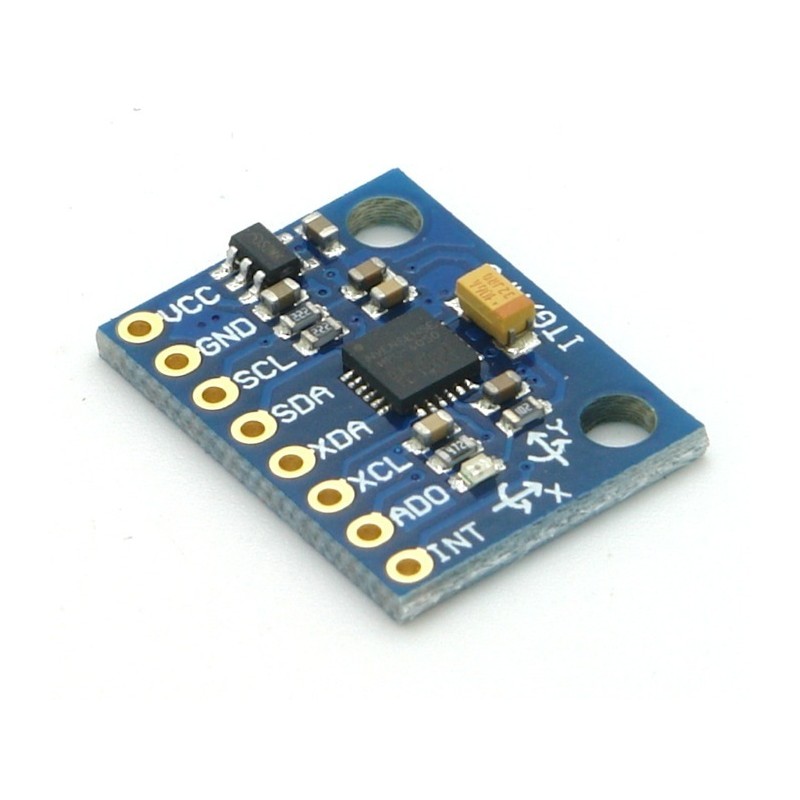

MPU-6050 Accelerometer + Gyro Sensor

The MPU-6050 is a serious little piece of motion processing tech! By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor™ (DMP™) capable of processing complex 9-axis Motion Fusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts.

Specifications

• MPU-6050 modules (three-axis gyroscope + three-axis accelerometer)
• Use the chip: MPU-6050
• Power supply :3-5v (internal low dropout regulator)
• Communication modes: standard IIC communications protocol
• Chip built-in 16bit AD converter, 16-bit data output
• Gyroscope range: 250 500 1000 2000 ° / s
• Acceleration range: 2 4 8 16g
• Immersion Gold PCB machine welding process to ensure quality
• Pin pitch 2.54mm
• MPU-6050 modules (three-axis gyroscope + three-axis accelerometer)
• Size approximate (LxWxH): 16x3x21mm
• Weight: 3g.

Applications

• Gestures and Movements Detection
• Motion-activated user interface
• Gaming Human Interface
• Navigation Boards
• Platform Stability
• Accurate angular-rate detection
