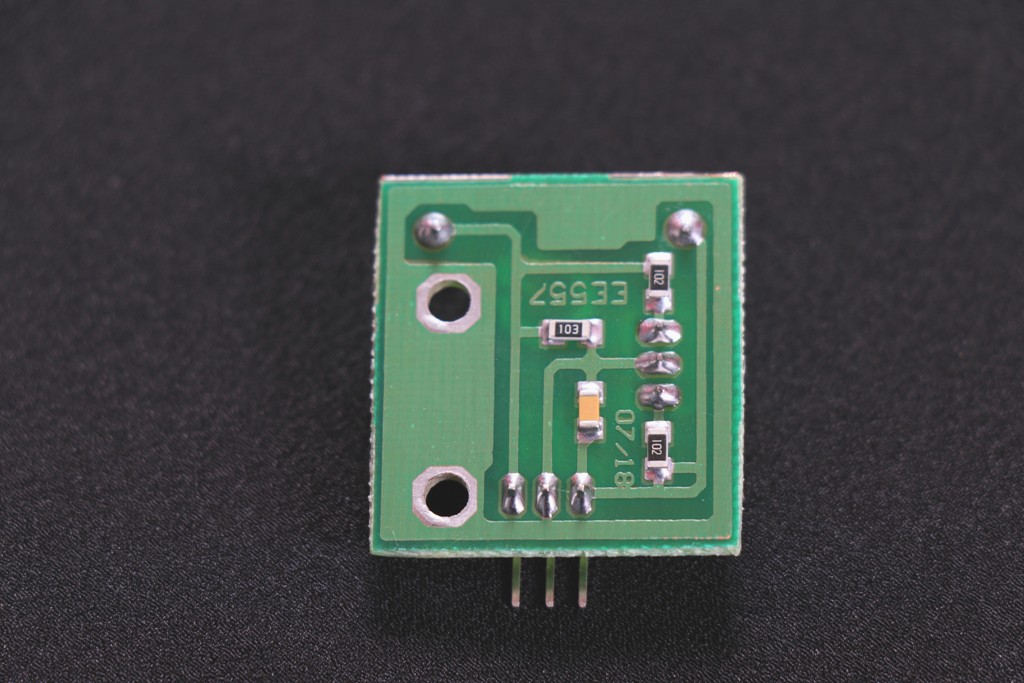

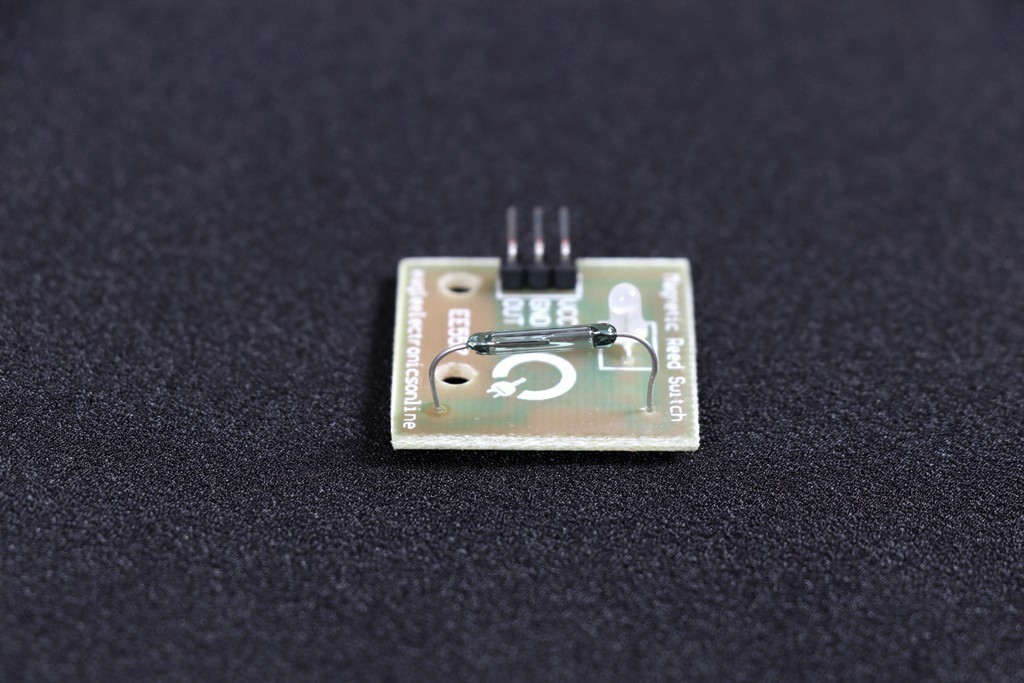

Magnetic Reed Switch Module

This is a Magnetic reed switch Module.When the device is exposed to a magnetic field, the two ferrous materials inside the switch pull together and the switch closes. When the magnetic field is removed, the reeds separate and the switch open. This makes for a great non-contact switch. This switch can carry up to 0.5A.

Specifications

• Input Voltage:0-300VDC
• Onboard LED indicator
• Switching Voltage: 300 VDC
• Breakdown Voltage: 150 VDC Max.
• Contact Rating: 10W Max.
• Switching Current: 0.5A Max.
• Operate time: 0.45 ms Bounce time: 0.25 ms Max.
• Release time: 0.35 ms
• Sensor Glass Dimension: 12x2x54.5mm
• PCB Dimension:28×1.5x30mm
• Weight: 3g.

.
