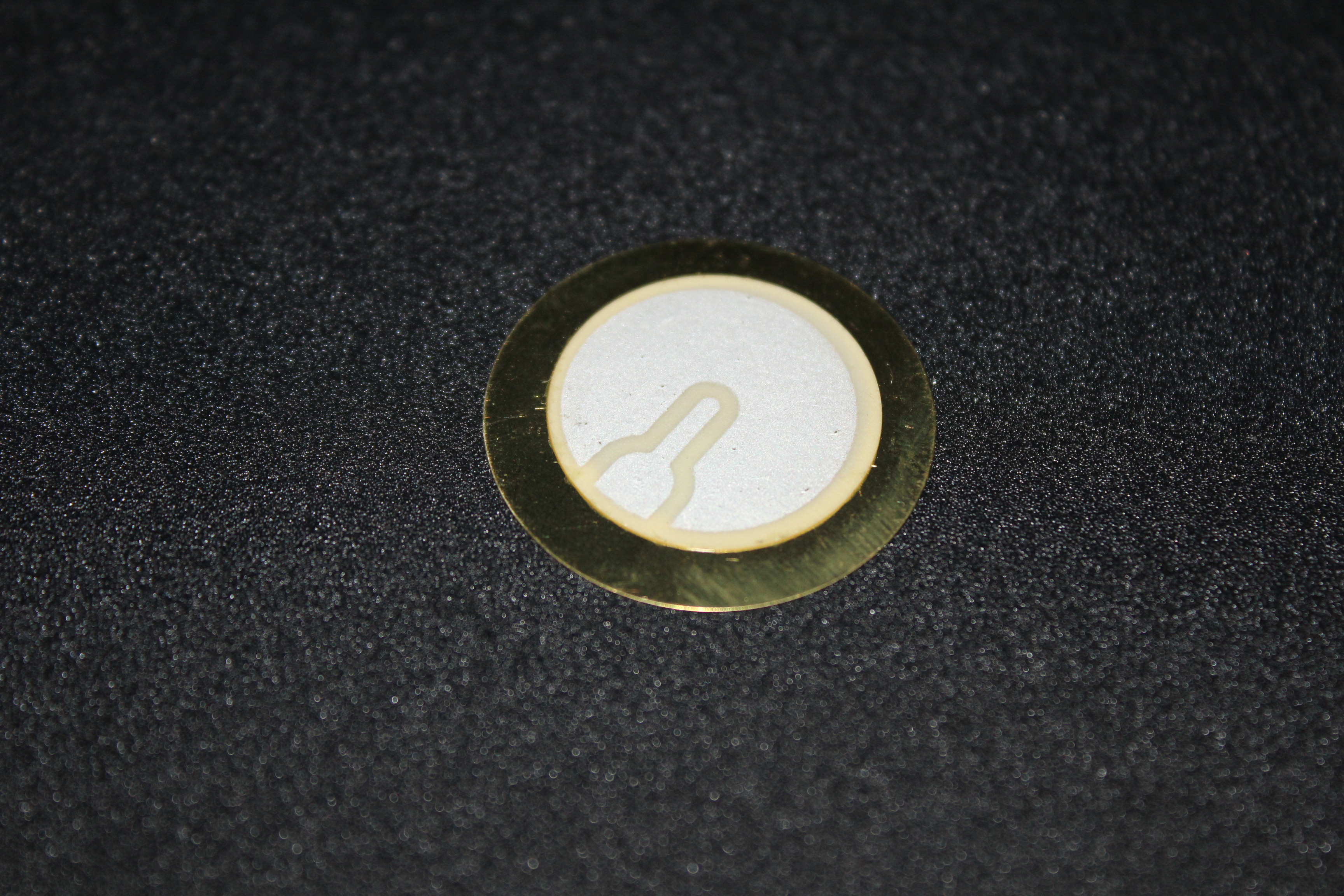

Piezo Electric Transducer – 27mm

Specification

• Resonance Frequency: 4.6 Khz +/- 0.5 Khz
• Resonance Impedance: 200 Ohms
• Capacitance: 20nF +/- 30% at 1 Khz
• Plate material: Brass
• Element thickness: 0.54 mm
• Plate Thickness: 0.3 mm
• Piezo Plate Diameter: 27 mm
• Piezo Element Diameter: 19.7 mm
• Weight: 1.5g
