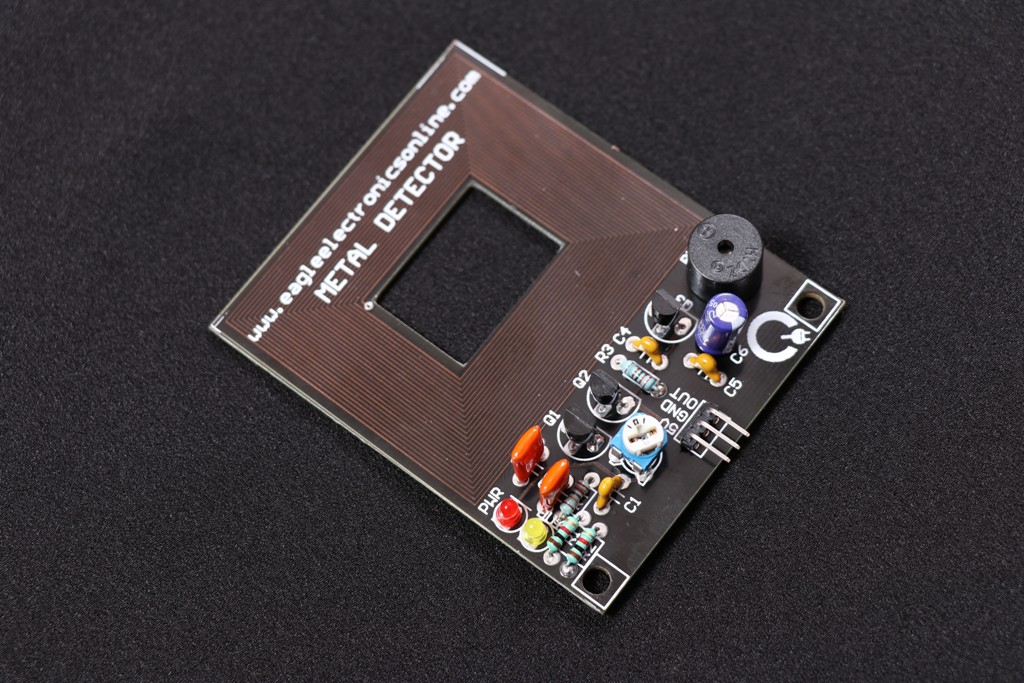

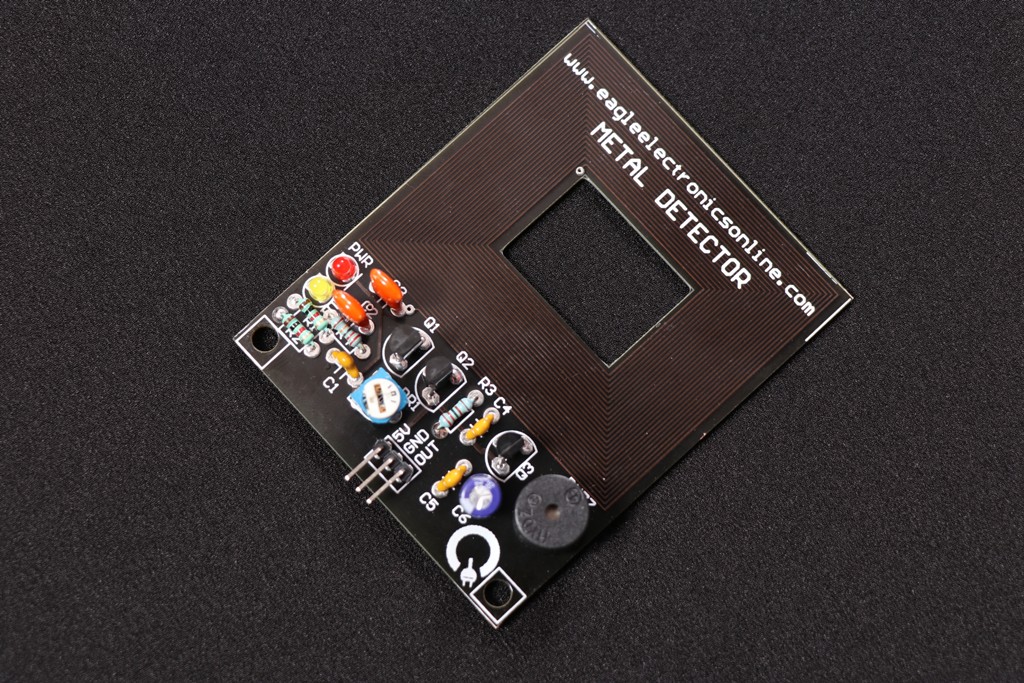

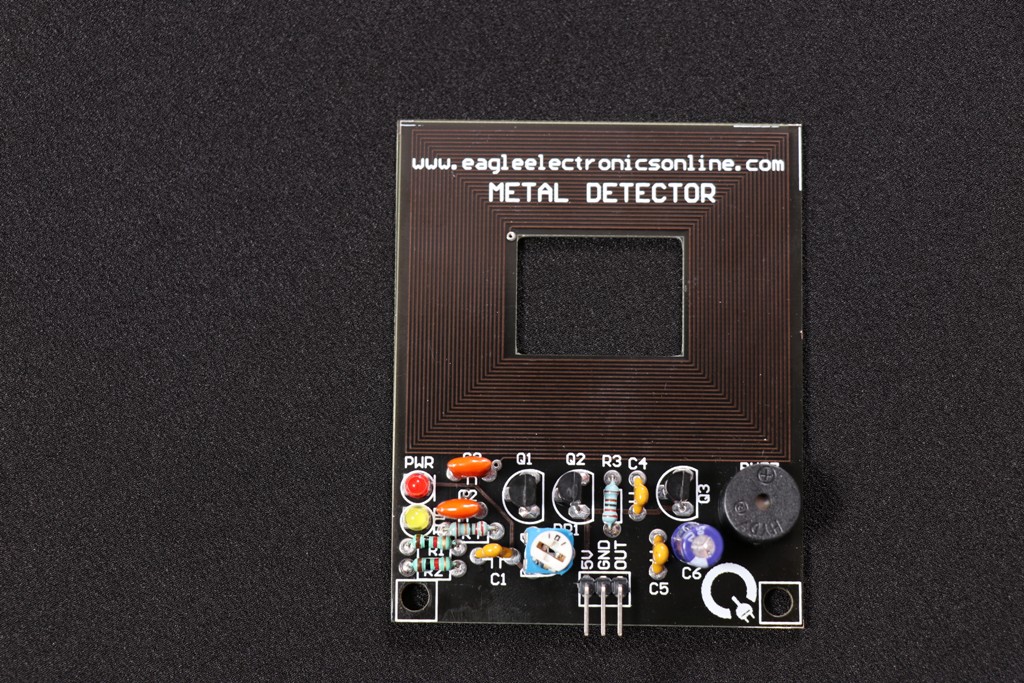

Metal Proximity Detecting Sensor

You can use LC Metal detector non-contact metal induction detection module as a metal detector. When it approaches any metal, it makes a sound and Digital output. This is a module specifically designed to detect metal. The module operates by inducing currents in metal objects and responding when it occurs. A nice onboard buzzer signals when it detects something and an onboard potentiometer allow adjustment of sensitivity. This Module compatible with any MCU, Arduino or Raspberry boards.

Specifications

• Supply Voltage: 5VDC
• Detecting Distance: 10mm
• Digital Output
• Output Current : 300 mA
• Onboard Buzzer
• Onboard Power and output indicate LED, s
• Onboard sensitivity adjustment potentiometer
• Detect Object: Metal
• PCB Dimension:63×1.5×78.5mm
• Module Weight: 19g.
