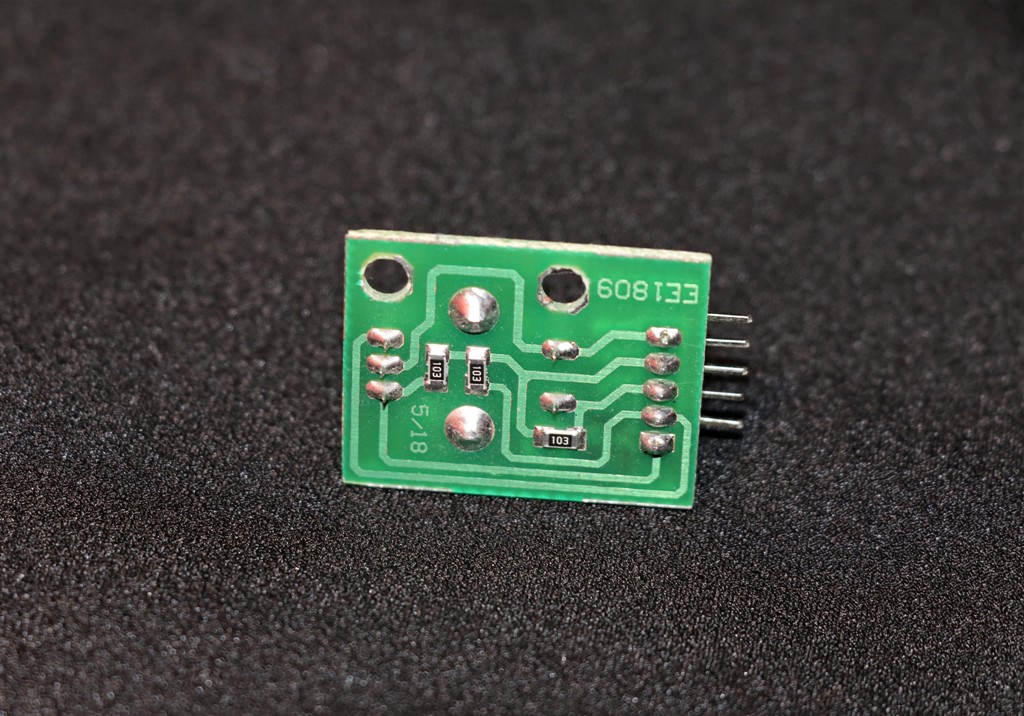

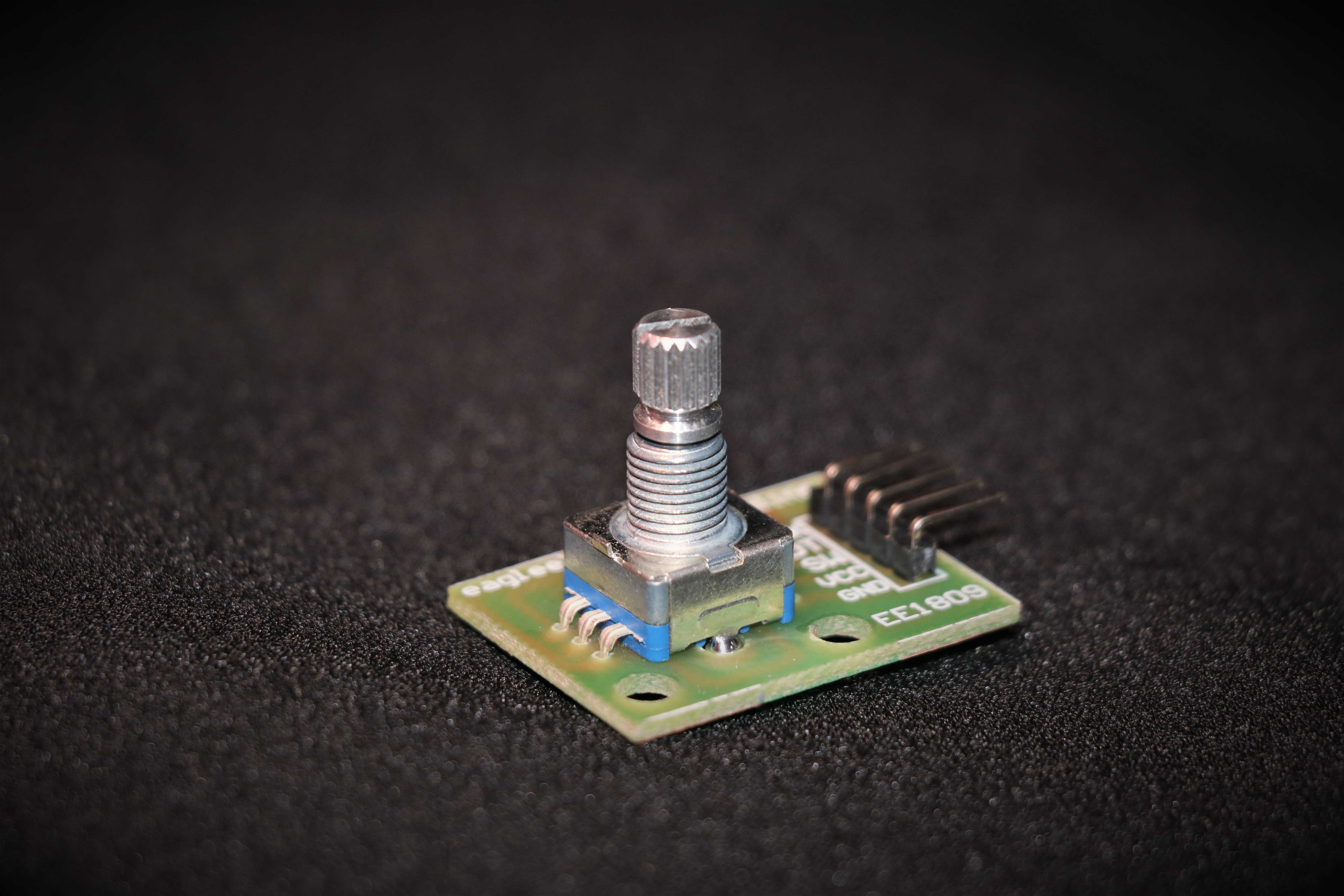

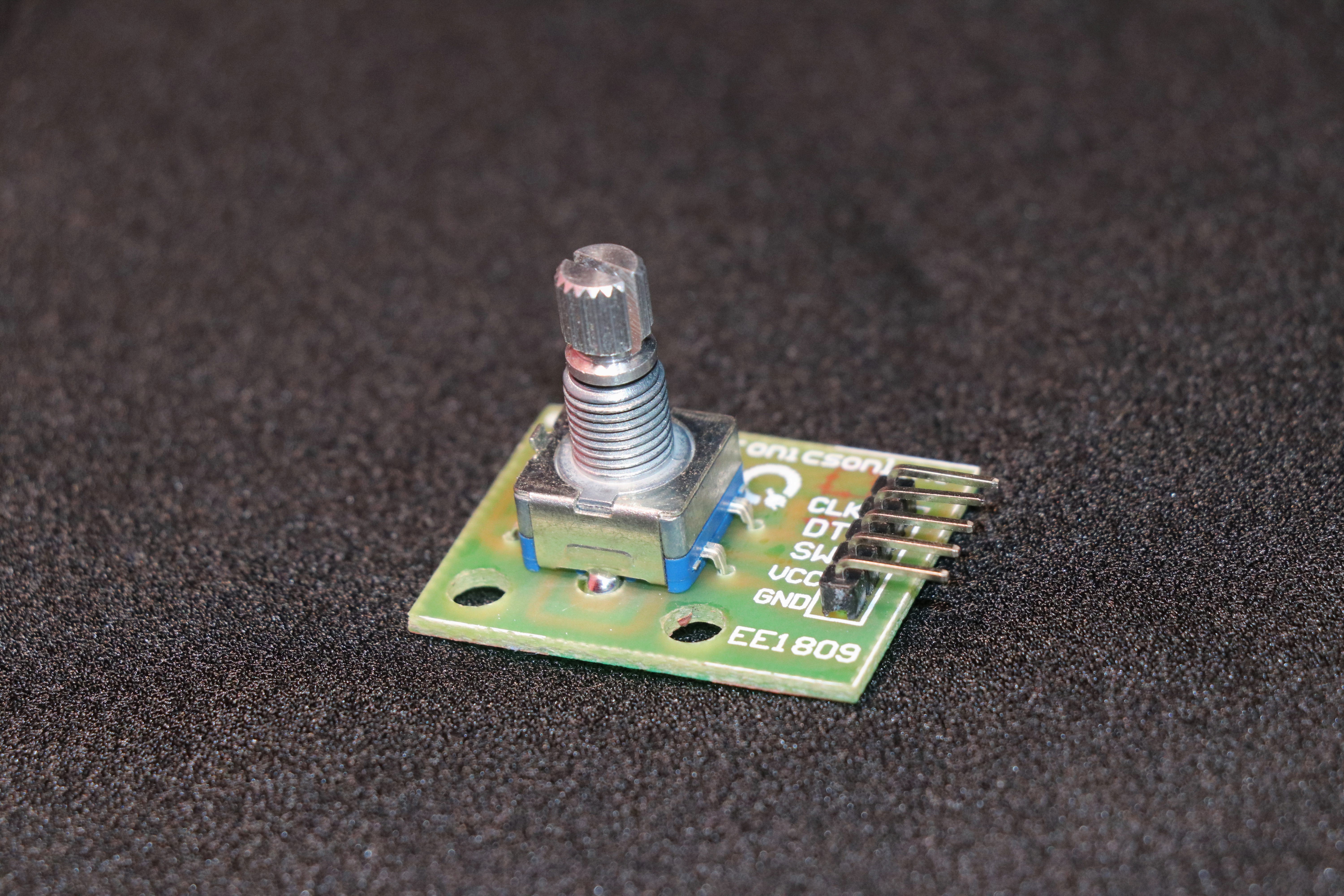

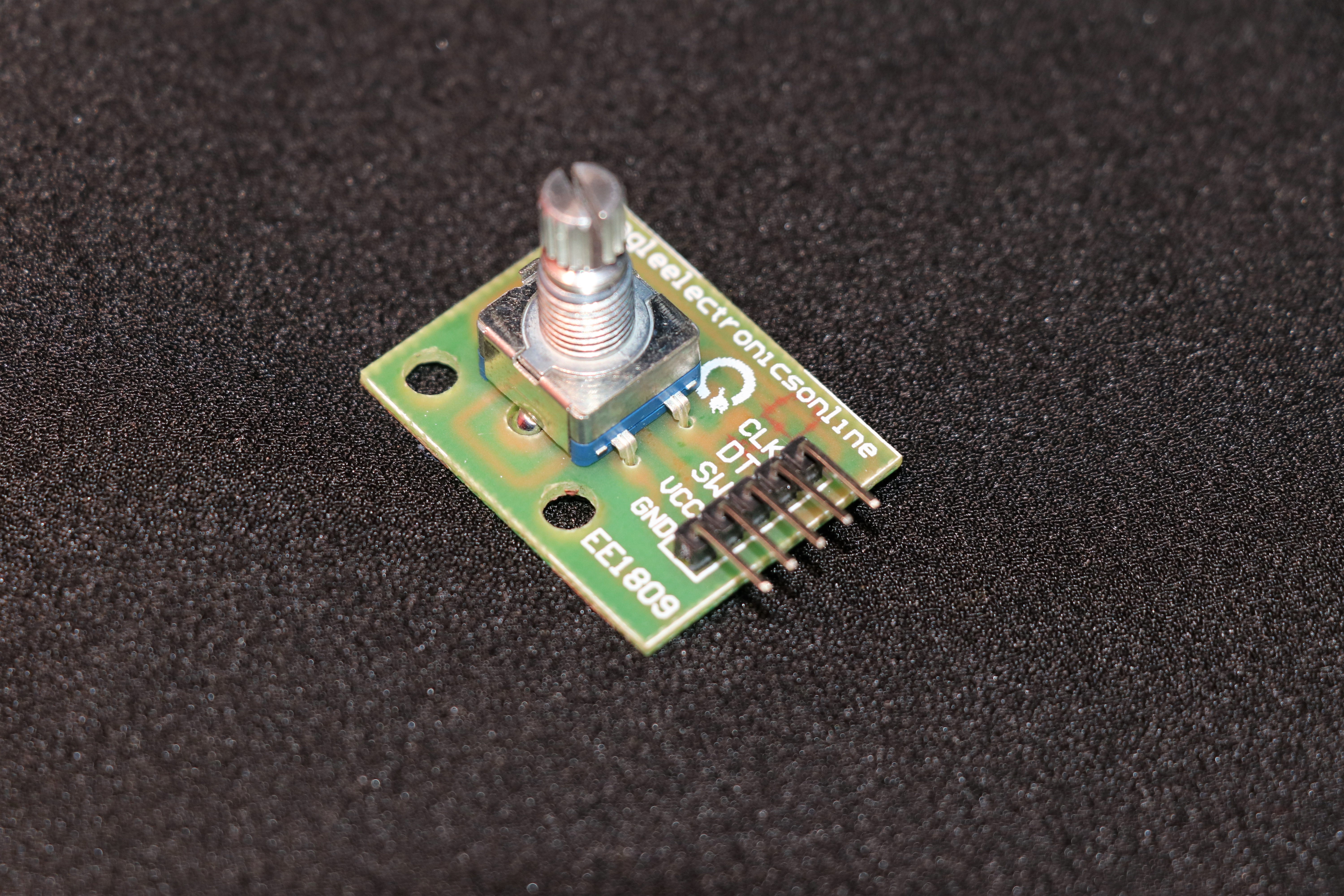

Rotary Encoder Module KY-040

A rotary encoder is an incremental electromechanical component with a shaft that converts the angular position or motion of a shaft or axle to digital code. The output of incremental encoders provides information about the motion of the shaft, which is typically further processed in processor / controllers into information such as speed, distance, and position. The shaft has unlimited 360 degree rotation.

Specification

• Operating Voltage: 3.3V ~ 5V
• Full Rotation Angle: 360 degrees (no stop point)
• Number of pulse: 20
• Rotation Life: 30000 ± 200 Cycles
• Contact Resistance: ≤ 100mΩ
• Insulation Resistance: 100MΩ or more
• Oscillation: <2ms Press
• Working Temperature: -40 ℃ ~ +85 ℃
• Module PCB Size: 24.5mm x 1.6mm x 32.5mm
• Weight: 11g.

Downloads

Arduino Example Code

Schematic
