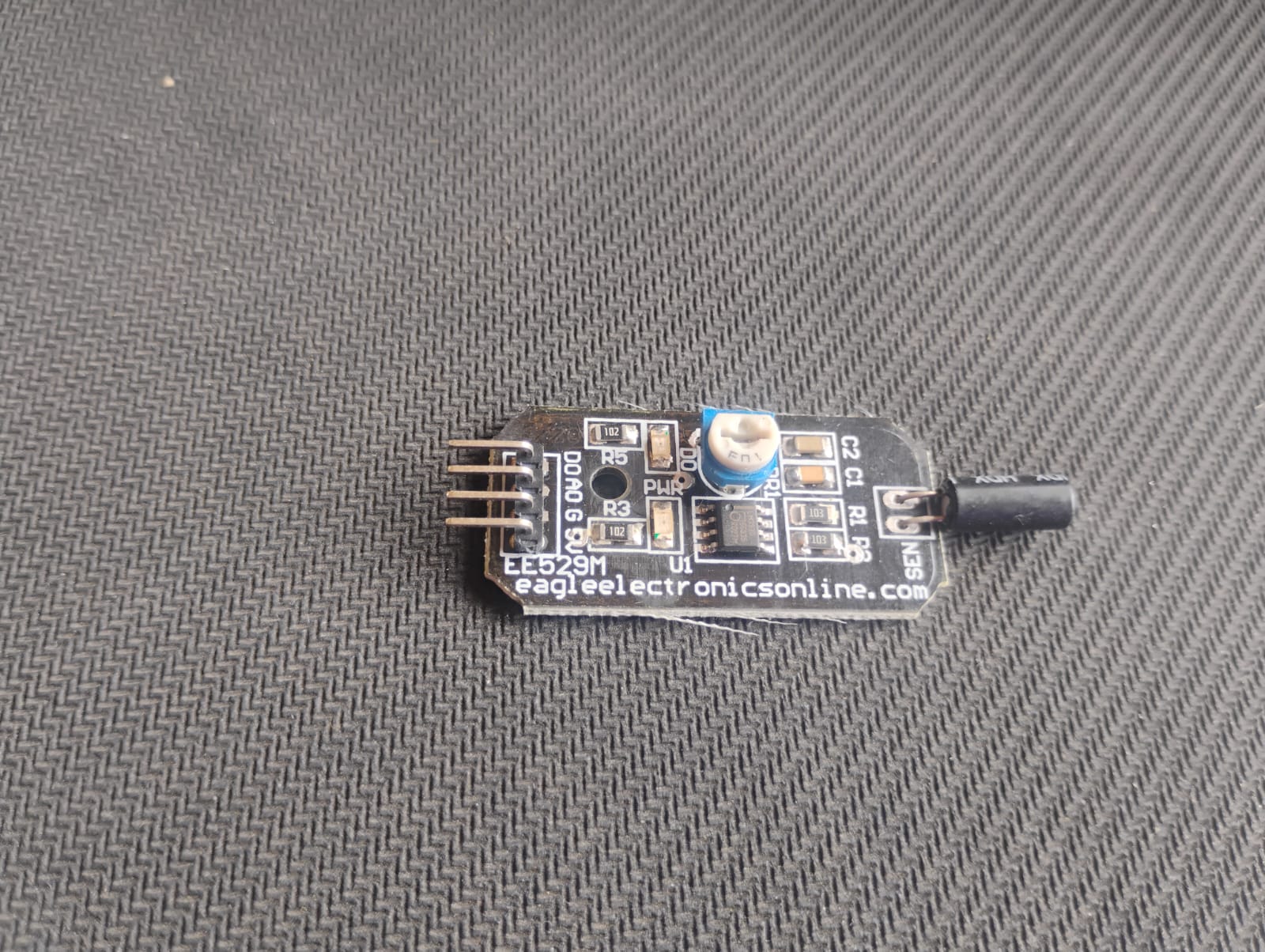

Tilt Sensor Module

The tilt sensor is a component that can detect the tilting of an object. However it is only the equivalent to a pushbutton activated through a different physical mechanism. This type of sensor is the environmental-friendly version of a mercury-switch. It contains a metallic ball inside that will commute the two pins of the device from on to off and vice-versa if the sensor reaches a certain angle.

Specifications

• High sensitive angle switch SW-520D as the sensor.
• Working voltage 3.3V-5V
• Digital switching output (0 and 1)
• Wide voltage LM393 comparator
• Sensor the angle tilt degree: 15~45 degree
• Sensitivity adjustable
• Module PCB Size (LxWxH in mm): 19×1.5x43mm
• Module Weight: 4g.

Documents

Datasheet

Arduino Tutorial

Links:

http://jmp.sh/v/dLQOLH1fQGK9JXJMJ6bt

https://www.arduino.cc/en/Tutorial/TiltSensor
