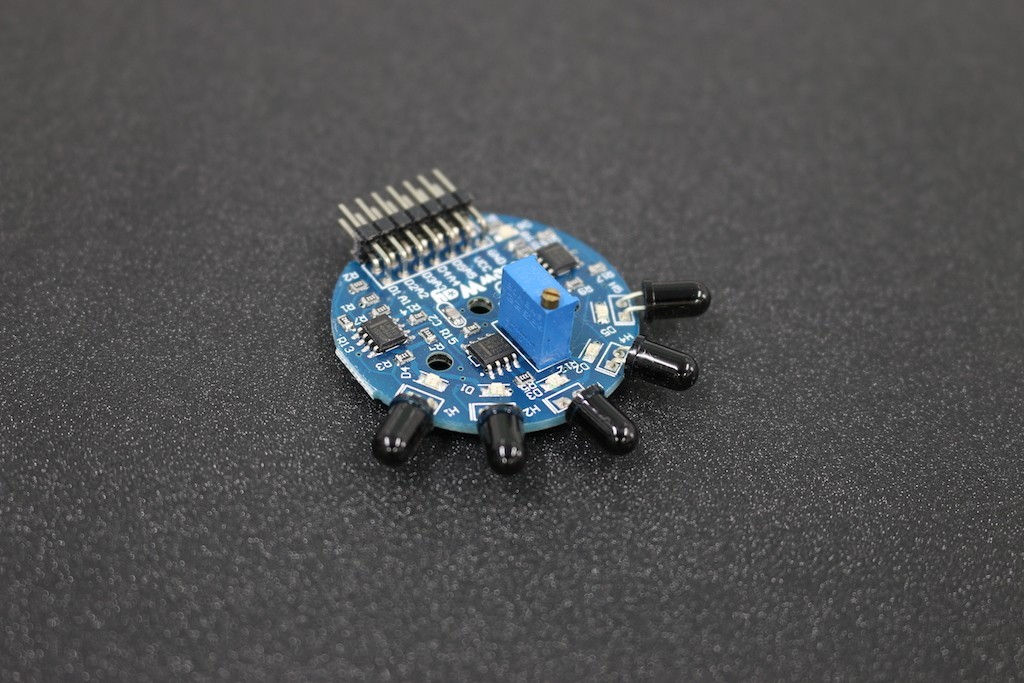

5 Channel Flame Sensor Module

This module will come in handy if you require a robot that can detect any nearby fire. Five flame sensors that are positioned at a 30 degree angle are used to detect fire.

This module outputs both a digital signal, which is easier to use and more accurate than an analogue signal, and you may modify the digital output sensitivity using the onboard potentiometer. This sensor is more exact than other flame sensors thanks to the high-precision resistors and the 5 LED indicators, which are useful for troubleshooting.

Flame and radiation sensitivity exists in this module. It can also identify regular light sources with wavelengths between 760 and 1100 nm. 80 cm is the distance at which a lighter flame is tested; the greater the flame, the greater the test distance.

Specifications

• Operating Voltage: 3.3V – 9V
• Detecting range: >120 degree
• Analog and digital outputs
• On-board potentiometer and indicators
• 1% resistors to make this module more reliable and precise
• Operating Voltage: 3.3V – 9V
• Board Diameter: 40 mm.
• Dimension(mm): 40 x 57 x 15 mm.
• Weight:7g.
