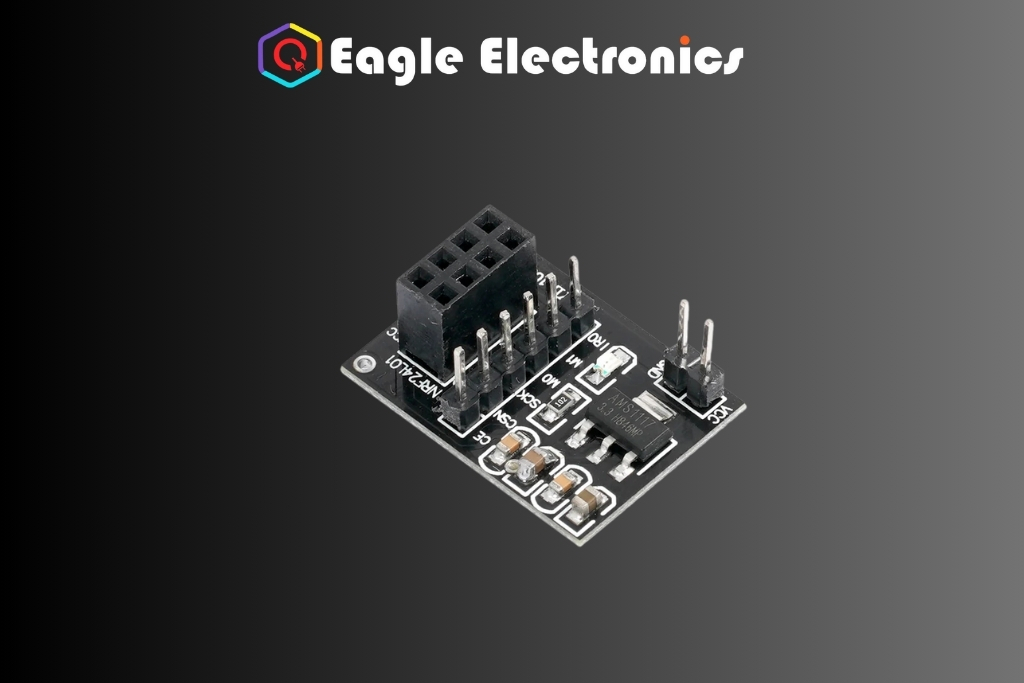

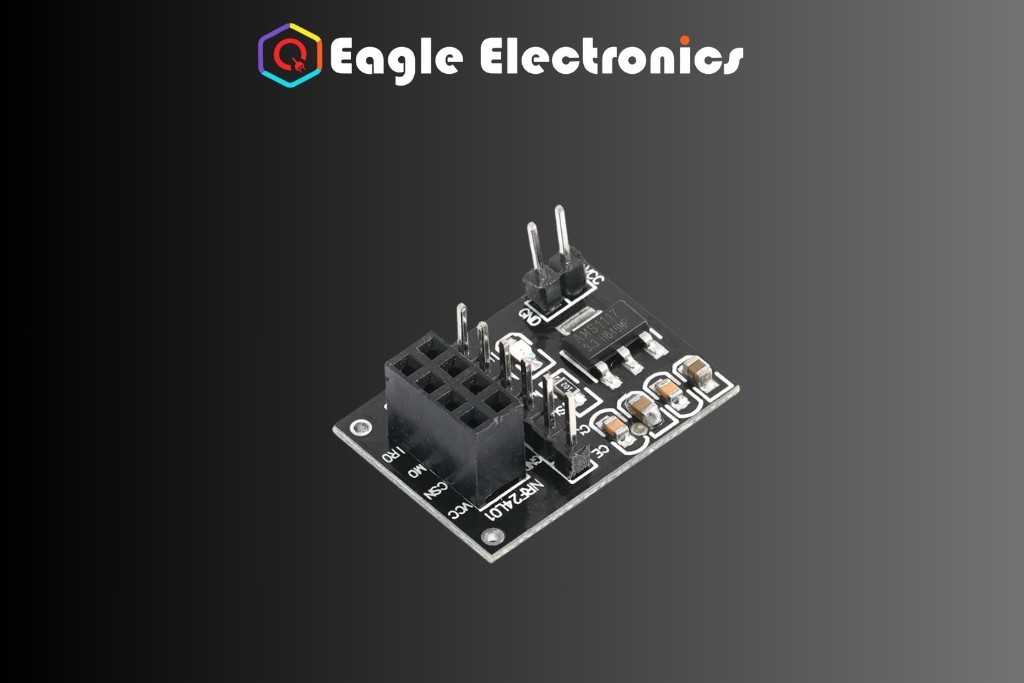

3.3V Adapter Board for 24L01 Wireless Module

The 3.3V VCC Adapter Board for NRF24L01 Wireless Transceiver Module allows you to use NRF24L01 type transceivers on 5V systems such as Arduino.
The device controls the 3.3V input to 1.9~3.6V DC and uses bypass capacitors to provide stable operation. The NRF24L01 uses the Enhanced Shock Burst (ESB) protocol to enable two-way data packet communication, including packet buffering, packet acknowledgement, and automatic retransmission of lost packets.

Specifications

• Input Voltage: 5V DC
• Output Voltage: 1.9~3.6 DC
• Current: 12.3 mA
• It’s for 8 Pin NRF24L01+ Module
• A simple socket board is for the NRF24L01 wireless module
• On-board AMS1117-3.3 chip
• Small power on SMD LED indicator
• Module Dimensions:26x19x12mm

Module Weight:3g
