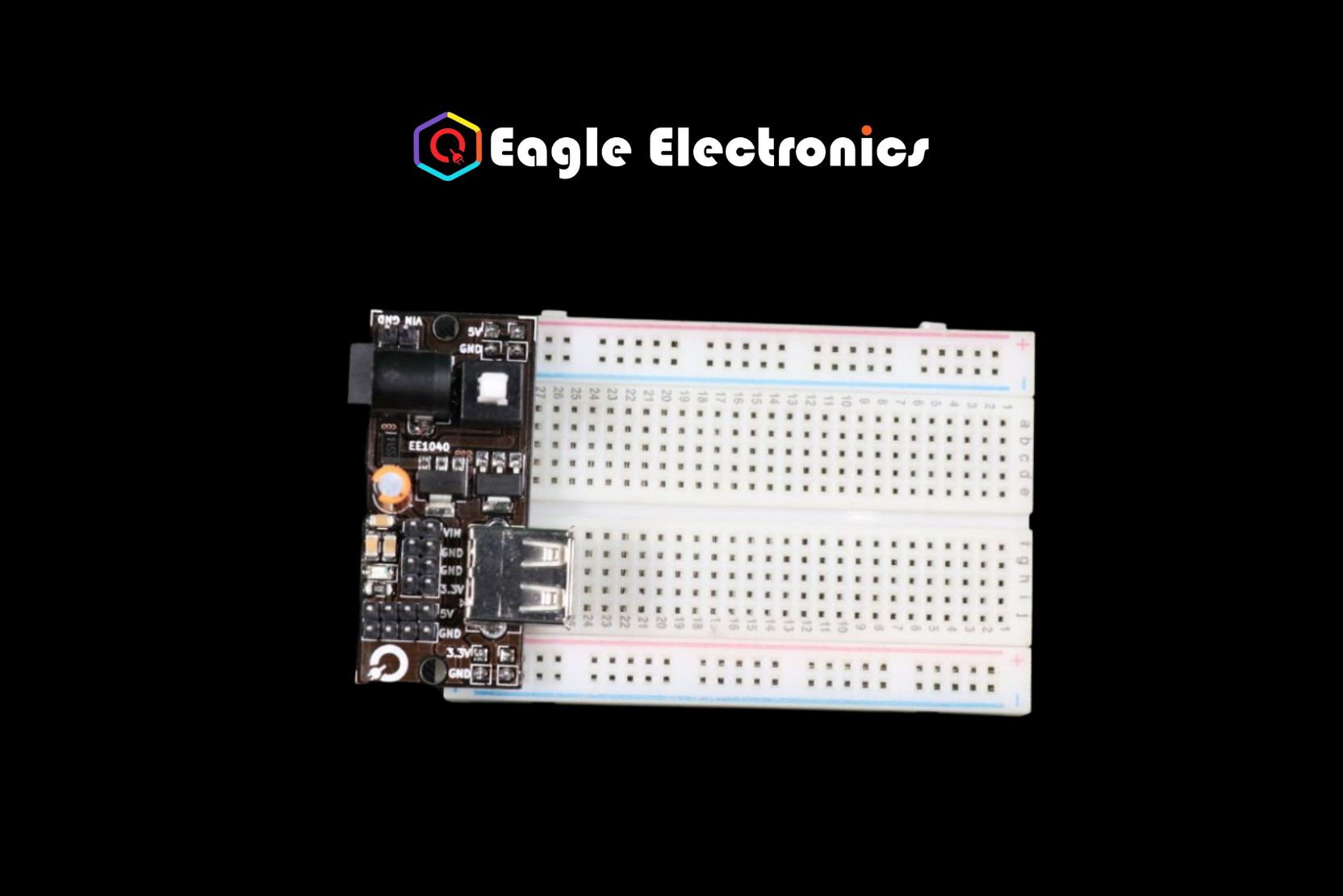

3.3V/5V Breadboard Power Supply Module

This 3.3V/5V breadboard power supply module includes a multipurpose female USB connection and offers dual 5 V and 3.3 V power rails.
The 3.3V/5V breadboard power supply module can accept 6.5V to 12V input and produce 3.3V and +5V. It also has reverse polarity safety and fits snugly into a typical 400- or 800-tie-point breadboard.
Additionally, the module can enter data via the USB port or output 5 volts on that connector. For experimenters who need to test or prototype electronic circuits on a breadboard, this is a must-have item.

Specifications

•        Input voltage: 6.5-12 V (DC) or USB power supply
•        Output voltage: 3.3V&5V
•        Maximum output current: <700 Ma
•        On-board two groups of 3.3V, 5V DC output plug pin,
•        On-board on/off Switch
•        Module Dimensions(LxWxH in mm): 52x17x29mm
•        Weight: 9g.
