Product details

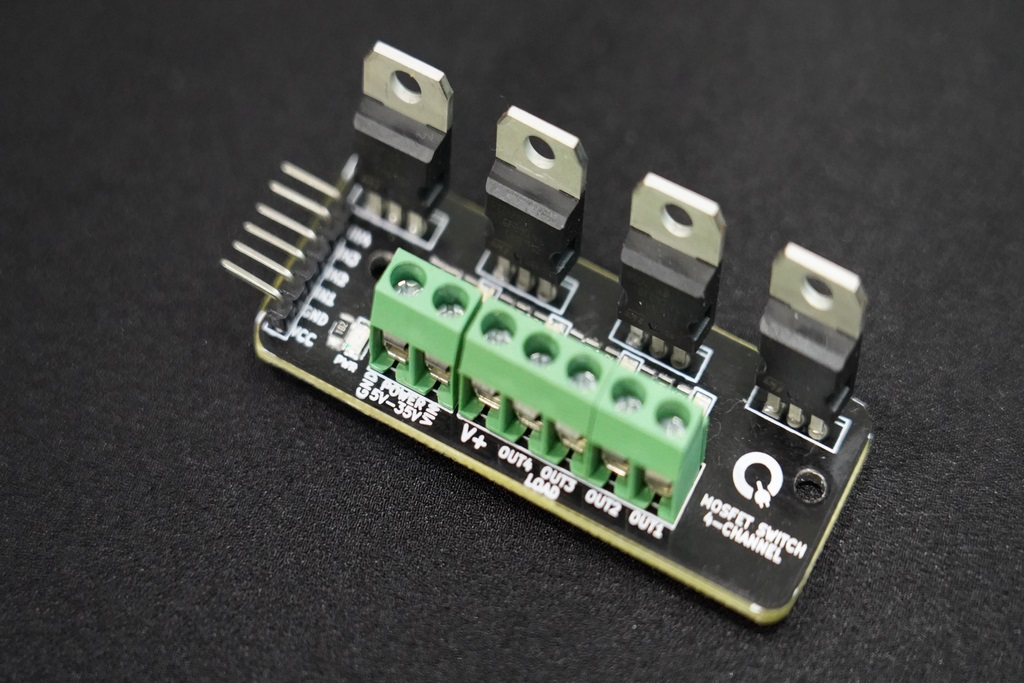

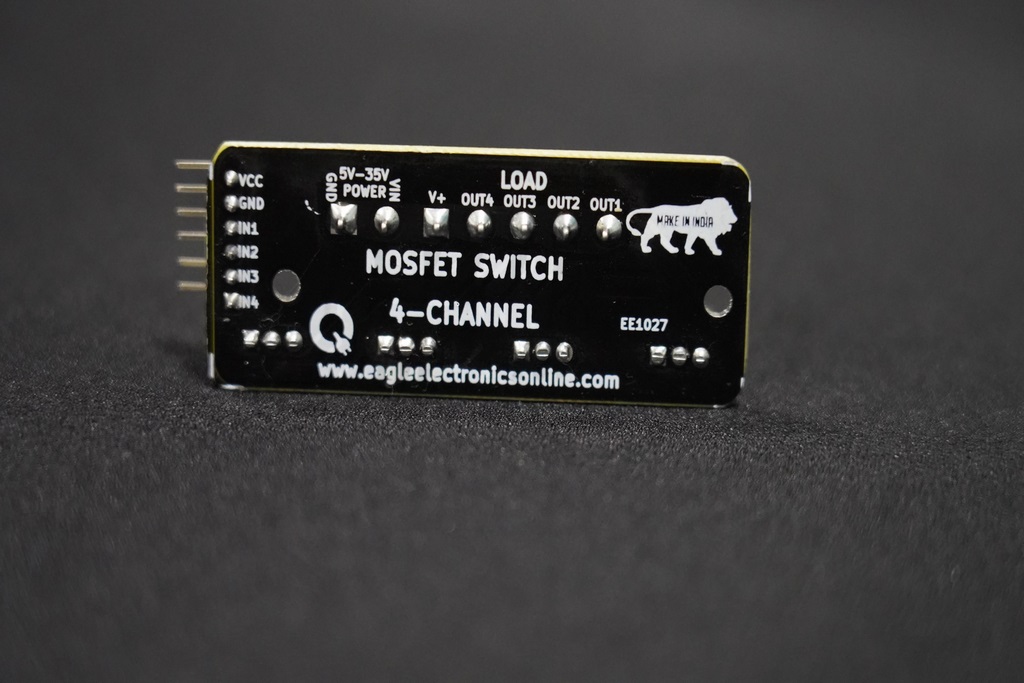

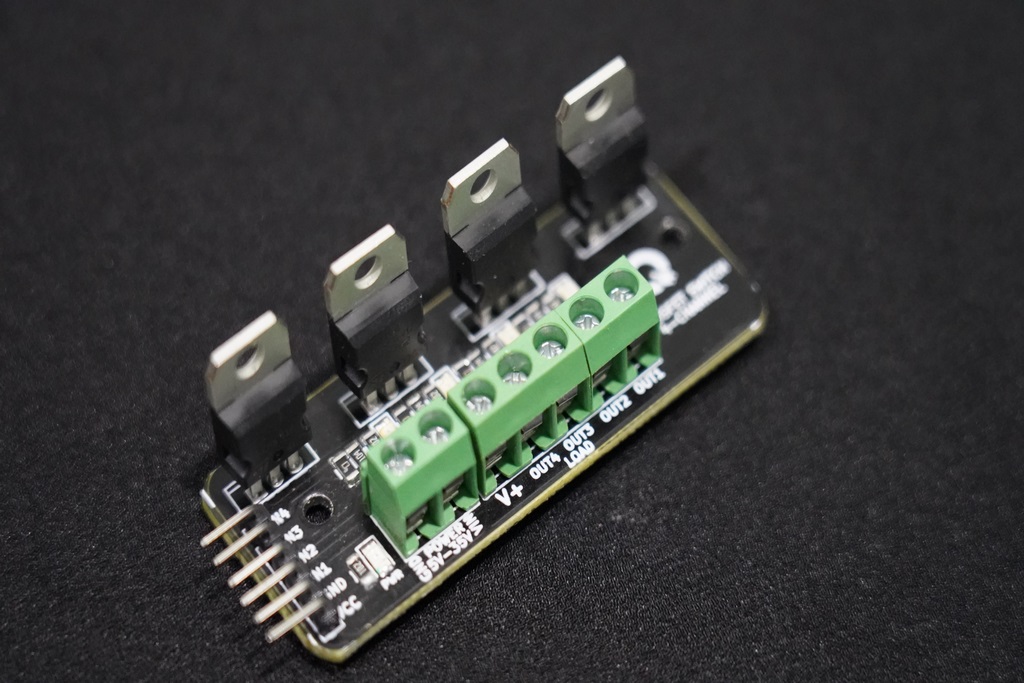

P55NF06-4Channel MOSFET Driver Module is a breakout board for the P55NF06MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller.
Here is a simple breakout board for the P55NF06 MOSFET. Easy hook-up to your Arduino or another 3.3V-5V microcontroller. Pulse current through a PWM pin, and use this to control a pump, LED, or other DC device at up to 35V, and ~50A.
Its main purpose of this P55NF06 MOSFET Driver Module is to provide a low-cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface with your load an external power source. An LED indicator provides a visual indication of when your load is being switched.
Specifications
- Input Signal Voltage: 3.3 – 5V.
- Ports: Digital Level
- Input Load Voltage:5V-35V
- Output load voltage: 0-30 V.
- Output Channel:4
- Output load current per channel: <50A (1A above need to add heat sink).
- Platform: Arduino, MCU, ARM, raspberry pi.
- Using original P55NF06 Power MOSFET, you can adjust the output PWM
- The board size: 25.8mm * 64.4 mm
- Weight:20g.
