Hi-Link AC-DC Power Module HLK-PM01 230V to 5V /3W

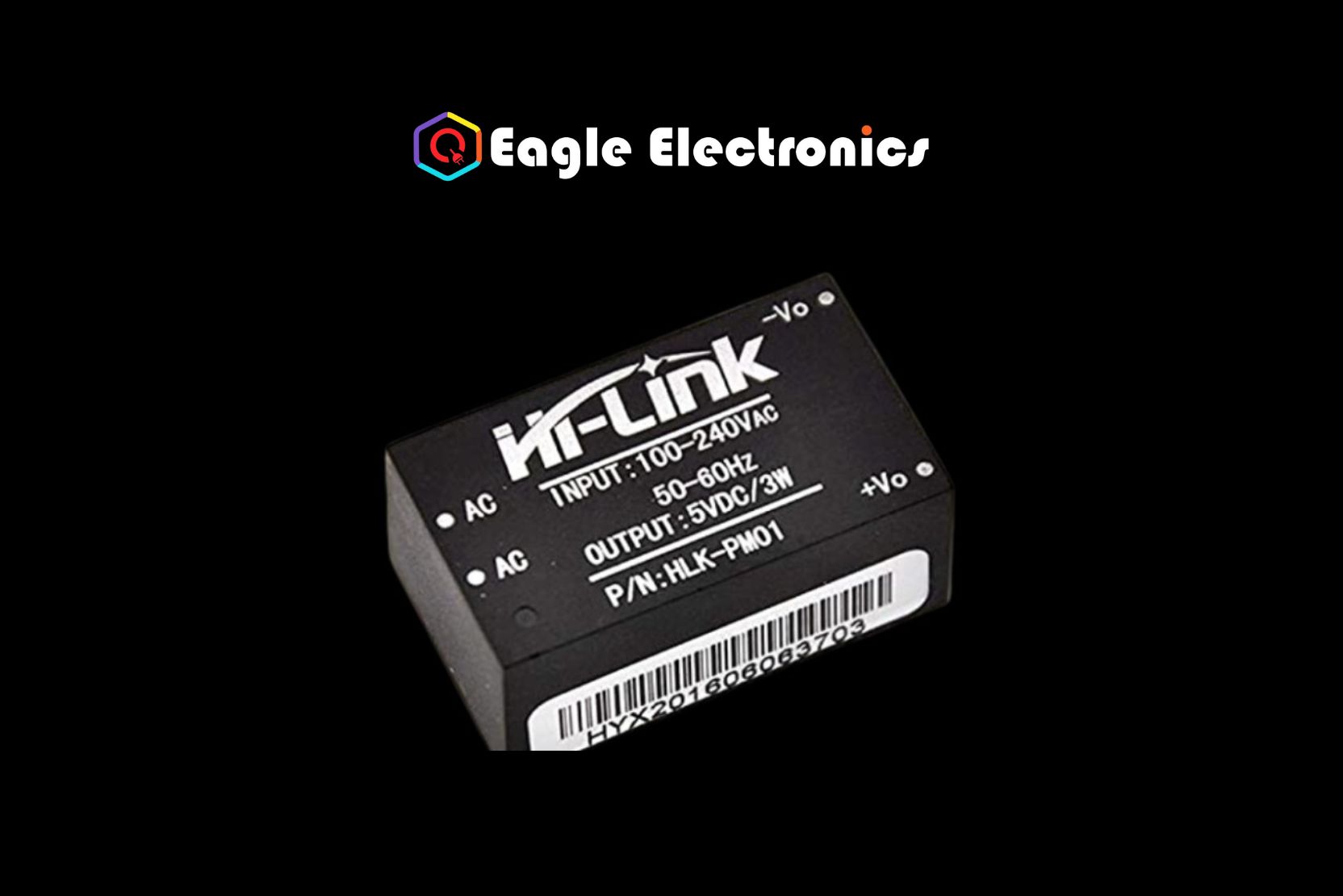

HLK-PM01, a Hi-Link AC-DC Power Module The 230V to 5V/3W SMPS Module (Hi-Link) is an isolated switching step-down power supply module that is PCB-mounted in plastic. It has a 3-watt power rating and can deliver 5-volt DC from 120-volt AC to 230-volt AC. This makes it ideal for small applications that require a 5V mains supply.

Specifications

·       All voltage input (AC: 90 ~ 264V)

·       Output DC Voltage: 5V

·       Meet UL, CE requirements,

·       Ultra-thin, ultra-small

·       Low ripple and low noise

·       Output overload and short circuit protection

·       High efficiency, high power density

·       The product is designed to meet the requirements of EMC and Safety Test

·       Low power consumption, environmental protection, no-load loss <0.1W

·       Technical indicators: Single-bit

·       Working temperature:  20-60 +degree

·       Storage temperature: + 80-40 -degree

·       Relative humidity: 5-95%

·       The cooling way: Natural cooling

·       The atmospheric pressure: 80-106Kpa

·       The altitude: 2000 m or less.

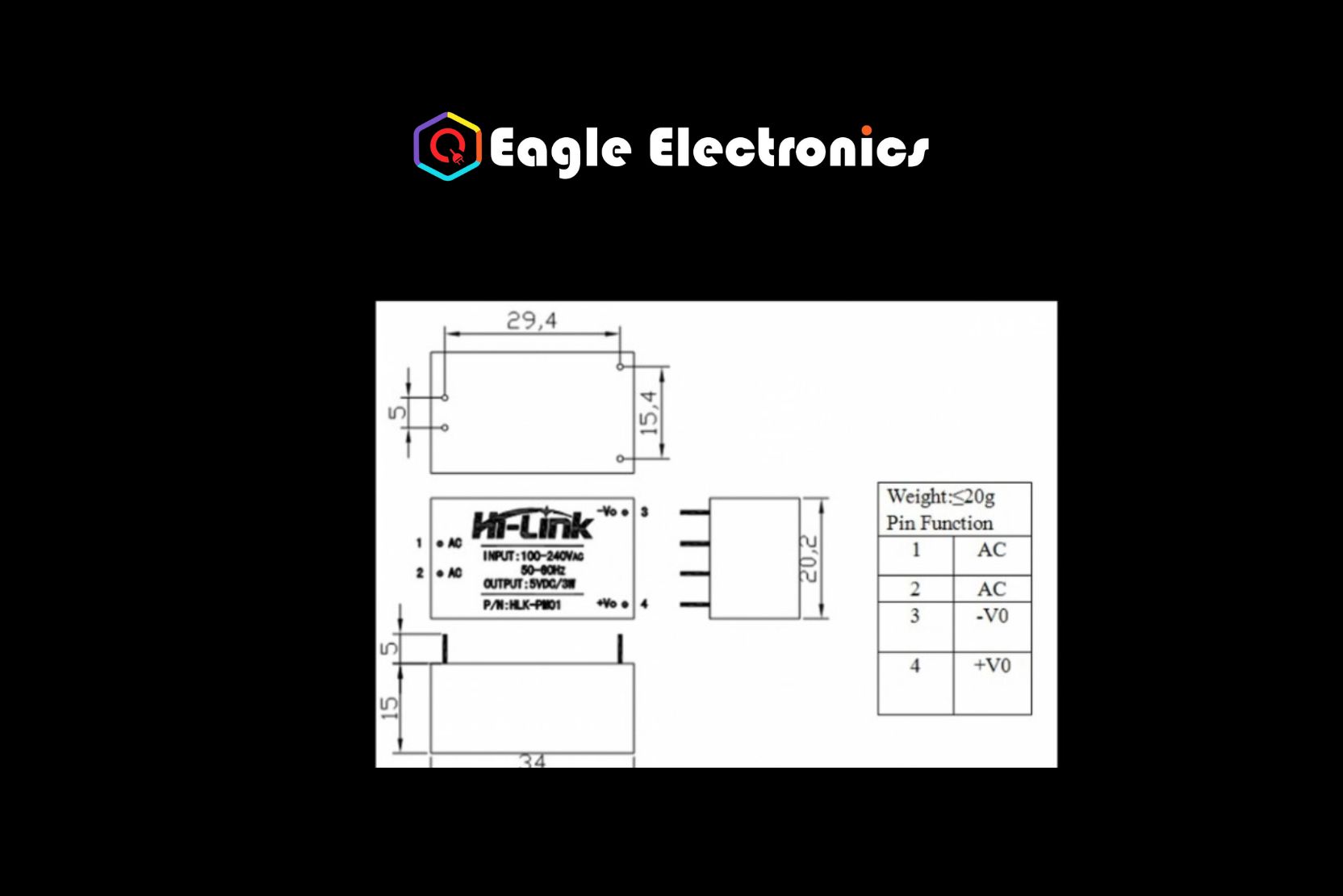

·       Dimensions in mm (LxWxH): 33 x 19 x 15mm

·       Weight: 22g.
