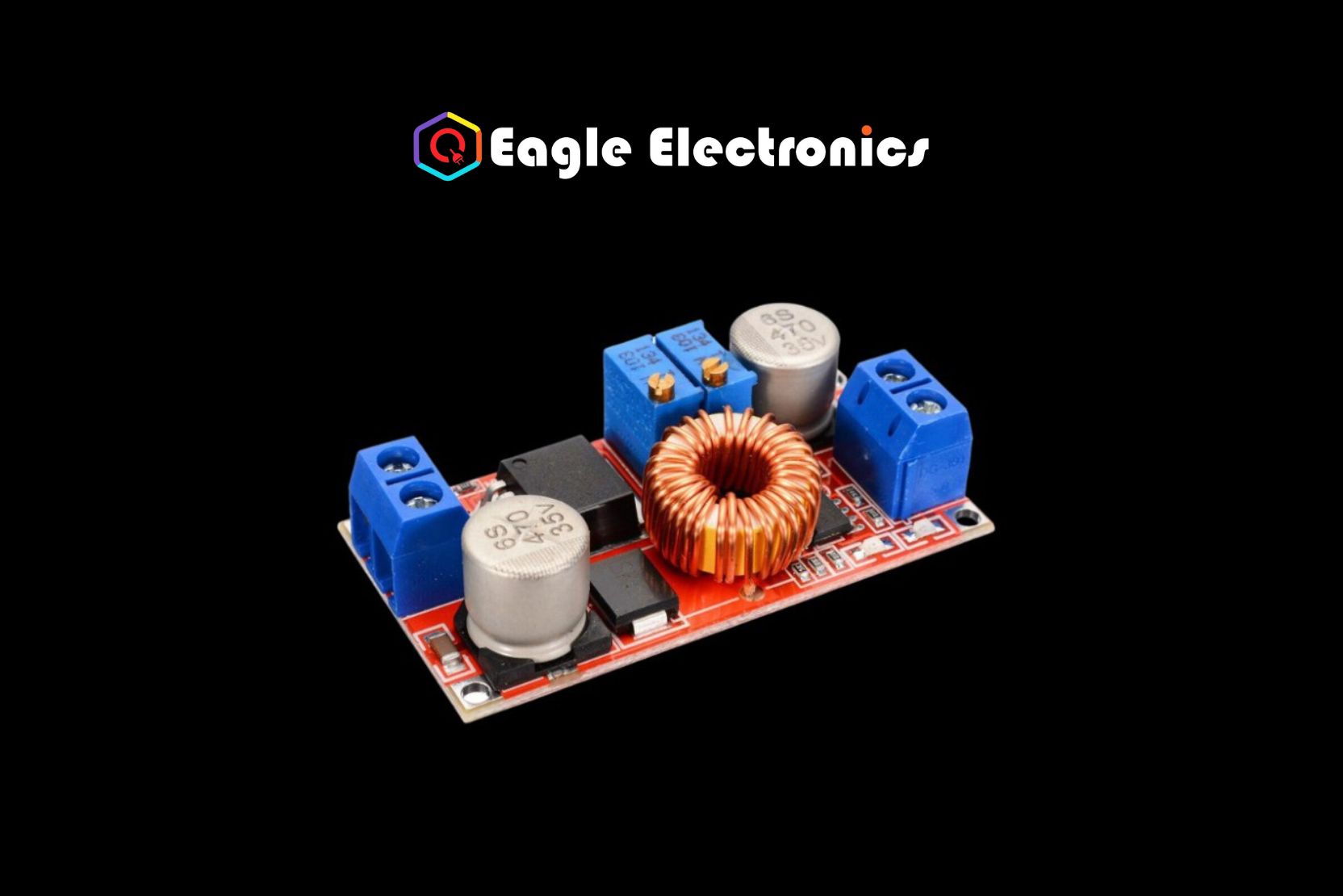

Xl4015-5A Constant Current / Voltage LED Drives Lithium Battery Charging Module

For a variety of applications, this Buck converter can be used as a standard step-down module with overcurrent protection. It serves as a charger for batteries of different voltages, including lithium and nickel-cadmium nickel-hydrogen battery packs used in solar panels, wind turbines, and other devices. Another application for this buck converter is as a high-power LED driver module.

There are indications to show which of the module’s two constant voltage and constant current modes it is currently operating in. You can adjust the float voltage and charge current when using a lithium battery charger to indicate whether the battery is charging or is full. Even if the output is short-circuited, the module won’t burn out thanks to current-limiting protection.

Specifications

•       Input Voltage Range: 4-38V
•       Output Voltage Range: 25-36V continuously adjustable
•       Output current: adjustable, up to 5A
•       Output power: up to 75W
•       Working temperature :-40 ~ + 85 degrees
•       Working frequency: 180KHz
•       Short circuit protection: Yes(limited current 8A)
•       Over-temperature protection: Yes (automatically turn off the output after over-temperature)
•       Module Dimensions(LxWxH in mm): 50x26x12mm
•       Weight: 17g.
