Water Flow Sensor

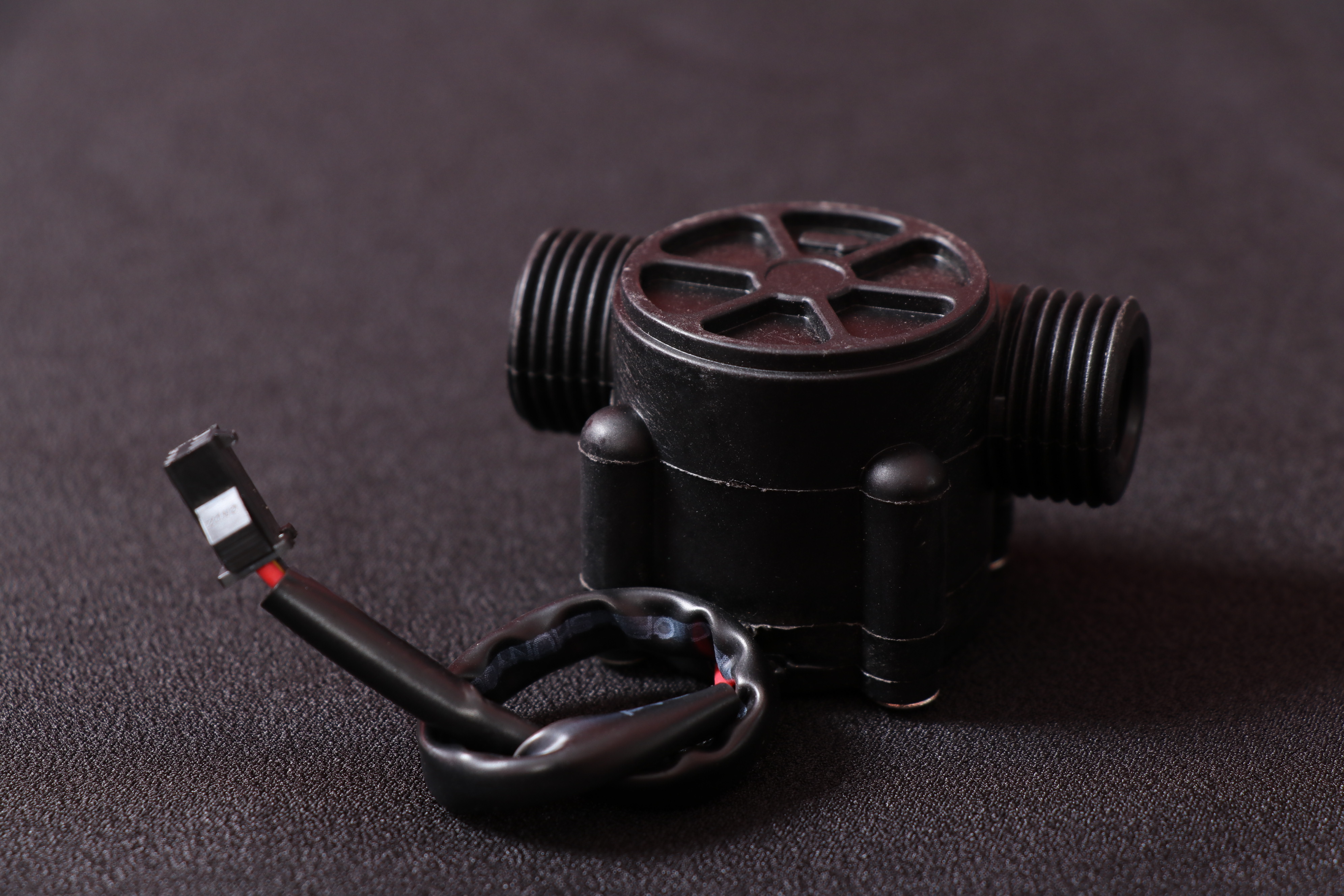

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

Specification

• Measurable Flow Rate: 0.3 to 6 Liters / minute
• Measurable Pressure: 0.8 mPa
• Input and output nozzle diameter: 1/4″
• Temperature: -25~+80 centigrade
• Max pressure allowable: 1.75 mPa
• Operating humidity range: 35%~90%RH (no frost)
• Operating temperature: ≤80 centigrade
• Load capacity:  ≤ 10 mA (5 VDC)
• Working voltage range: 5~18 VDC
• Maximum operating current: 15 mA (5 VDC)
• Size approximate (LxWxH): 26.4×34.2x58mm
• Weight: 30g.

Wire connections

• Red: Power Input Vcc
• Yellow: Signal output line
• Black: Ground.
