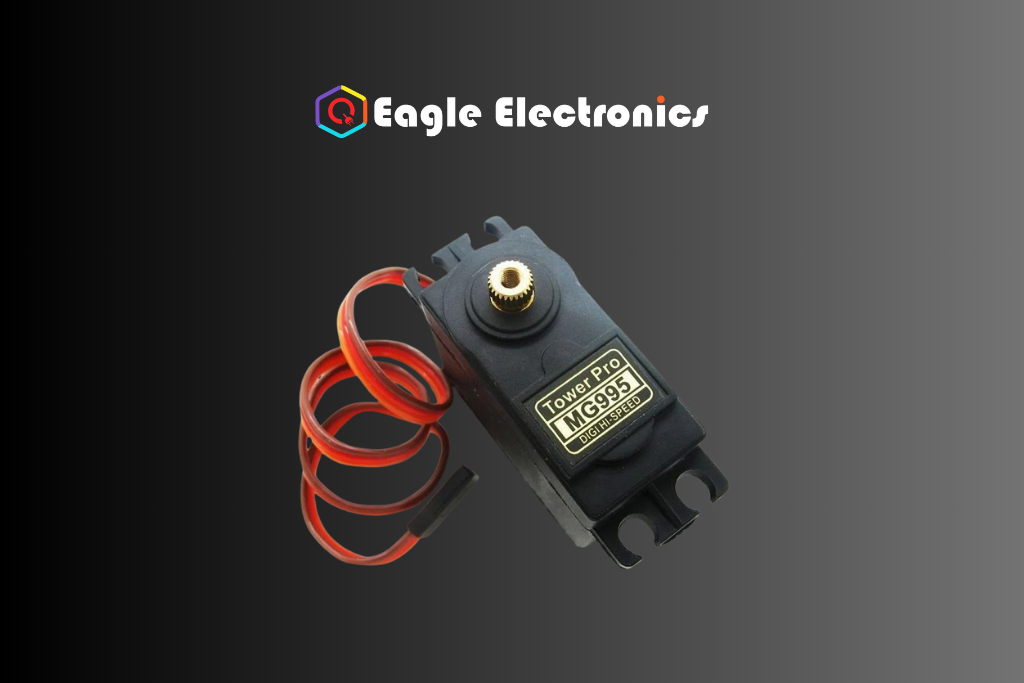

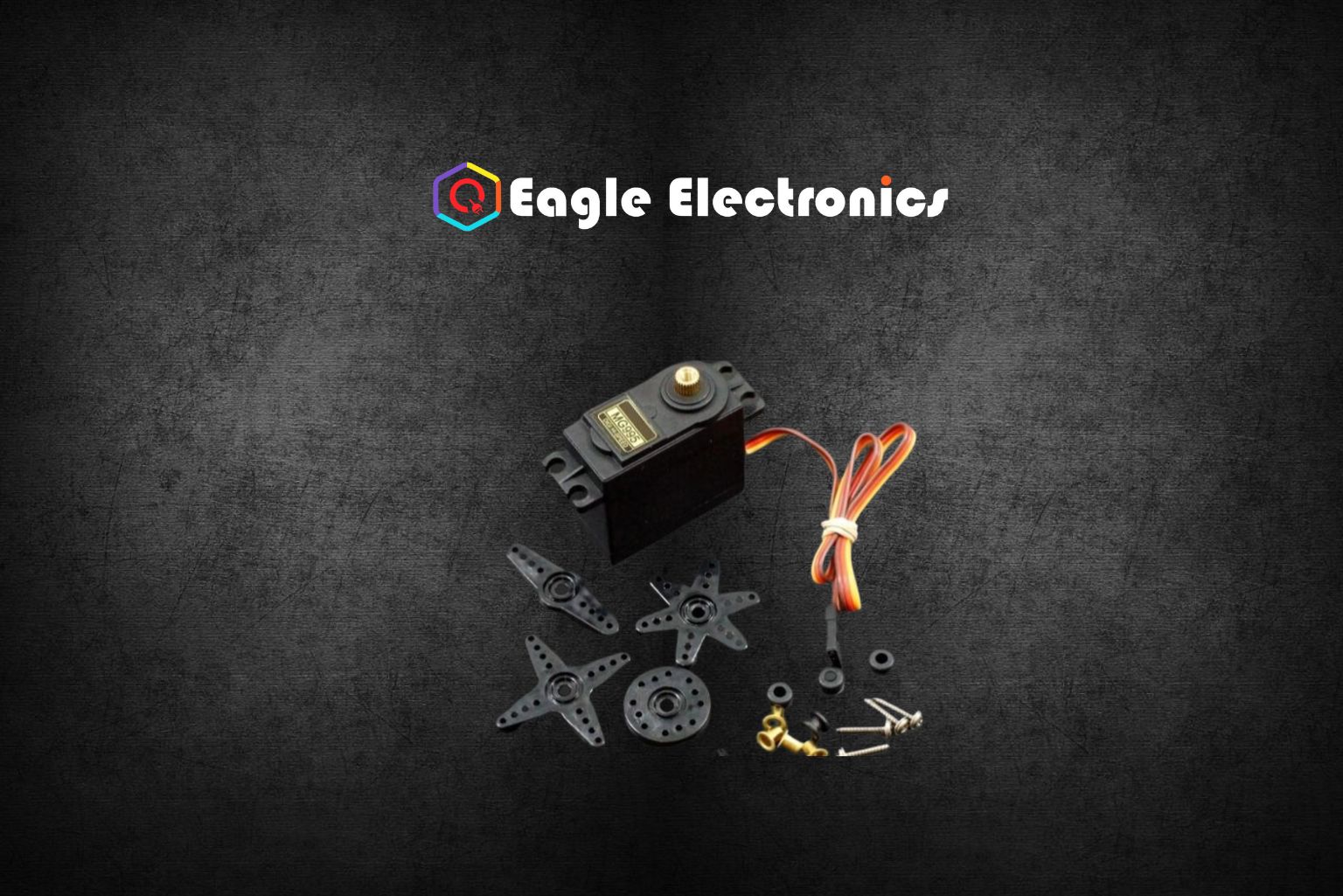

Tower Pro MG995 Digital Metal Gear High Torque Servo Motor (180 Degree Rotation)

A metal gearing design gives the Tower Pro MG995 Digital Metal Gear High Torque Servo Motor (180 Degree Rotation) an extra-high 10kg stalling torque in a small package. The MG995 is essentially an improved version of the well-known MG995 servo. It has improved shock-roofing, a new PCB and IC control system, and other improvements that make it significantly more precise than its forerunner. To enhance centering and deadband, the gearing and motor have also been updated. The unit includes a 30 cm long cable and a 3-pin “S” type female header connector that is compatible with the majority of receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum, and Hitec.

Specifications

• Model: MG995
• Operating voltage: 4.8V~ 7.2V
• Operating Speed 4.8V: 20sec/60°
• Operating Speed 6.6V: 16sec/60°
• Servo Plug: JR
• Stall Torque 4.8V (Kg-Cm): 10
• Stall Torque 6.6V (Kg-Cm): 12
• Operating Temperature (°C): -30 to 60
• Gear Type: Metal
• Rotational Degree: 180º
• Servo Plug: JR
• Cable Length (cm):30
• Dimensions: 40.5mm X 20mm X 44mm
• Weight: 55g
