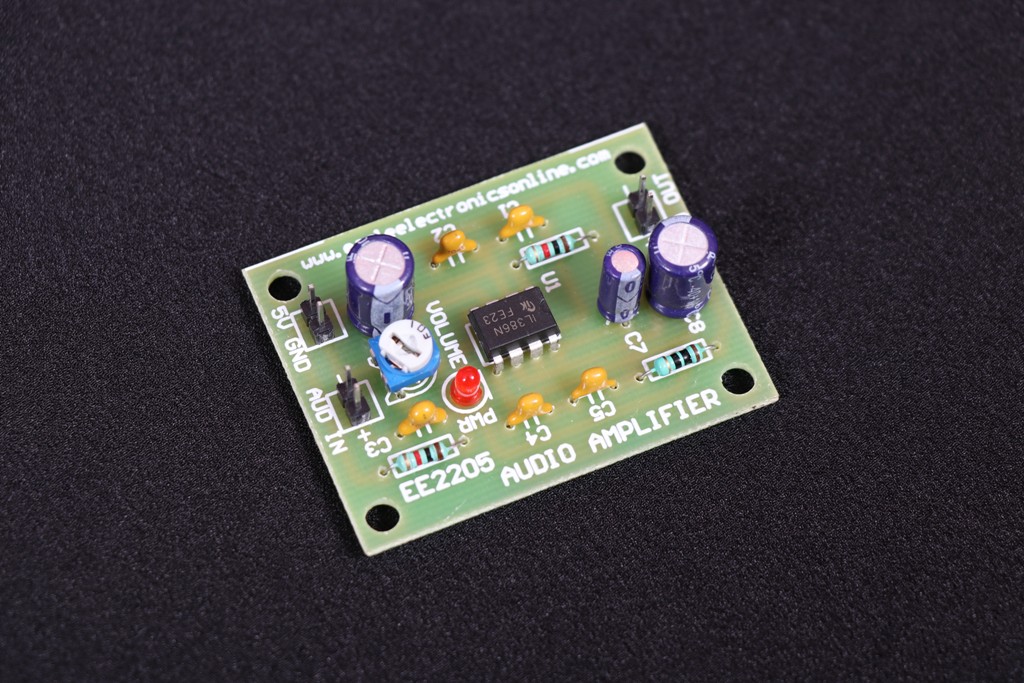

LM386 Audio Amplifier Module

This LM386 module is a low-cost audio amplifier module with the famous LM386 amplifier IC on it. The gain of the circuit is about 200 that means the output can be amplified 200 times. The operating voltage of the module is from 5V to12V. It also has an on-board power indicator LED and a 10k potentiometer which can be used to adjust the volume (gain) of the output audio signal.

Specifications

• Operating Voltage: Usually 4V to 12V DC
• Default Signal Gain: Configured for a high 200x multiplier gain.
• Output Power: Roughly 325mW to 700mW depending on supply voltage and speaker load.
• Quiescent Power Drain: Low static current of 2mA to 4mA, ideal for 9V battery operation.
• Speaker Compatibility: Successfully drives 4-ohm to 32-ohm speakers (typically recommended with an 8-ohm 0.5W–10W speaker).
• PCB Dimensions(LxH in mm): 41x13mm
• Weight: 5g.
