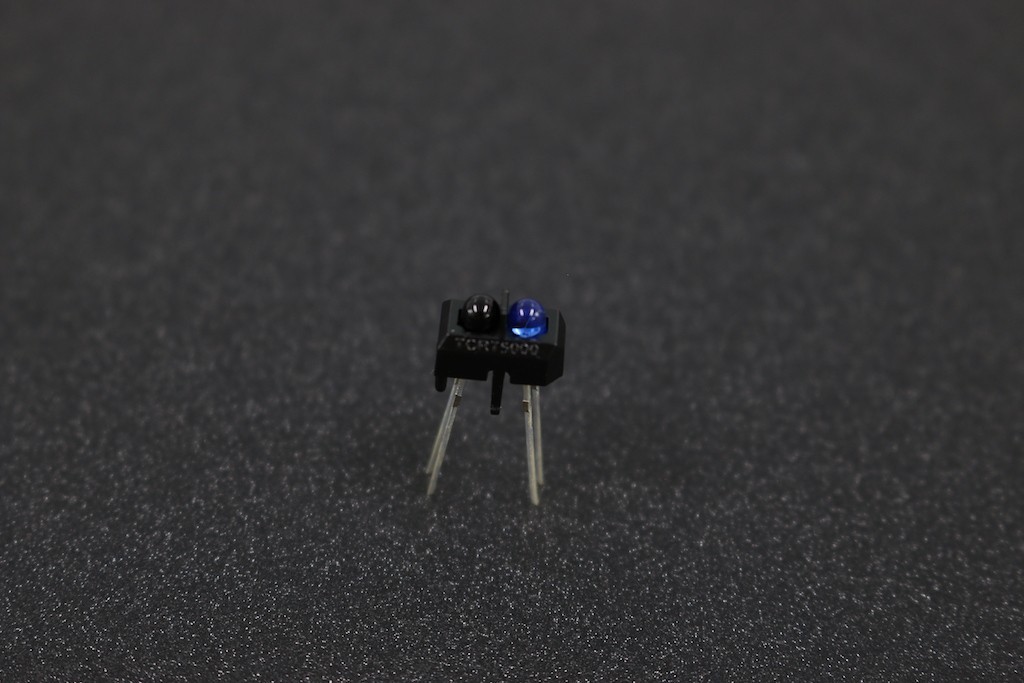

TCRT5000 – Reflective Optical Sensor-EE536-Q6

The TCRT5000 is a combination of an IR Emitter and an IR Detector mounted in an arrangement to allow detecting of reflective materials. Its sensing range is from 0.2mm to 12 mm.

Specifications

• Sensing Distance: 12mm
• Operating Wavelength: 950 mm
• Package Height: 7 mm
• Sensing Method: Reflective
• Reverse Voltage: 5V
• Forward Current: 60mA
• Forward Surge Current: 3A
• Emitter Power Dissipation: 100mW
• Collector Emitter Voltage: 70V
• Emitter Collector Voltage: 5V
• Collector Current: 100mA
• Detector Power Dissipation: 100mW Sensor Total Power
• Dissipation: 200mW
• Operating Temperature: -25°C ~ +85°C .
