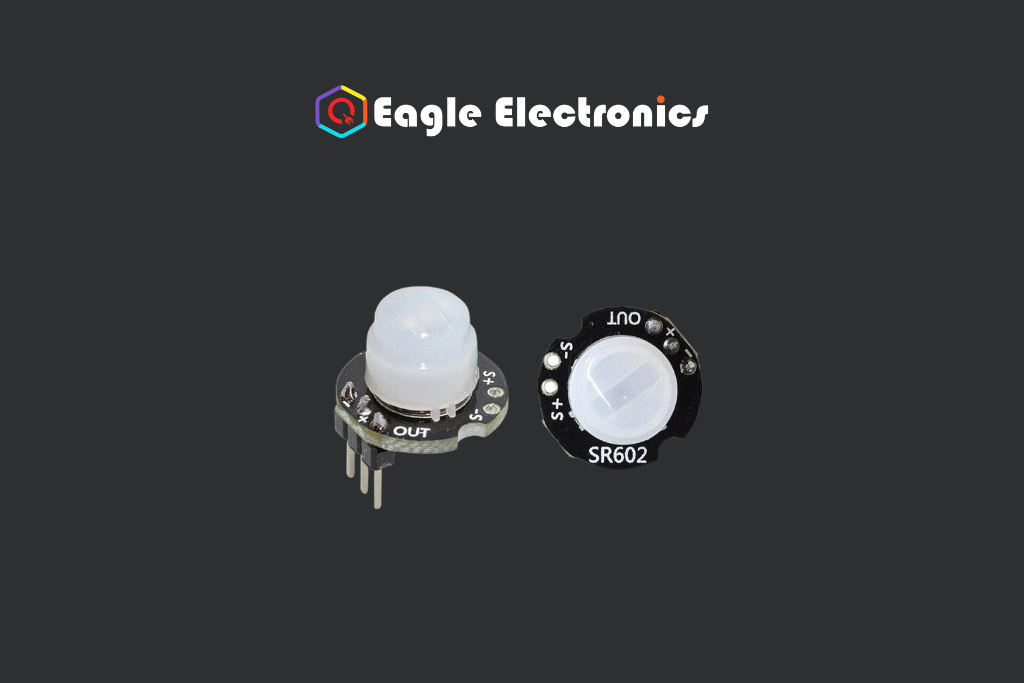

SR602 MINI Motion Sensor Detector Module

As a pyroelectric human body infrared sensor module, the SR602 MINI Motion Sensor Detector Module is employed. The sensing range of this module is up to 5 metres. It can be used for security, alarms, and body sensor lighting.

Specifications

• Operating Voltage: 3.3V-5 V
• Sensing Distance: 3 -5 Meter
• Output: high level, H=3.3V, L=0V
• Quiescent current: 20uA
• Model: SR602
• Type: Magnetic Sensor Module
• Mainly Compatible with: Ardunio
• Dimension(mm): 15 x 15 x 20mm
• Weight:2g
