Product details

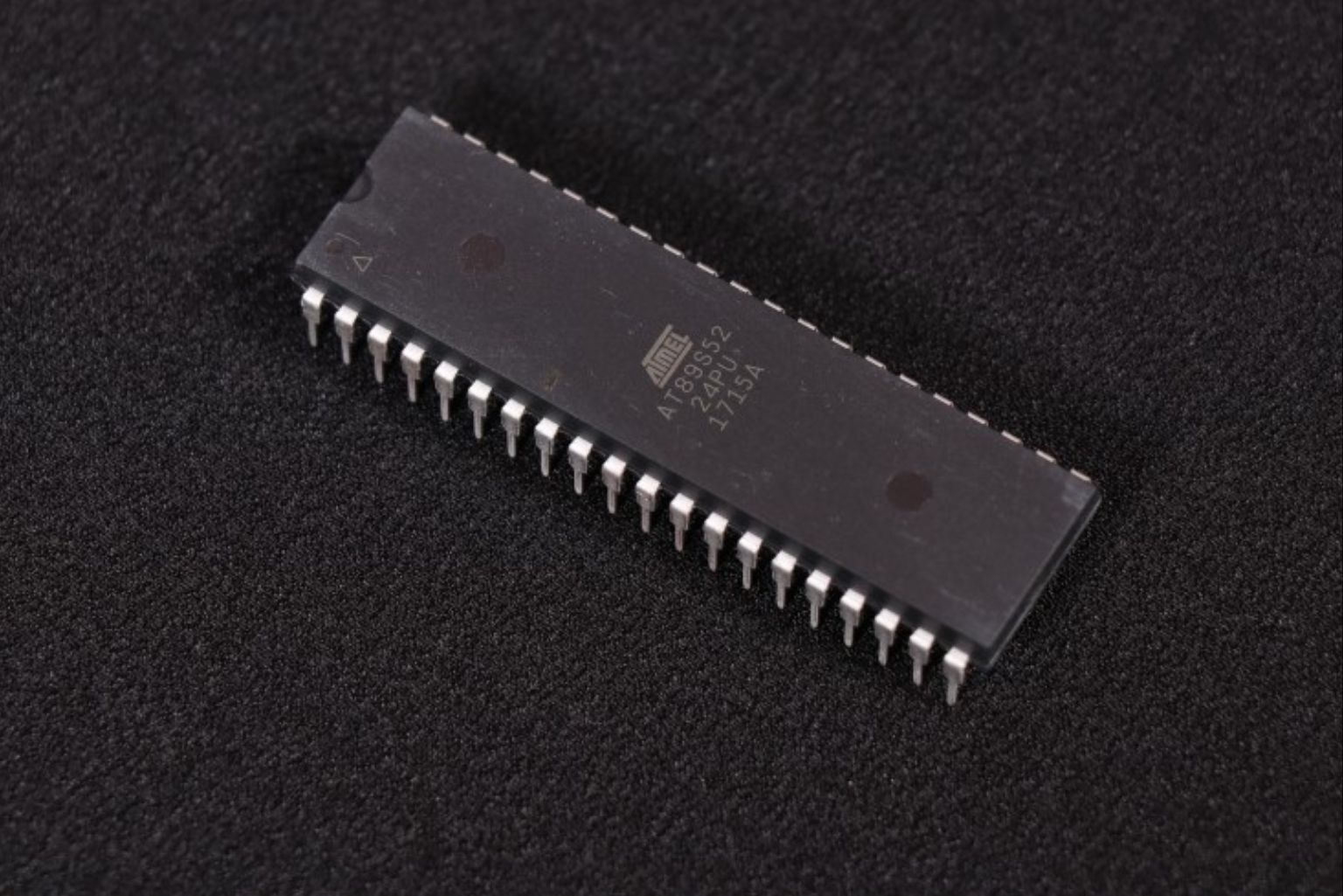

The AT89S52 is a Low-power, high-performance CMOS 8-bit microcontroller with 8KB of ISP flash memory. The device uses Atmel high-density, non-volatile memory technology and is compatible with the industry-standard 80C51 instruction set and pin out. On-chip flash allows the program memory to be reprogrammed in-system or by a conventional non-volatile memory programmer. This powerful microcontroller is suitable for many embedded control applications.
Specifications
- Compatible with MCS® -51Products
- 8K Bytes of In-System Programmable (ISP) Flash Memory – Endurance: 10,000 Write/Erase Cycles
- 4.0V to 5.5V Operating Range
- Fully Static Operation: 0 Hz to 33 MHz
- Three-level Program Memory Lock
- 256 x 8-bit Internal RAM
- 32 Programmable I/O Lines
- Three 16-bit Timer/Counters
- Eight Interrupt Sources
- Full Duplex UART Serial Channel
- Low-power Idle and Power-down Modes
- Interrupt Recovery from Power-down Mode
- Watchdog Timer
- Dual Data Pointer
- Power-off Flag
- Fast Programming Time
- Flexible ISP Programming (Byte and Page Mode)
- Green (Pb/Halide-free) Packaging Option
