Product details

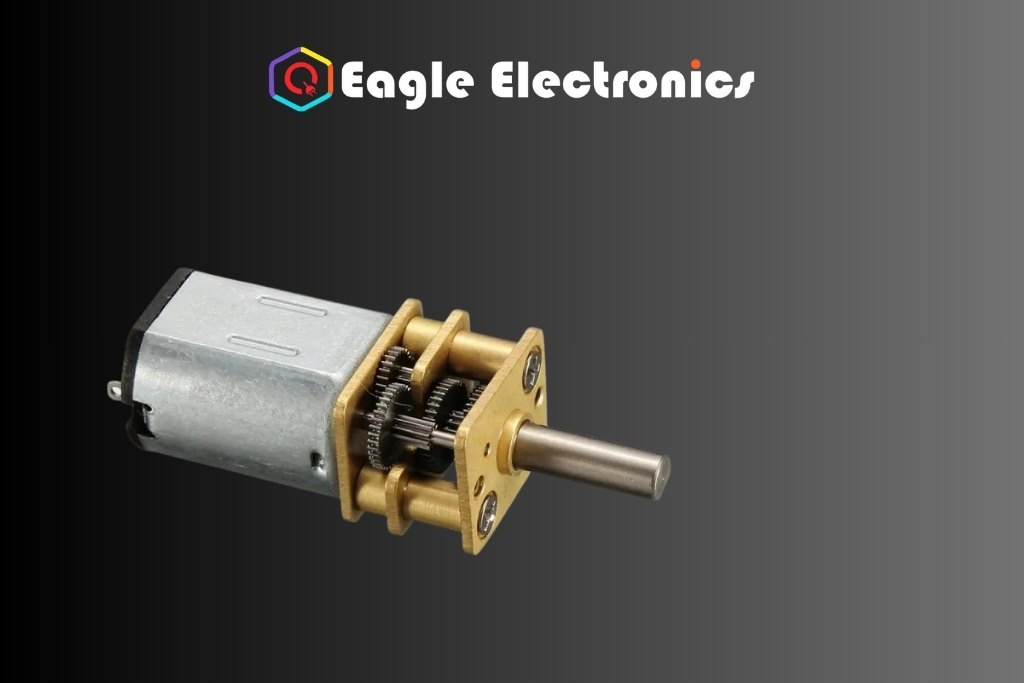

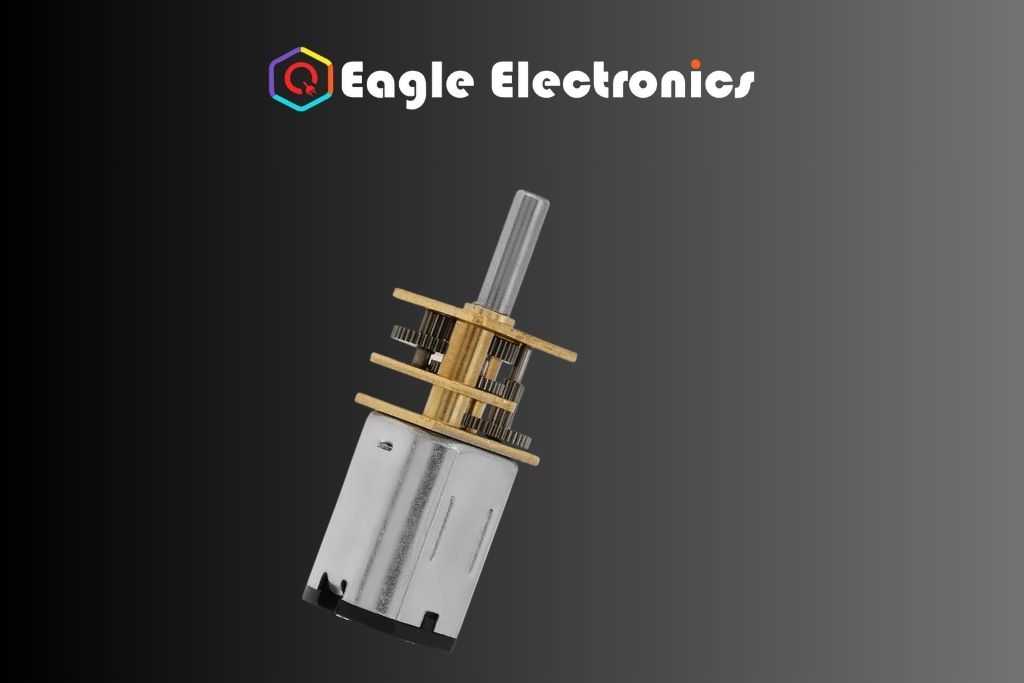

This N20-6V-100 Rpm Micro Metal Gear Motor is small in volume, has a large torque, is made entirely of metal gears, is long-lasting, and difficult to wear. Excellent substitute for the machine’s corroded or broken DC geared speed reducer motor. extensively utilized on electric bicycles, boats, cars, fans, and household appliances.
Lightweight, low RPM, and high torque are characteristics of the N20 Micro Gear 6V 100 RPM DC Motor (High Torque). It has a gearbox assembly installed in order to boost the motor’s torque. The D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter, with a cross-section of 10 × 12 mm. Because of its small size, it can be used in intricate spaces on a small scale. Wheels can be driven from one location to another while carrying heavy loads by connecting this micro gear motor to them.
With its small volume and large torque, this N20 Micro Gear 100RPM 6V DC Motor (High Torque) is made of all metal gears, is long-lasting, and is difficult to wear. Excellent substitute for the machine’s corroded or broken DC geared speed reducer motor. extensively utilized on electric bicycles, boats, cars, fans, and household appliances.
Specifications
• Rated Speed (RPM): 100
• Rated Voltage (V): 3-6
• Rated Torque (kg-cm): 0.7
• Stall Torque (kg-cm): 2.2
• No Load Current (mA) 0.04 A
• Stall current (A): 0.67
• Shaft Type: D Type, Single Side
• Motor Body Diameter (mm): 12
• Output Axial Length (mm): 10
• Fuselage w/o Shaft Length: 26
• Screw Size: M3
• Shaft Diameter (mm):3
• Weight (g):12
