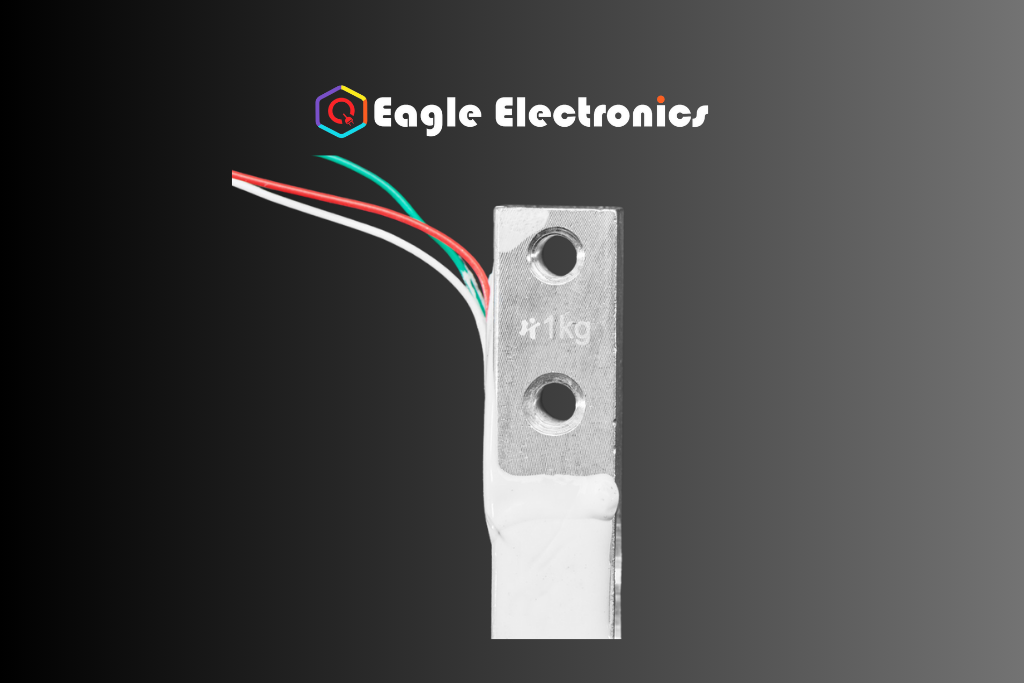

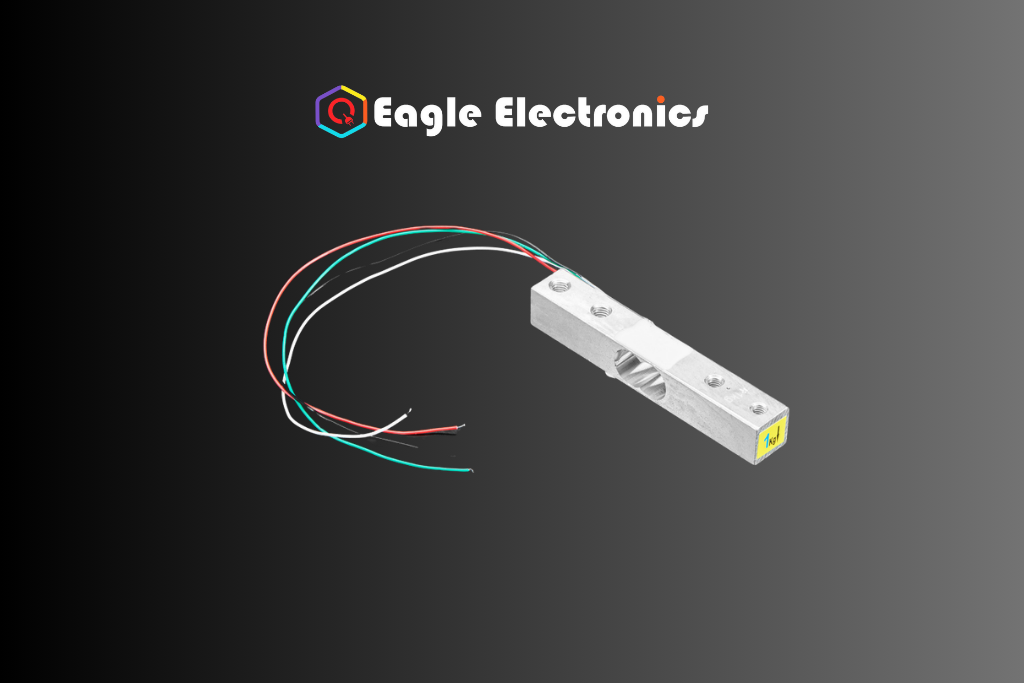

Load cell 1Kg – Electronic Weighing Scale Sensor

This load cell sensor (also known as a strain gauge) is capable of converting a maximum of 1 kg of pressure (force) into an electrical signal. Every load cell can measure the electrical resistance that varies in accordance with and in proportion to the strain (such as pressure or force) exerted on the bar.

Using this gauge, you may determine the weight of an object, monitor variations in weight over time, or detect the presence of an object by measuring strain or load on a surface. This linear load cell is constructed from an aluminum alloy and has the ability to measure a weight capacity of 1 kg.

Specifications

• Weighing Range: 0 ~ 1 kg.
• Rated Output: 1.0 ± 0.1mV / V.
• Non-Linear Output: ± 0.03% F.S.
• Input Impedance: 1066 ± 10% Ω.
• Output Impedance: 1000 ± 10% Ω.
• Insulation Resistance: 2000 MΩ.
• Size: 75 x 12.6 x 12.6mm
• Weight: 27g.
