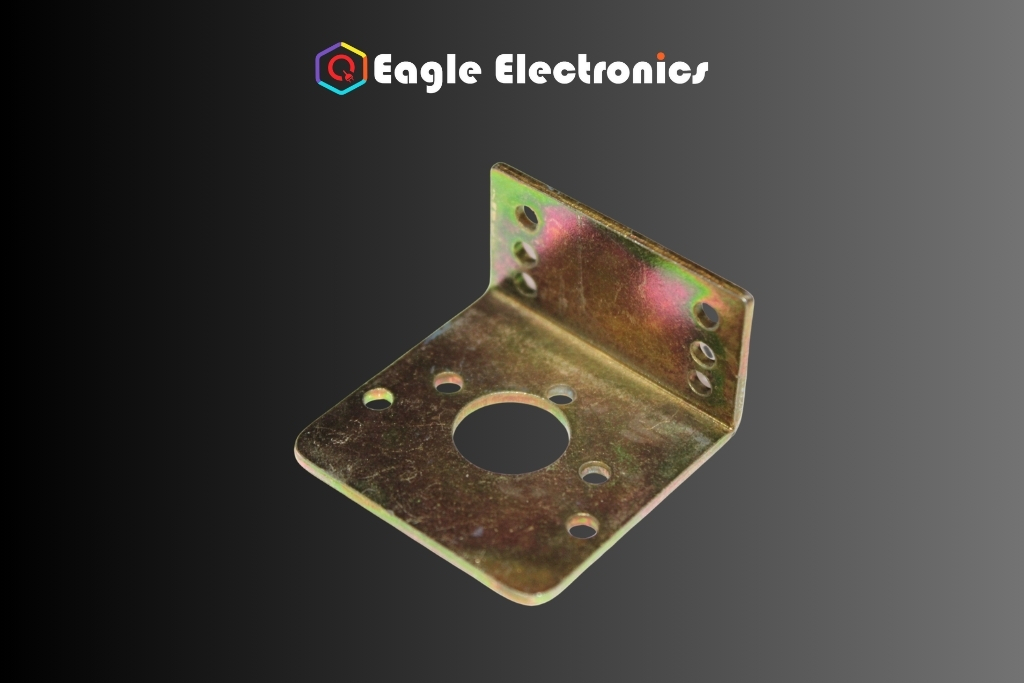

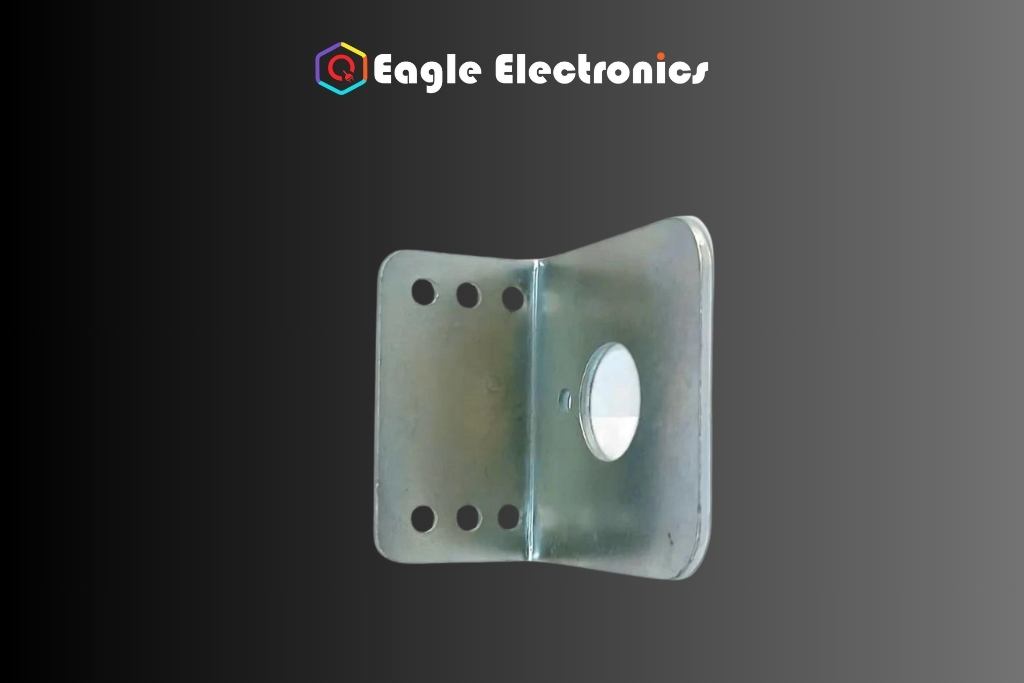

L CLAMP FOR DC GEAR MOTORS – Metal

This motor mount bracket is designed for Side Shaft and Center Shaft, BO Gear Series motor, making motor mounting convenient. Brackets consist of 4mm thick metal.

Specifications

• Material: Metal
• Support for Center Shaft DC Gear Motors
• Support for Castor 13mm Wheels
• Motor mounting side: Height 38.7mm, Width 39.2mm;
• Bracket mounting side: Height 22mm, Width 39mm
• Hole for Motor mounting: 13.4mm diameter
• Thickness:4mm
• Holes for chassis mounting: Six holes of 3mm.
• Weight:26g
• Size(LXWXH):39.1X3.8X38.9mm
