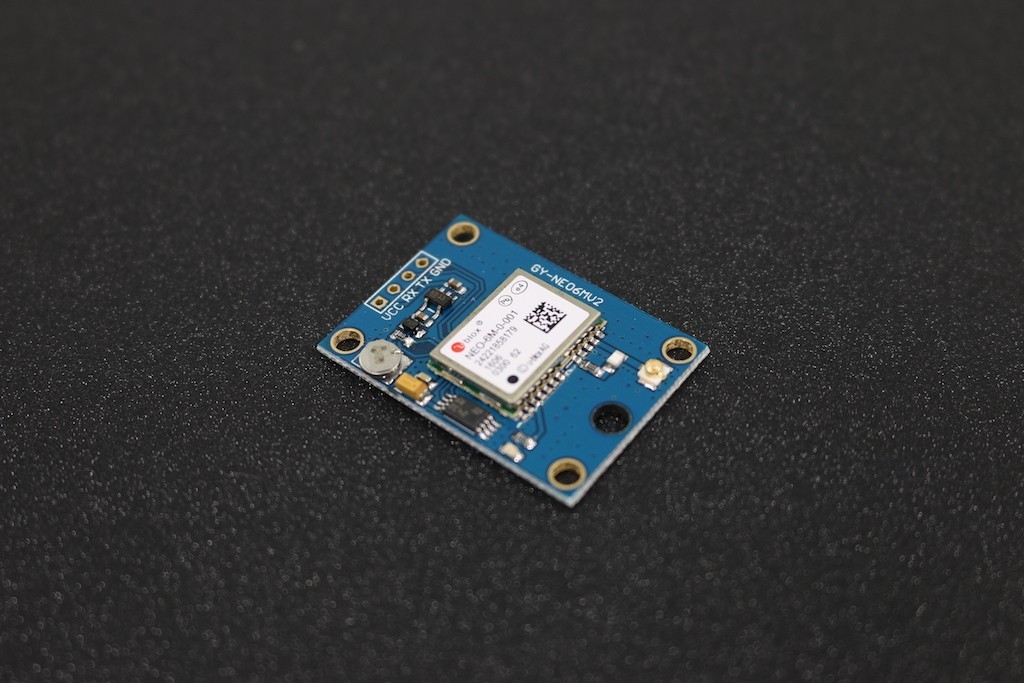

GPS Module-U-blox NEO-6M

The NEO-6 module series is a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature 16 x 12.2 x 2.4 mm package. Their compact architecture and power and memory options make NEO-6 modules ideal for battery operated mobile devices with very strict cost and space constraints.

The 50-channel u-blox 6 positioning engine boasts a Time-To-First- Fix (TTFF) of under 1 second. The dedicated acquisition engine, with 2 million correlators, is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving NEO-6 GPS receivers excellent navigation performance even in the most challenging environments.

Specifications

• Model: Ublox NEO-6M
• Supply voltage: 2.7V To 6V
• The default baud rate: 9600
• Receiver Type: 50 ChannelsGPS L1 frequency, C/A CodeSBAS: WAAS, EGNOS,MSAS
• Sensitivity: Cold Start (without aiding): -147 dBm
  Hot Start: -156 dBm
  Reacquisition: -160 dBm
  Tracking & Navigation: -161 dBm
• Navigation Update Rate: 5Hz
• Position Accuracy: 2 M and better with multiple good satellite signals
• Operating Temperature Range: -24ºC ~ 84°C
• Cold Start Time: 27s
• Warm Start Time: 27s
• Maximum Speed: 500 M/s
• LED signal indicator
• With data backup battery

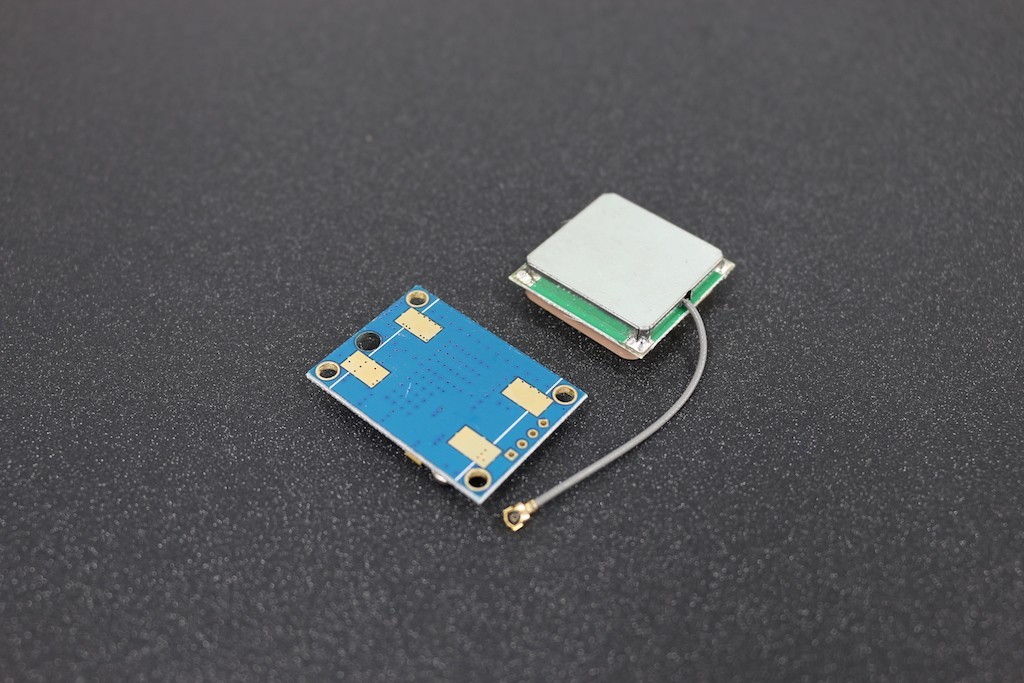

• Module Size: 26mm * 35mm • Antenna Size: 25 * 25mm
• Module Weight:17g.
