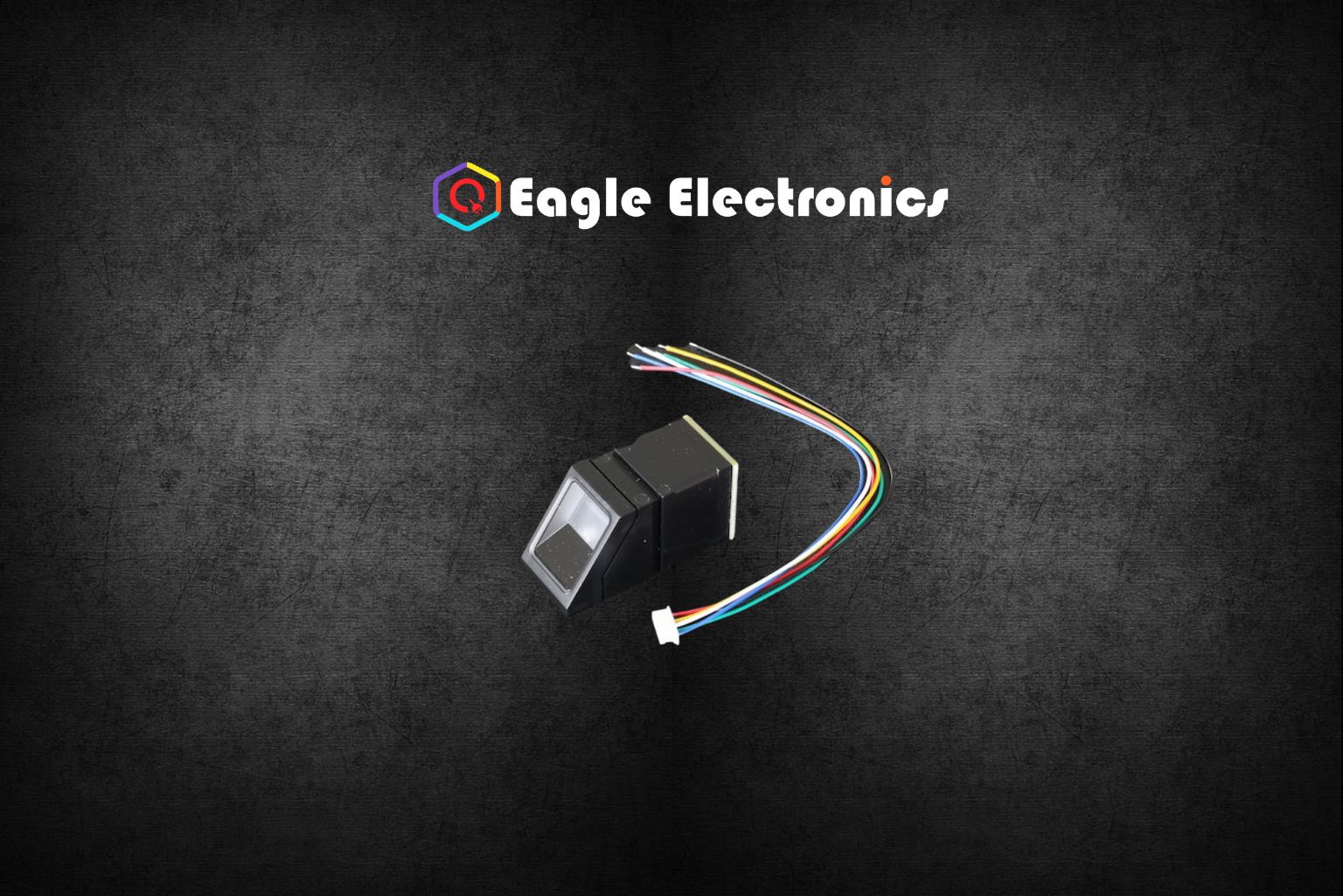

R307 Fingerprint Module consists of an optical fingerprint sensor, high-speed DSP processor, high-performance fingerprint alignment algorithm, high-capacity FLASH chips and other hardware and software composition, stable performance, simple structure, with fingerprint entry, image processing, fingerprint matching, search and template storage and other functions.
The R307 fingerprint module has two interface TTL UART and USB2.0, USB2.0 interface can be connected to the computer; RS232 interface is a TTL level, the default baud rate is 57600, can be changed, refer to a communication protocol; can And microcontrollers, such as ARM, DSP and other serial devices with a connection, 3.3V 5V microcontroller can be connected directly. Needs to connect the computer level conversion, level conversion note, embodiments such as a MAX232 circuit.
Specifications
- Supply voltage: DC 4.2 ~ 6.0V
- Working current: 50mA (typical)
- Peak current: 80mA
- Fingerprint image input time: <0.3 seconds
- Window area: 14×18 mm
- Matching mode:1: 1 and 1:N
- Characteristic file size: 256 bytes
- Template size: 512 bytes
- Storage capacity: 1000 pieces
- Security Level: 5 (from low to high: 1,2,3,4,5)
- Fake rate (FAR): <0.001%
- Refusal rate (FRR): <1.0%
- Search time: <1.0 seconds (1: 1000 hours, mean value)
- Host interface: UART USB1.1
- Baud rate (UART): (9600xN) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps)
- Working environment Temperature: -20 ℃ – +40 ℃
- Relative humidity: 40% RH-85% RH (no condensation)
- Storage environment Temperature: -40 ℃ – +85 ℃
- Relative humidity: <85% H (no condensation
- Module Dimension: 20mmx23.6×44.4mm
- Module Weight: 20g.
