Product details

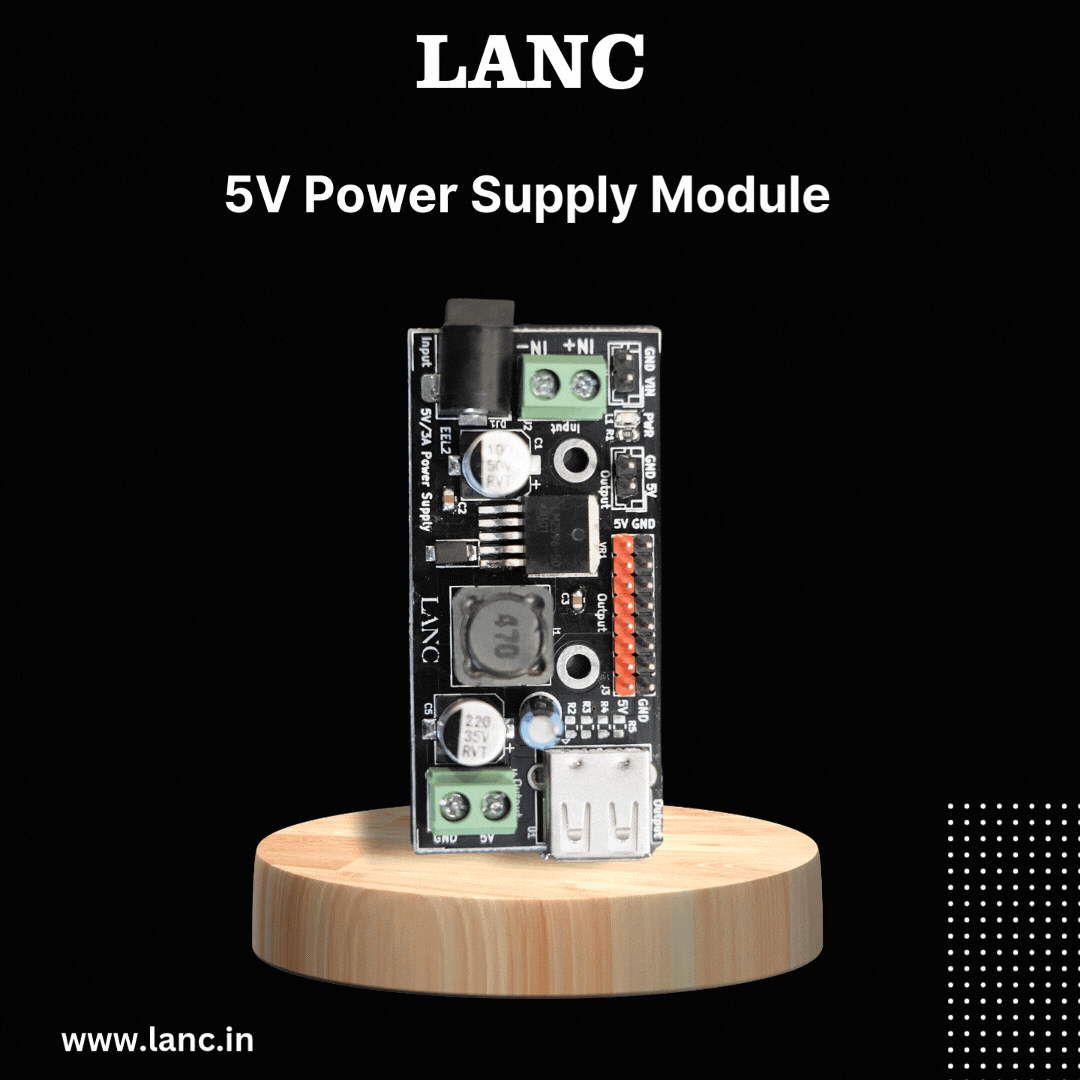

The LM2596 is a popular voltage regulator that provides a fixed output voltage of 5V with a maximum output current of 3A. It’s a buck (step-down) converter, meaning it converts a higher input voltage to a lower output voltage efficiently.
Specifications
- Input voltage: 5.2-40V
- Output Voltage: 5V (Fixed) ,input must least high 5.2V than output
- Output current: rated current 2A, maximum 3A (need to add heat sink), if the output power greater than 15W, combined heat sink is proposed.
- Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency) is a high performance DC to DC step-down adjustable power supply module, switching regulator.
- Switching frequency : 150KHz
- Output Ripple: 30mV (max)
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Circuit protection: SS14
- Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
- Load regulation: ± 0.5%
- Onboard Input DC-005A Jack And 2 Pin Terminal Connector And 2 Pin RMC Connector
- Onboard Output Led Indicator
- Onboard Power Polarity Identification Header Pins
- Onboard USB Output
- Onboard 2 Pin RMC Connector Output Pin-1
- Module Size:32.2×12.5×68.5mm
- Weight: 22g.
