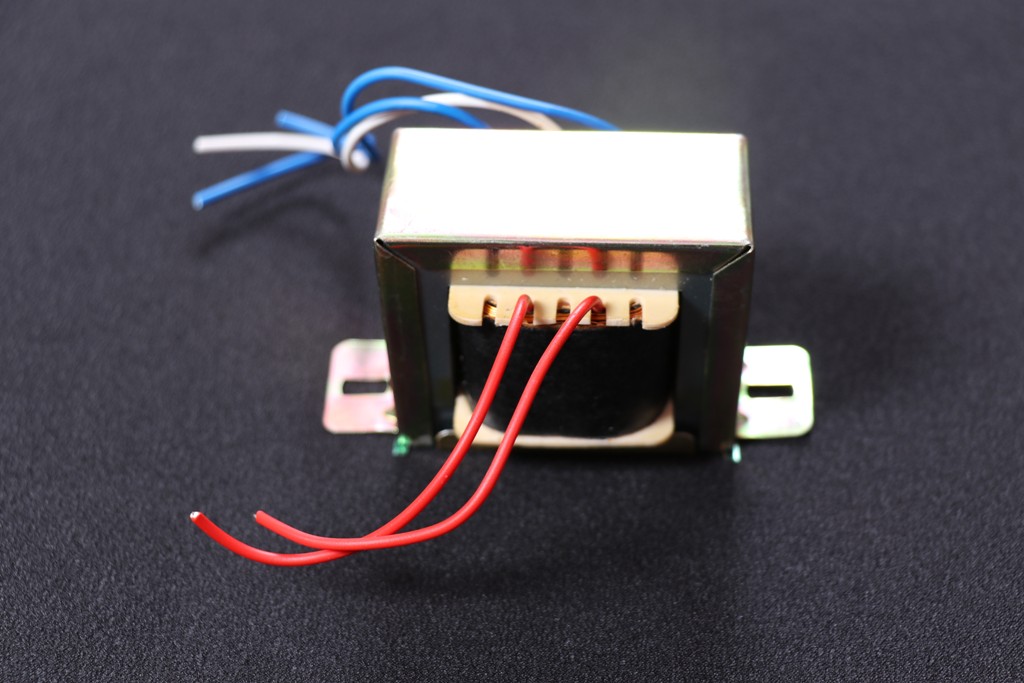

12V, 1 Amp Transformer

This is a general purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre tapped secondary winding. The transformer has flying colored insulated connecting leads (Approx 100 mm long). The Transformer act as step down transformer reducing AC – 240V to AC – 12V.

Specifications

• Input Voltage : 220V/AC
• Output Voltage : 12V/AC
• Output current : 1.5 A
• Power : 24 Watts
• Phase: Single Phase
• Frequency:50Hz
• Cooling Type: Dry Type/Air Cooled
• Material: CRGO core and Super enamelled copper wire
• Dimensions:85×42.6x50mm
• Weight: 483g
