Product details

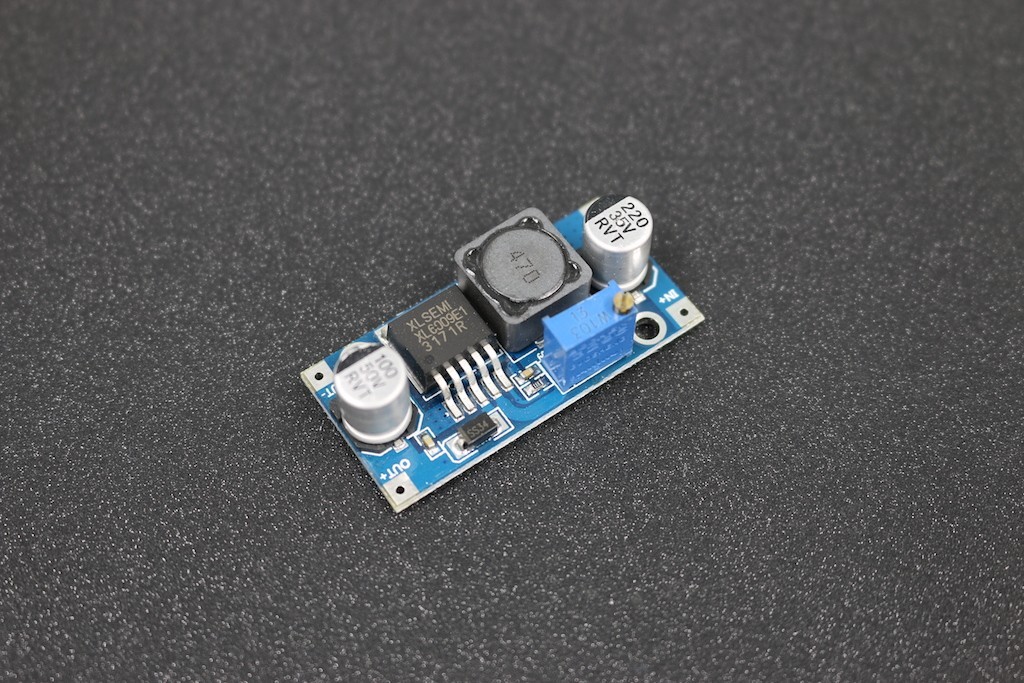

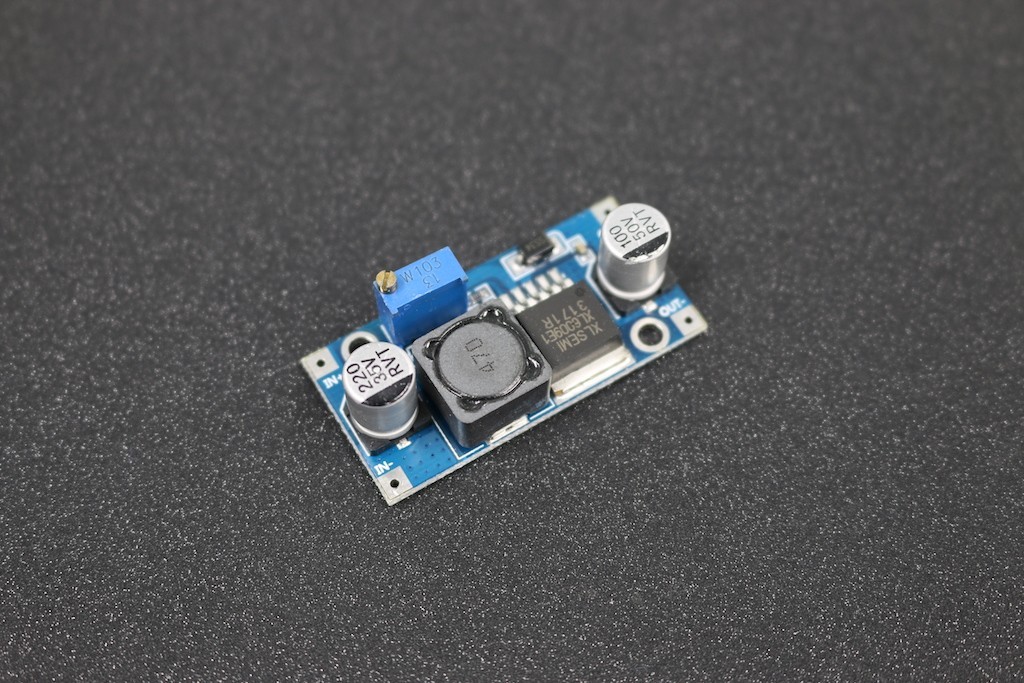

The XL6009 regulator is a current-mode DC/DC converter with a wide input range that can generate either positive or negative output voltages. It can be set up as a boost, flyback, SEPIC, or inverting converter, depending on your needs. The XL6009’s current-mode architecture, which includes an N-channel power MOSFET and a constant frequency oscillator, ensures reliable performance over a wide range of supply and output voltages. The XL6009 regulator is designed specifically for use in portable electronic equipment.
Specifications
- Wide 5V to 32V Input Voltage Range
- The input voltage: Minimum 5V to 3V ~ 35V
- The output voltage: 6V ~ 45V
- The output current: 4A (Max)
- The output ripple: <30 mV
- Switching frequency: 65 KHz
- Workingtemperature:-45’ ~ +85’
- Positive or Negative Output Voltage Programming with a Single Feedback Pin
- Current Mode Control Provides Excellent
- Transient Response
- 25V reference adjustable version
- Fixed 400KHz Switching Frequency
- Maximum 4A Switching Current
- SW PIN Built in Over Voltage Protection n Excellent line and load regulation
- EN PIN TTL shutdown capability
- Internal Optimize Power MOSFET
- High efficiency up to 94%
- Built in Frequency Compensation
- Built in Soft-Start Function
- Built in Thermal Shutdown Function
- Built in Current Limit Function
- Module Dimensions: 21x14x43 mm
- Module Weight: 12g.
Note:
Remember that the output current will be much lower than the input current (remember – W = VA) when utilising these modules. The input current will be roughly 3.6A if you have a 10V output at 1A from a 5V input. The greatest power you can pull out of these things in real life is roughly 10W.
