Voltage Regulator – 12V-EE1104-P1

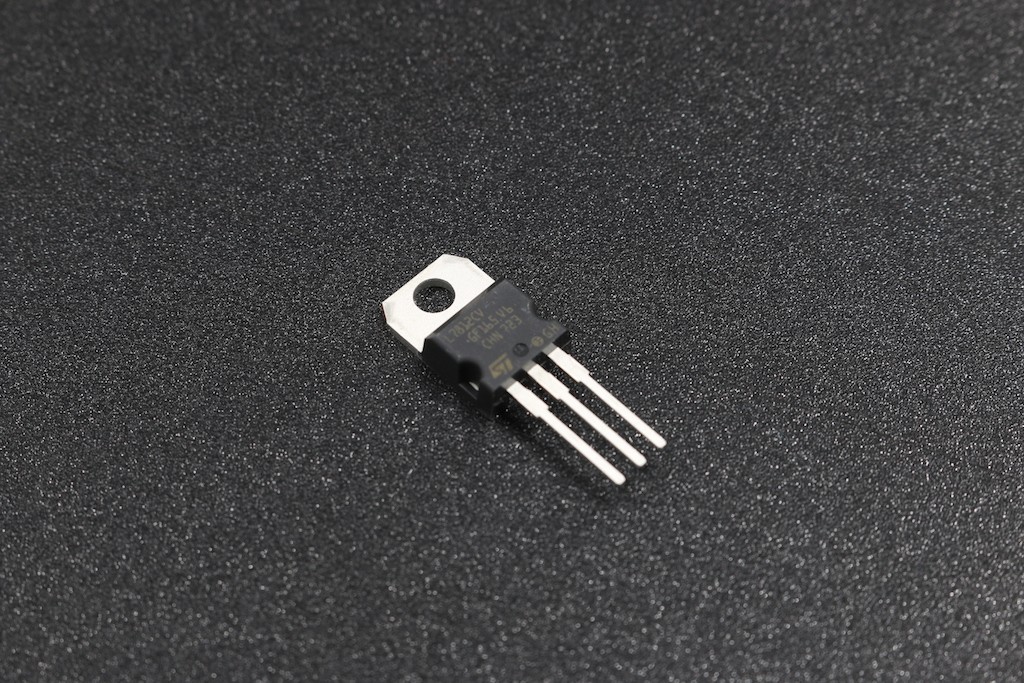

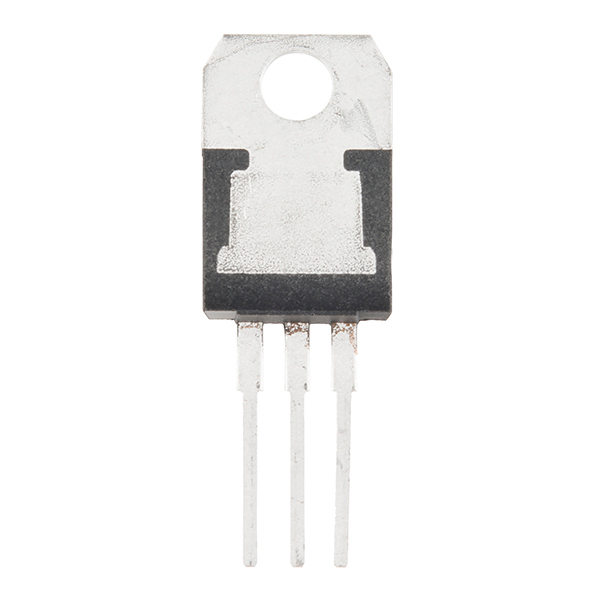

This is the basic L7812 voltage regulator, a three-terminal positive regulator with a 12V fixed output voltage. This fixed regulator provides a local regulation, internal current limiting, thermal shut-down control, and safe area protection for your project. Each one of these voltage regulators can output a max current of 1.5A.

Features

• Output Voltage: 12V
• Output Current: 1.5A
• Thermal Overload Protection
• Short Circuit Protection
• Output Transition SOA Protection

Documents

Voltage Regulator Datasheet

Links:

http://jmp.sh/v/bH3ap9T5fdH4zNvT9aP6

Key Words:

Voltage Regulator – 12V, lm7812 voltage regulator, lm7812, 7812
