Product details

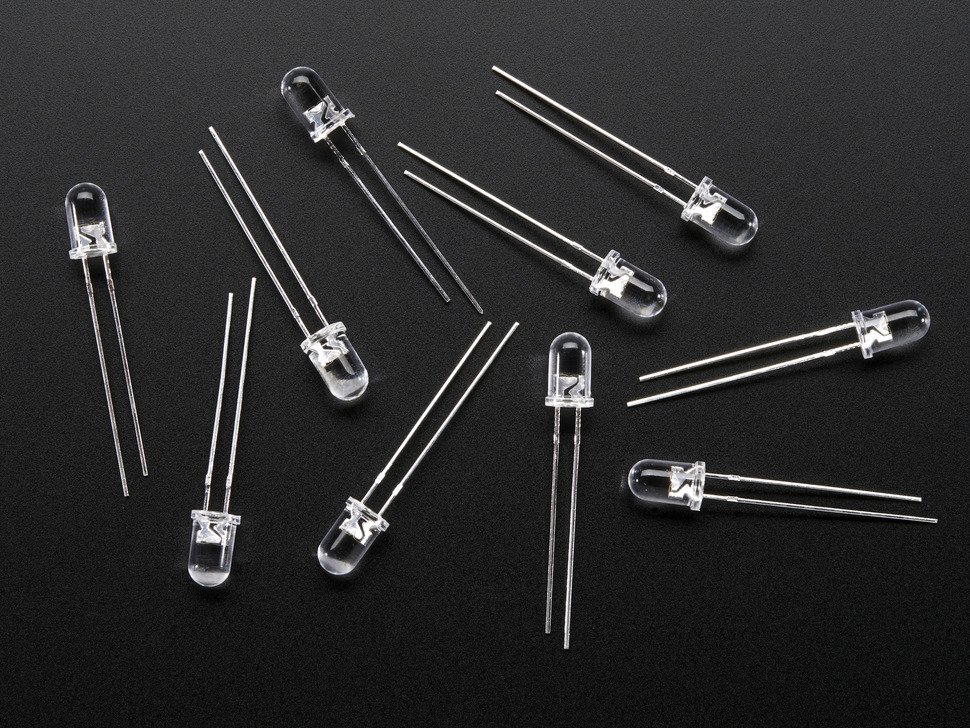

This is a simple 5mm LED with an interesting array of applications. This UV LED can be used for counterfeit detection (bills, credit cards, documents, etc), sterilization, pesticide, black lights, sun burns, the list goes on. Please wear eye protection when using these LEDs.
Specifications
- Forward Voltage: 3.4V typical @ 20mA
- Maximum Forward Current: 25mA (20mA recommended)
- Maximum Reverse Voltage: 5V
- Maximum Reverse Current: 10uA
- Brightness: 350mcd typical
- Wavelength: 400nm
- Operating Temperature Range: -40ºC to 85ºC
- Diameter at Base: 5mm
- Height of LED: 9mm
- Length of Pins: 17mm
- Weight: 0.2g.
